Technical Specifications

Product Type: 4G LTE/5GAntenna

Frequency Range: 600–6000 MHz

Network Support: 4G LTE / 5G NR sub-6GHz

Gain: 6 dBi

Polarization: Vertical

Impedance: 50Ω

VSWR: ≤ 1.5

Radiation Pattern: 360° Omnidirectional

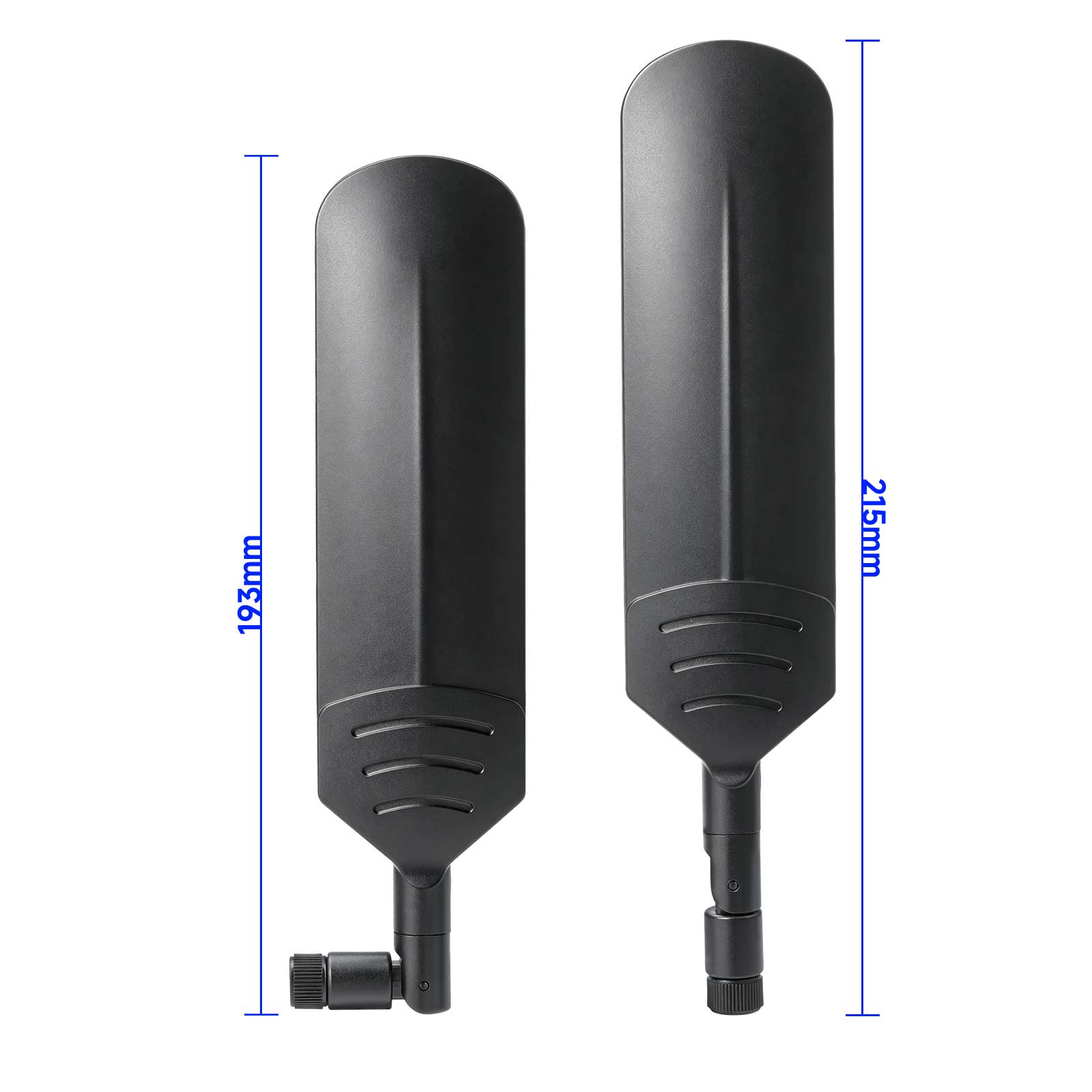

Antenna Total Length: 215mm

Housing Material: ABS

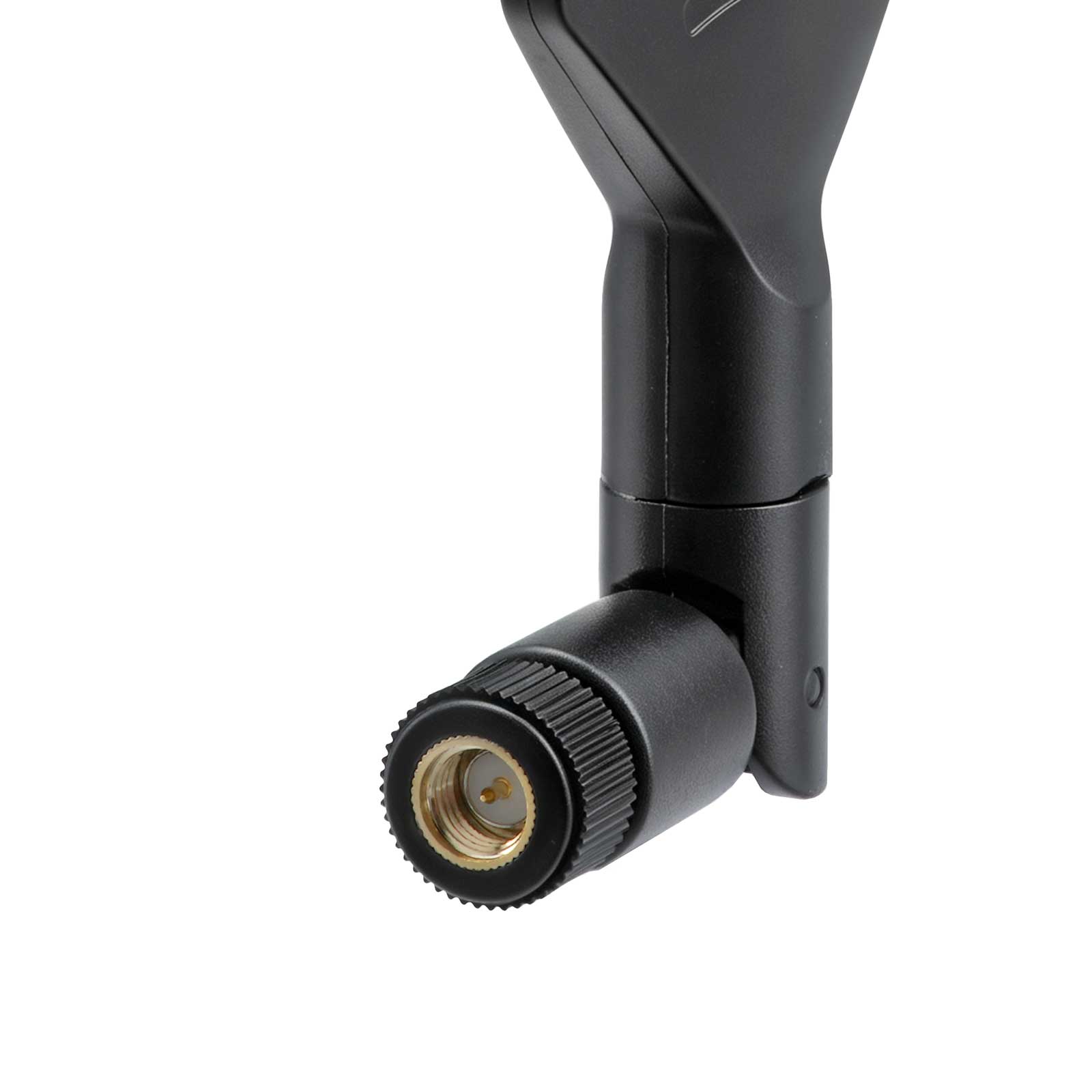

Connector: SMA Male (Center Pin)

Antenna Color: Black

Operating Temperature: -40°C ~ +85°C

Storage Temperature: -40°C ~ +85°C

Quantity: 1-Pack

Application: Receive and transmit universal

Product Features

Ultra-wideband 600–6000MHz frequency coverage

Supports both 4G LTE and 5G NR sub-6GHz networks

6dBi gain with 360° omnidirectional pattern

VSWR ≤ 1.5, 50Ω impedance

Standard SMA male connector (center pin)

High-impact ABS housing, lightweight design

Wide temperature tolerance: -40°C to +85°C

Screw-on installation, no tools required

Receive and transmit universal

Applications

4G LTE / 5G cellular router and modem antenna upgrade

5G NR gateway and CPE external antenna ports

Mobile hotspot and MIFI signal enhancement

MIMO dual-antenna deployments

Signal booster and repeater antenna replacement

IoT and M2M gateway antenna

Industrial wireless data terminal

Spare or replacement antenna for SMA-female devices

Package Contents

1 × 4G LTE/5G Antenna (6dBi, SMA Male, 600-6000MHz)
