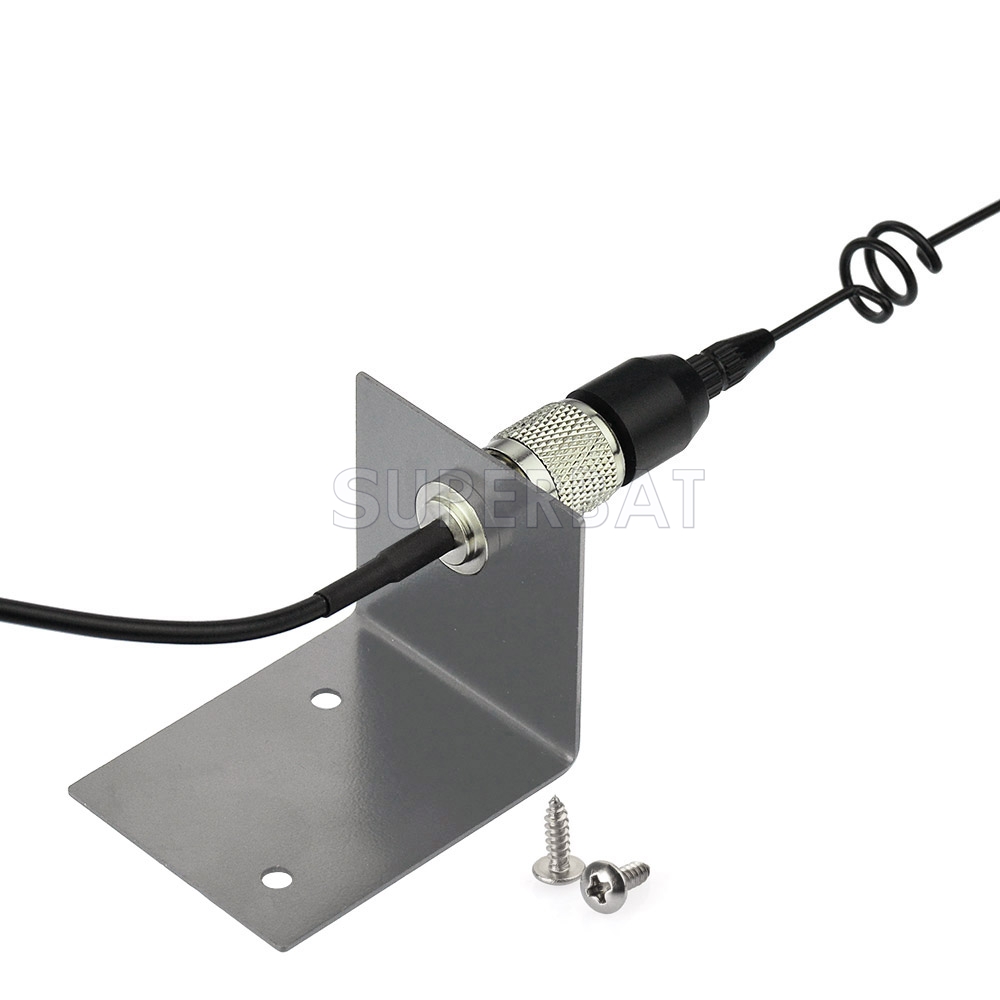

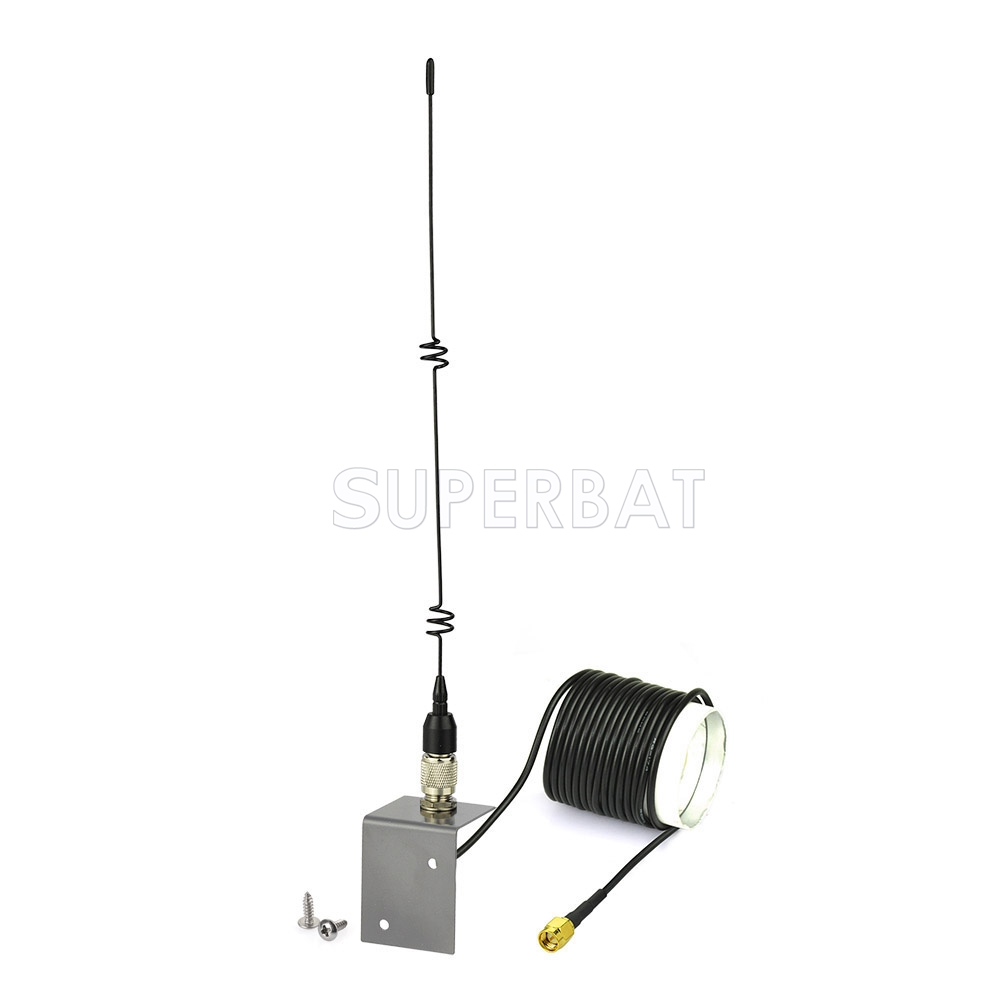

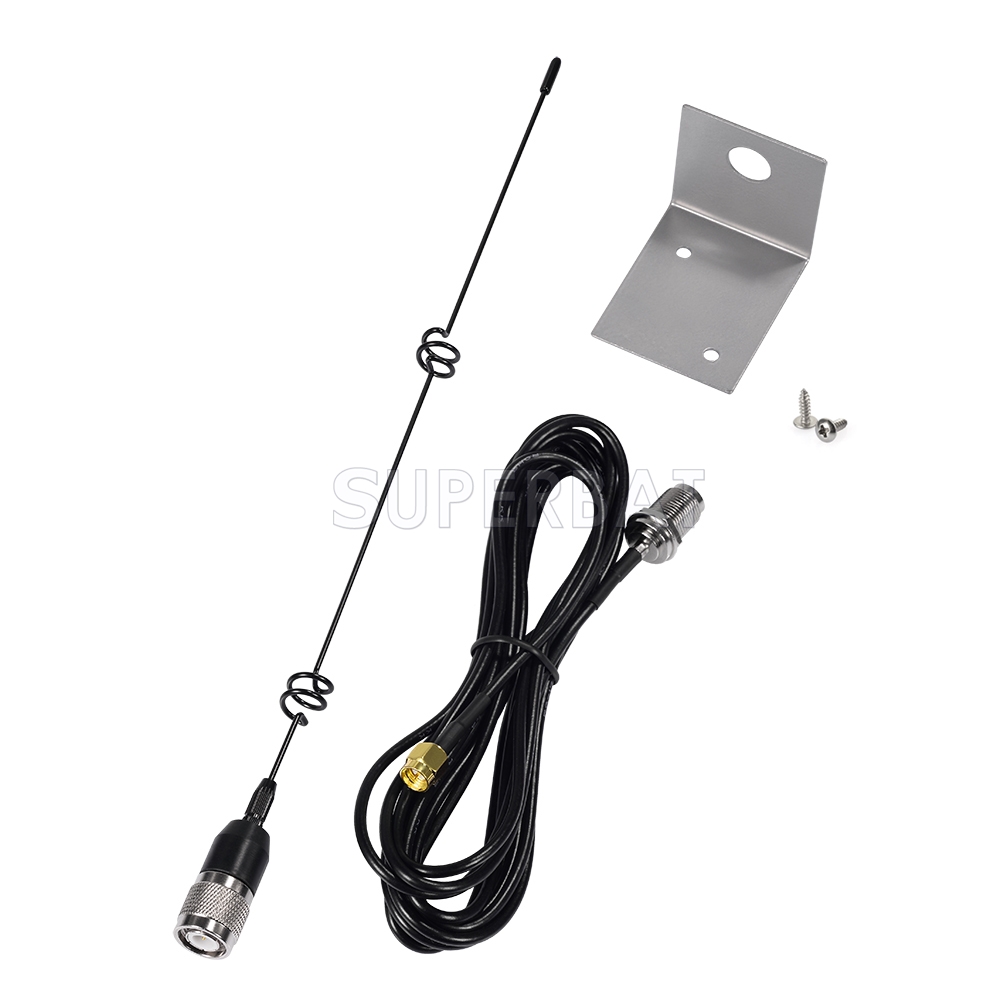

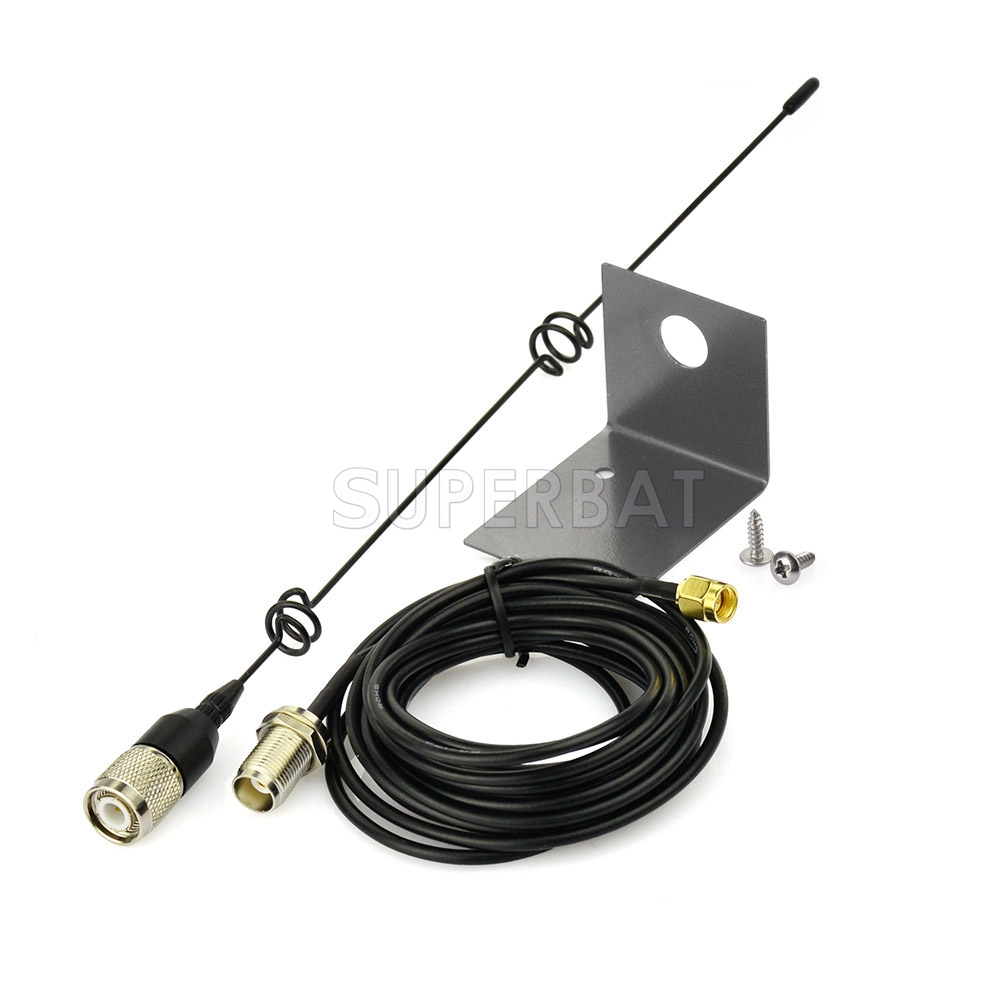

5Dbi 3G/GSM/UMTS/HSUPA/HSDPA antenna for Wireless& Devices 3g antenna
Unit Price: $12.90
sku:3A1-2174-S01SP-050-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $12.90 $12.25 $11.09 $9.42 ASK
saving% 0% 5% 14% 27% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 5dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 65g

Description :

100% Brand New High Qualityl

Specification:

Frequency Range(MHz) 850-960/1710-2170
   GSM/GPRS/EDGE 850/900/1800/1900MHz
   HSUPA/HSDPA/UMTS 2100MHz/900MHz
   CDMA 1900 MHz



Bandwidth(MHz):90/280



VSWR ≤1.5


Gain: 5dbi



Max Input power(W): 60



Input Impedance(Ω): 50



Polarization Type: Vertical



Antenna Length(mm):


Cable Length(mm): 2M, 3M(default),5M


Cable Type RG 174 default

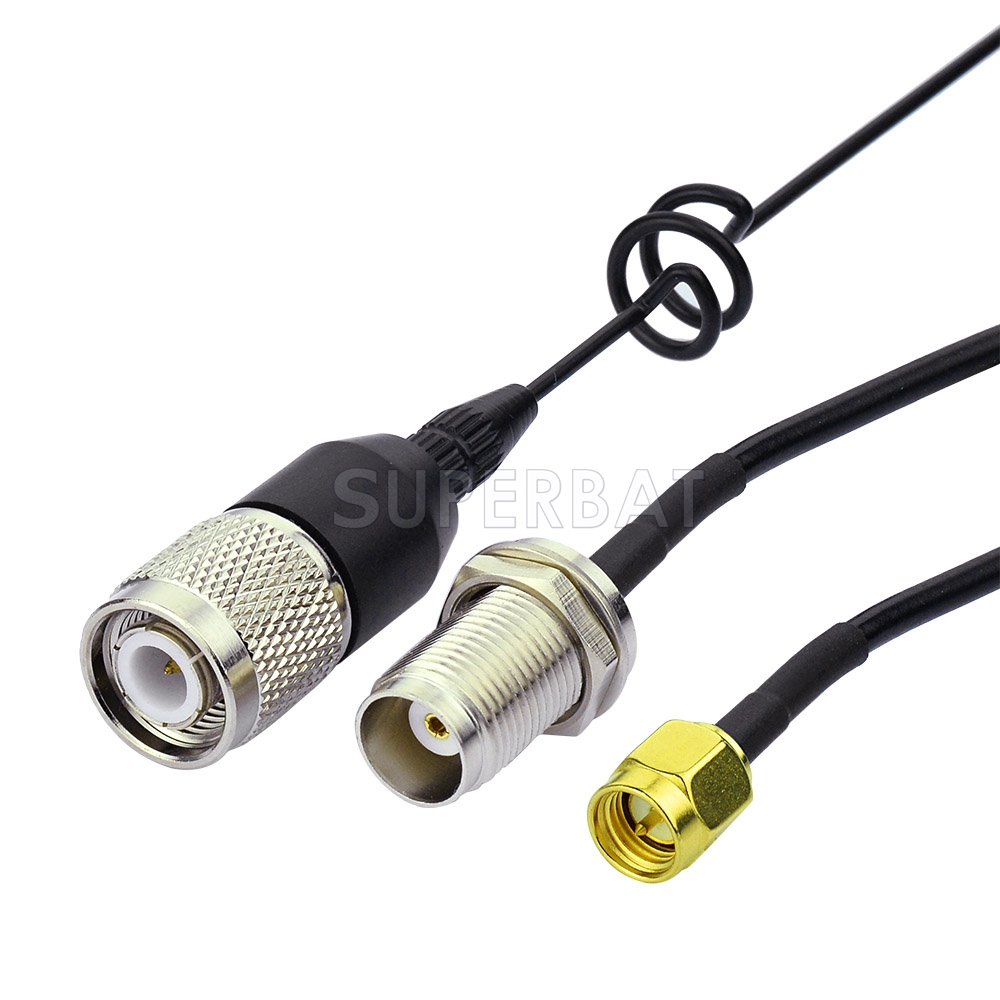

Extension Connector Type: SMA male straight as default, CRC9/SSMB/TS9/MS147/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card.....etc,Merlin connector, Huawei connector, Option connector,Sierra Wireless connector etc.please give us notes if the connector is chosen !


 Housing: mount


 Storage Temperature: -45'c to +75'c
 Operating Temperature: -45'c to+75'c

  Weight: 65g


 Attention : Please check your device connector to make sure this antenna can meet it
