Product Type: 5.8GHz FPV Omnidirectional Drone Antenna

Frequency Range: 4900–6100 MHz

Band Coverage: 4.9GHz band + 5.8GHz FPV band (5645–5945MHz)

Gain: 4 dBi

Polarization: Vertical

Radiation Pattern: 360° Omnidirectional

VSWR: ≤ 1.5

Impedance: 50Ω

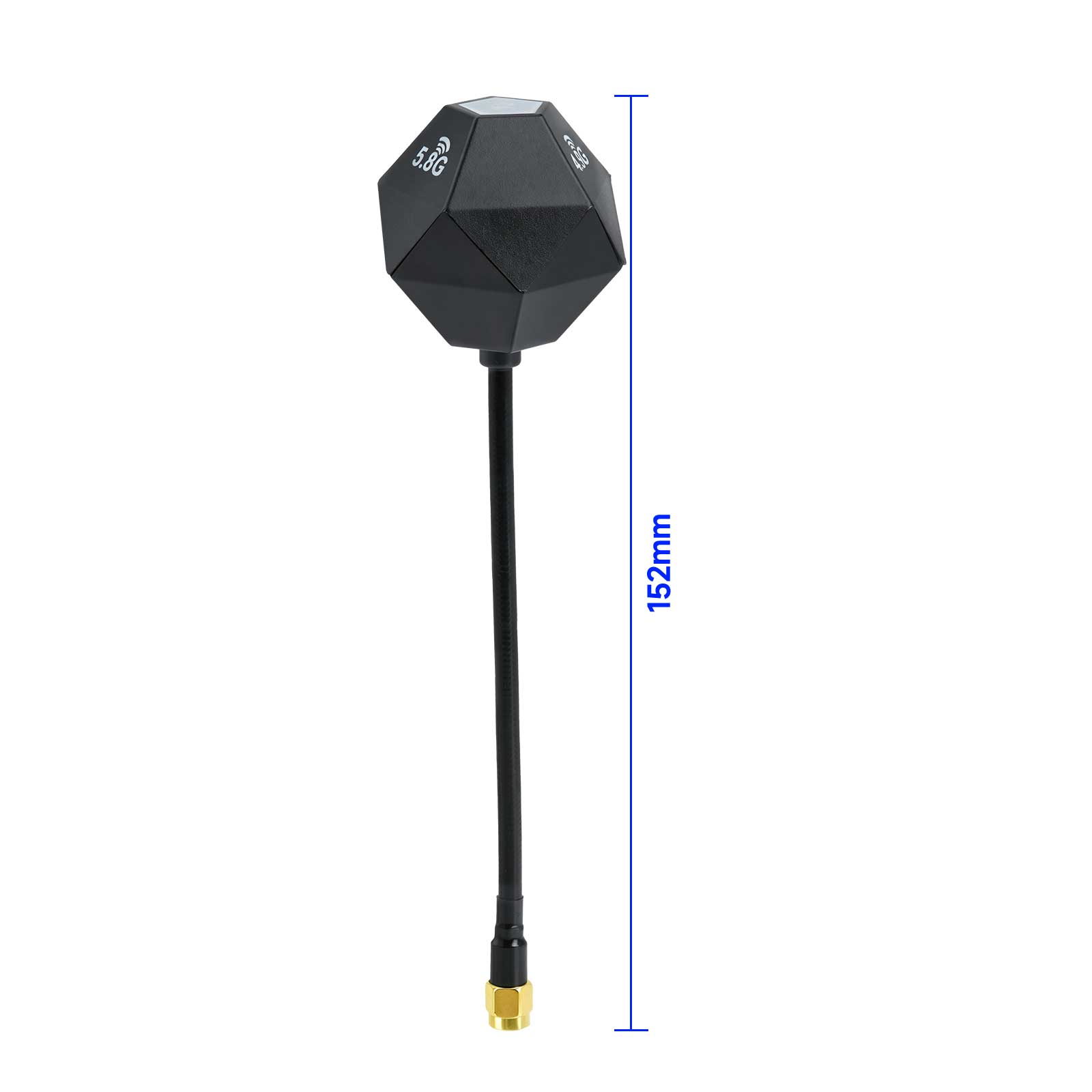

Total Length: 152mm (including flexible cable)

Housing Material: ABS

Antenna Color: Black

Connector: RP-SMA Male (Center Hole, Gold-Plated)

Operating Temperature: -40°C ~ +85°C

Storage Temperature: -40°C ~ +85°C

Quantity: 1-Pack

Application: Receive and transmit universal

Product Features

4900–6100MHz wideband 5.8GHz FPV coverage

Flexible cable section — adjustable angle, crash-impact absorption

High-impact ABS housing, lightweight design

Gold-plated RP-SMA male connector

VSWR ≤ 1.5, 50Ω impedance

Receive and transmit universal

Wide temperature tolerance: -40°C to +85°C

1-pack for dual-antenna devices and spares

Applications

FPV drone radio controller antenna replacement or upgrade

FPV goggles dual-antenna upgrade

5.8GHz VTX / VRX video link antennas (RP-SMA ports)

Ground station and long-range receiver setups

RC airplane and FPV wing video transmission

5.8GHz WiFi router and device antenna (RP-SMA port)

Spare antennas after crashes

Package Contents

1 × 5.8GHz FPV Drone Antenna (4dBi, RP-SMA Male, 4900-6100MHz, 152mm)
