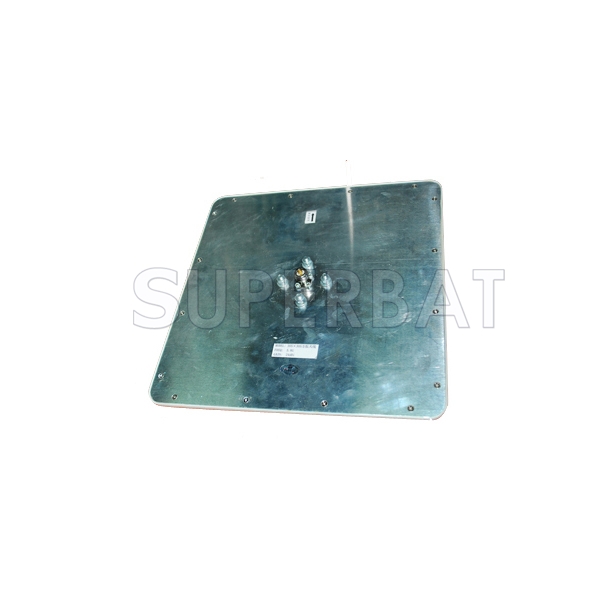

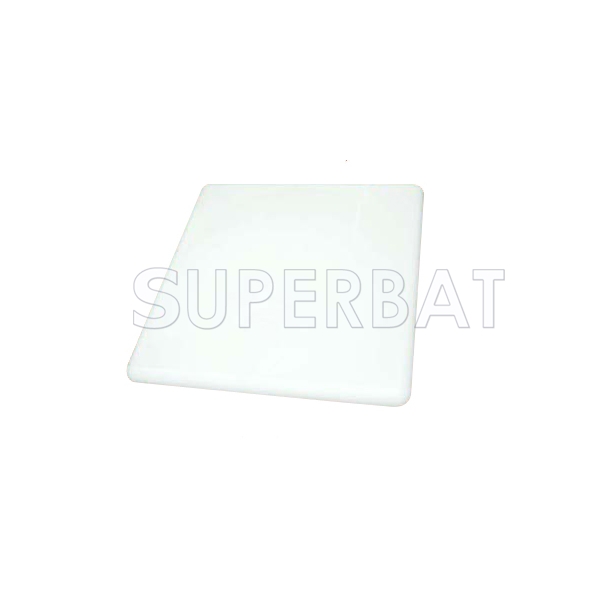

5.8GHz 23dBi WiFi Directional Panel Antenna N female
5.8GHz 23dBi WiFi Directional Panel Antenna N female
Unit Price: $109.99
sku:WAP-1265-N01SJ4-230
Real Time Availability
Stock: 10000
Quantity: Units

Type: WIFI Antenna Center Frequency: 5.8GHz Connector Series: N Connector Gender: Jack Straight Impedance: 50 Nominal Gain: 23dbi V.S.W.R: ≤1.5 Antenna Size: 120mm*80mm*75mm

Technical Specifications
Frequency Range:5.8 GHz
Input Impedance:50 Ohm
V.S.W.R.:<1.5
Gain:23 dBi
Polarization:Vertical, Linear
Max. Input Power:50 W

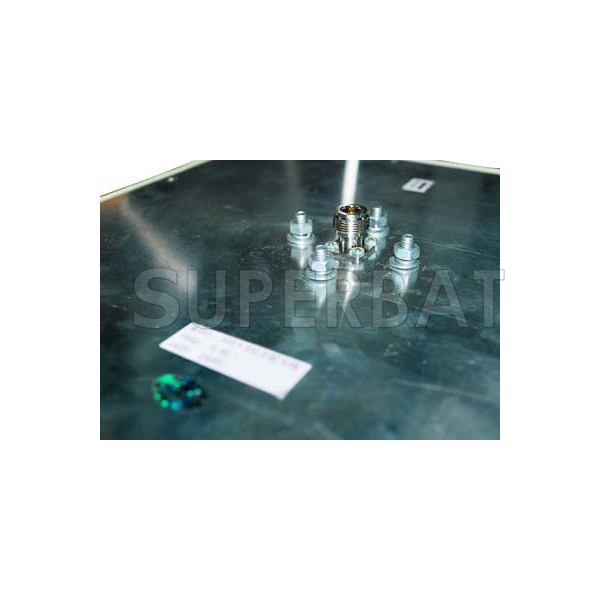

Connector location:Back
Connector:Standard N Female Connector

Mechanical Specifications
Dimension:305mm x 305mm x 20mm (12” x 12“x 0.6”)
Weight:Approx. 1.0kg
Radiating   Material:CuAg
Reflector Material:Electrolysis Board
Radom material:ABS
Mounting bracket:120mm x 80mm x 75mm
Horizontal Beamwidth:13 degrees
Vertical Beamwidth:17.5 degrees
