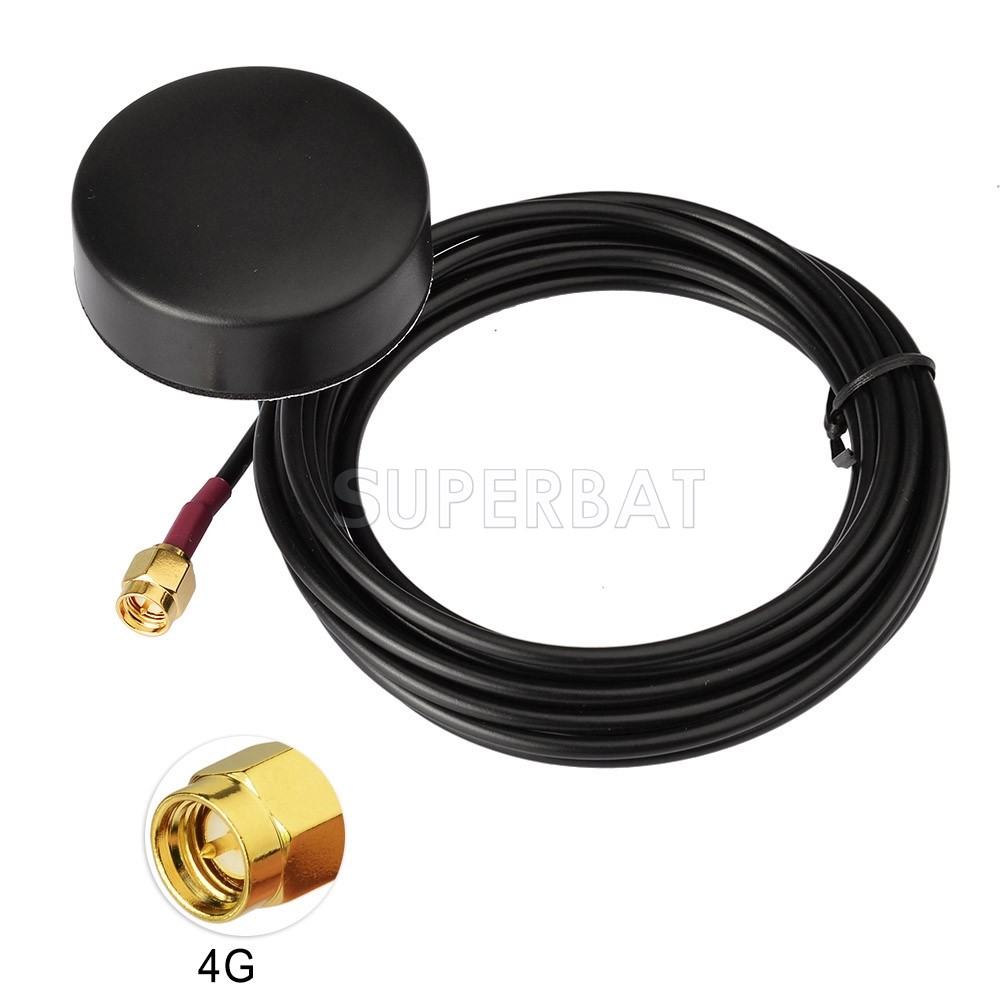

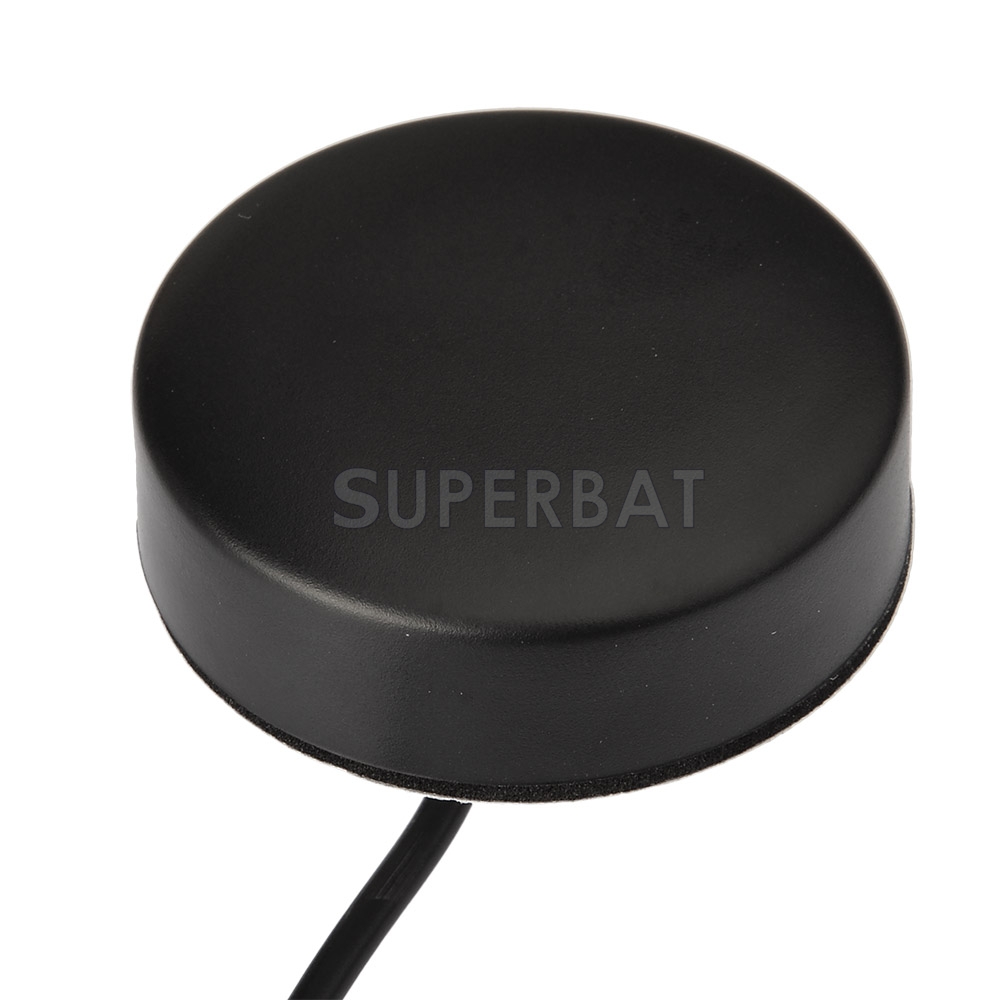

4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
Unit Price: $6.70
sku:4A3-0150-S01SP-030-300-JCG003L
quantity 1 - 9 10 - 99 100 - 499 500+
Price Each $6.70 $6.03 $5.43 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 500
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Frequency: 698~960/1710~2690MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 3dBi Radiation: Omnidirectional V.S.W.R: <3.0 Cable Type: RG174 Cable Length: 3M Weight: 63g

4G LTE Thru Hole Screw Mount 3dBi Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System

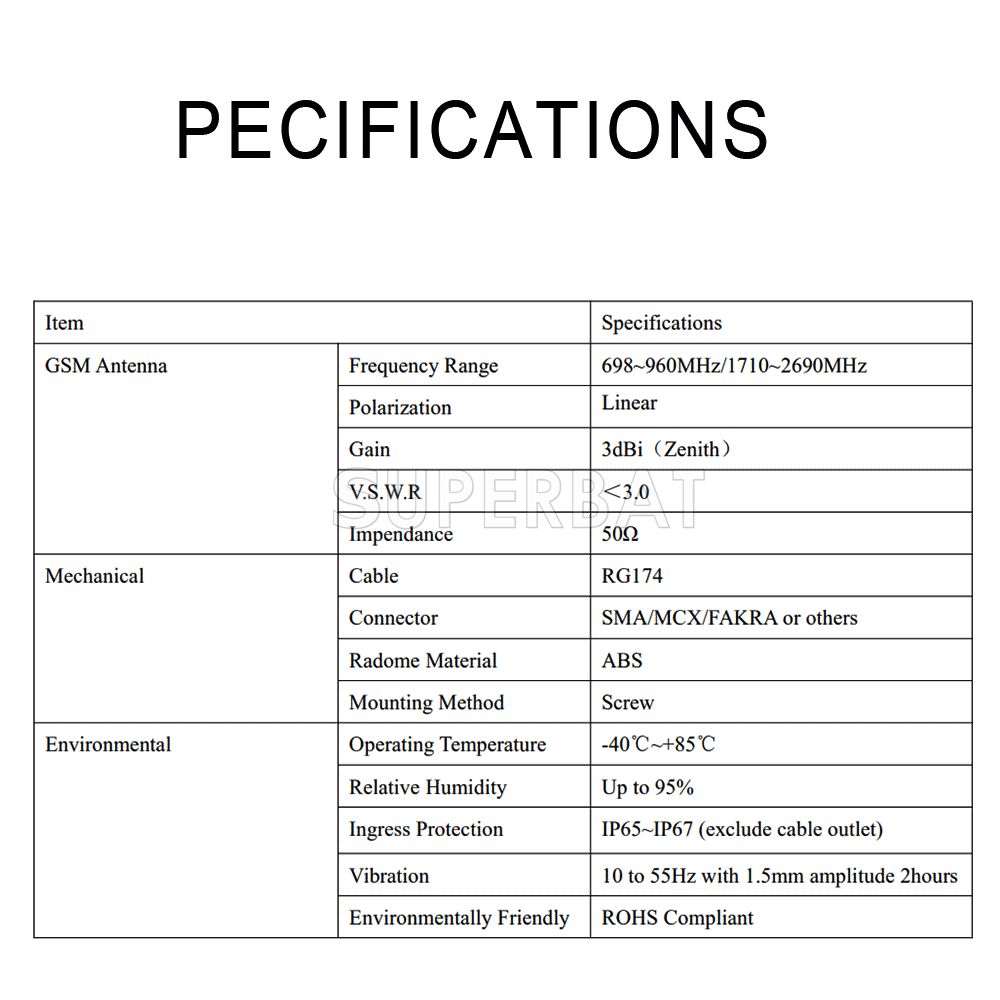

4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2690MHz

Polarization: Linear

Gain: 3dBi(Zenith)

V.S.W.R: <3.0

Impendance: 50Ω

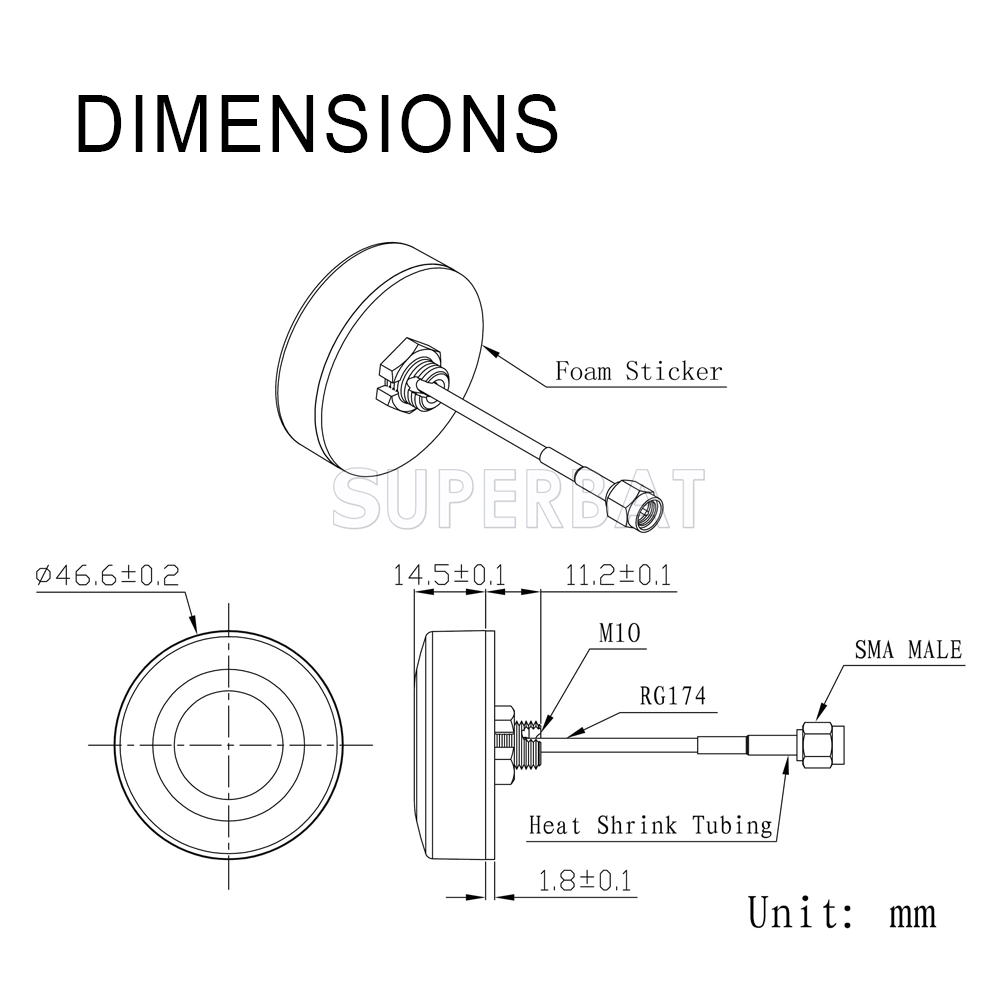

Mechanical:

Cable: RG174

Cable Length: 3 Meters

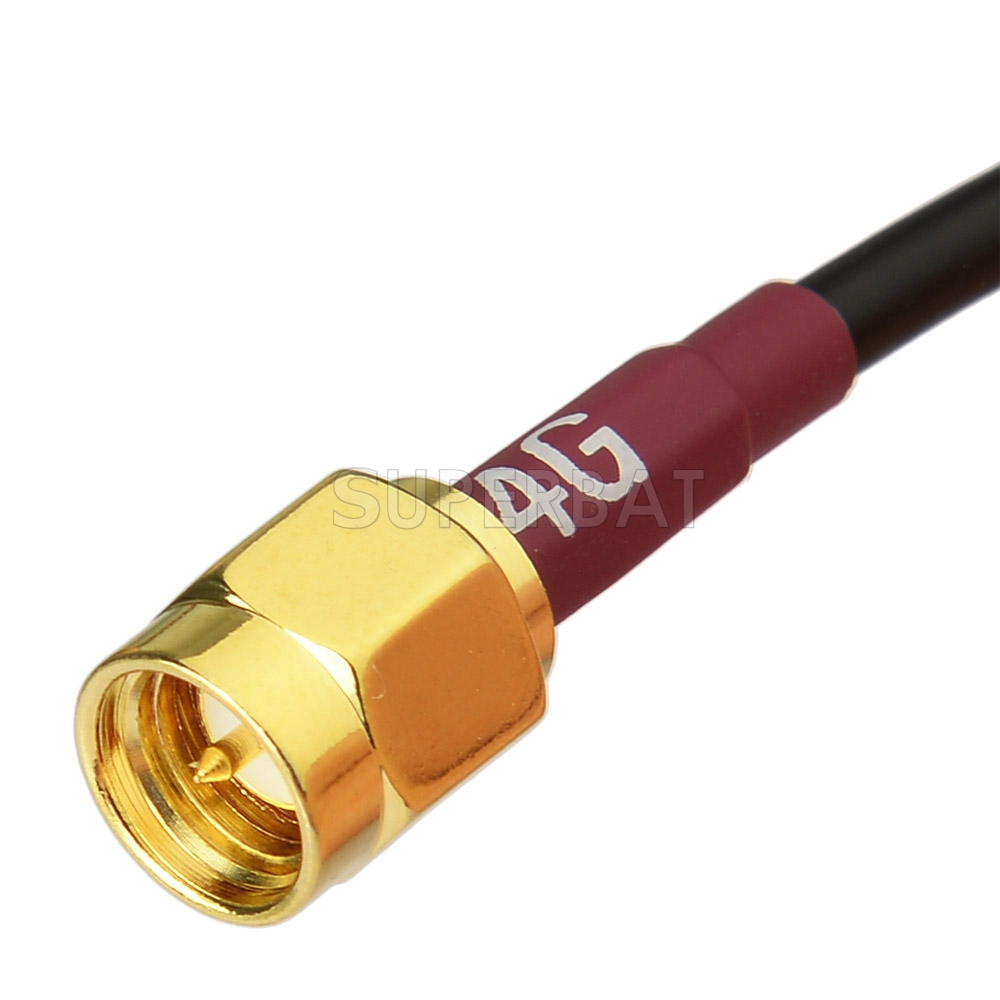

Connector: SMA Male Connector or customized

Material: ABS

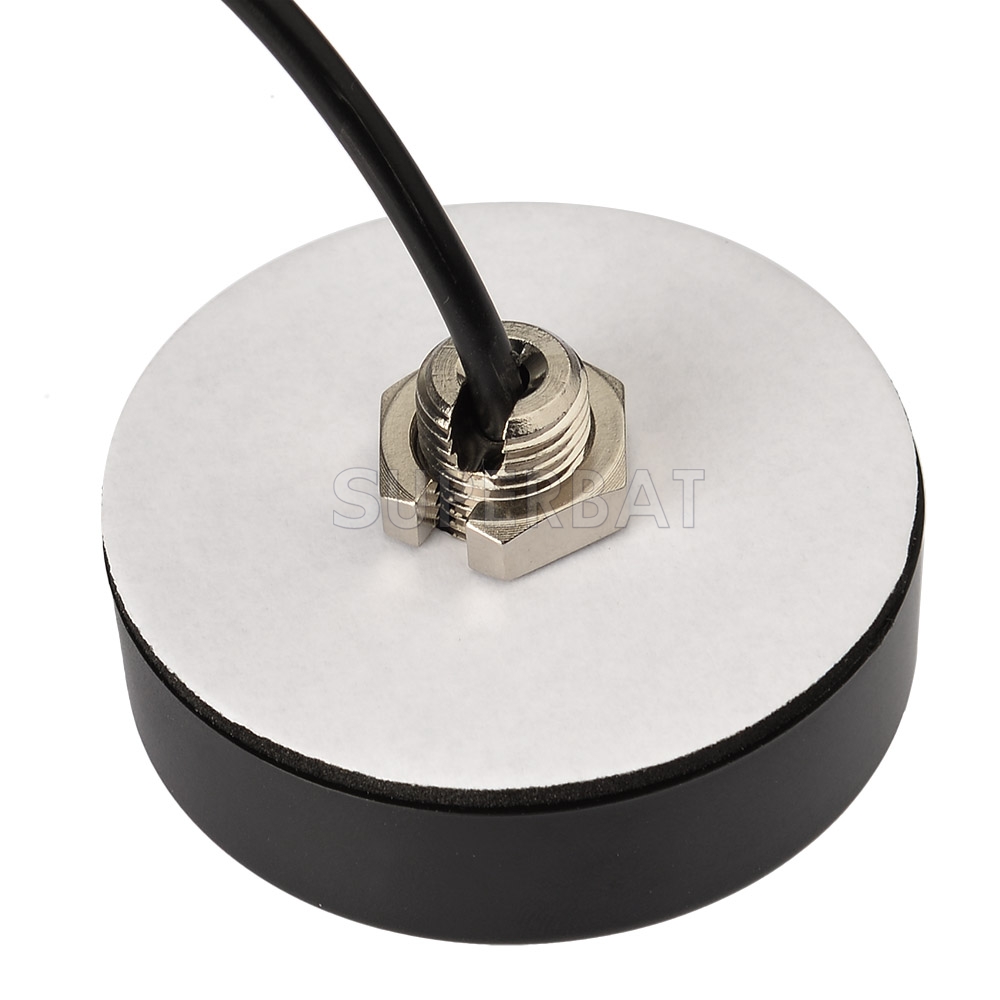

Mounting Method: Screw Thru Hole of 10mm Diameter

Weight: 63g


Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
