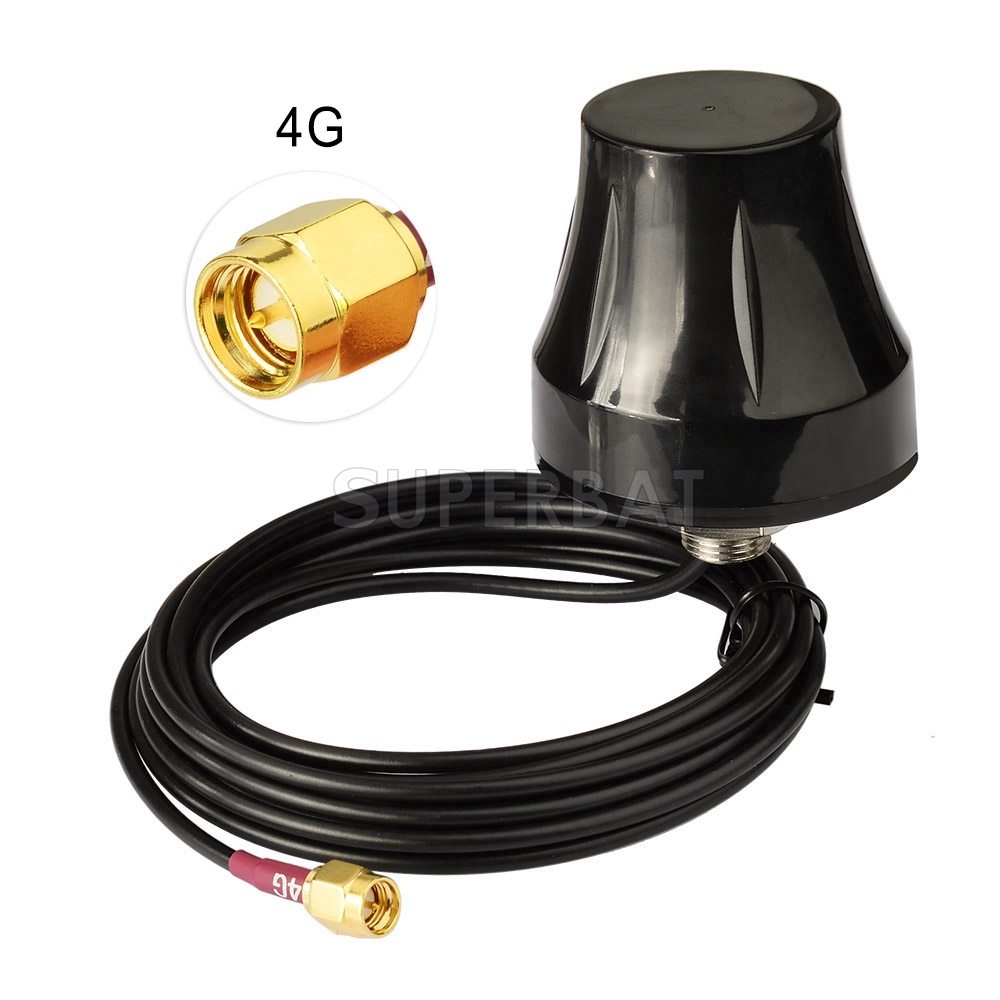

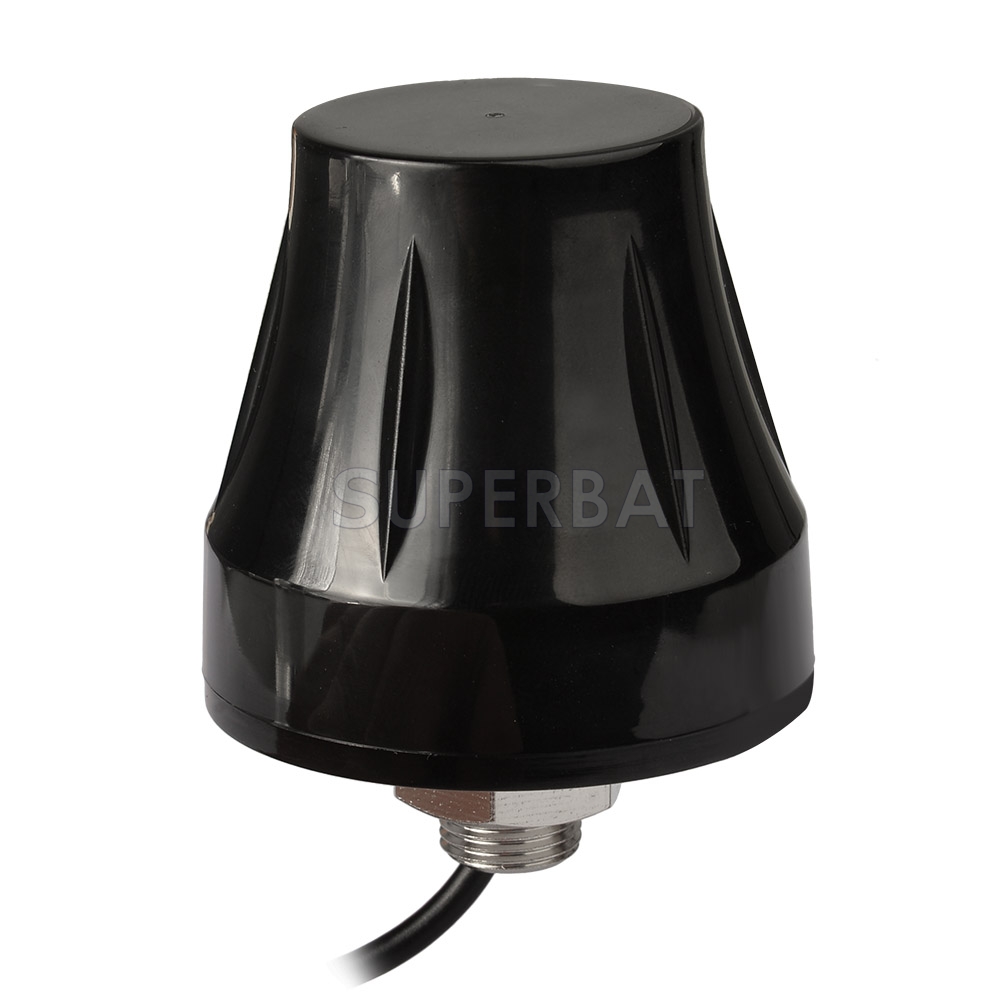

4G LTE Antenna Screw Mount Omni-directional 2dBi SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Mobile Cell Phone Booster System

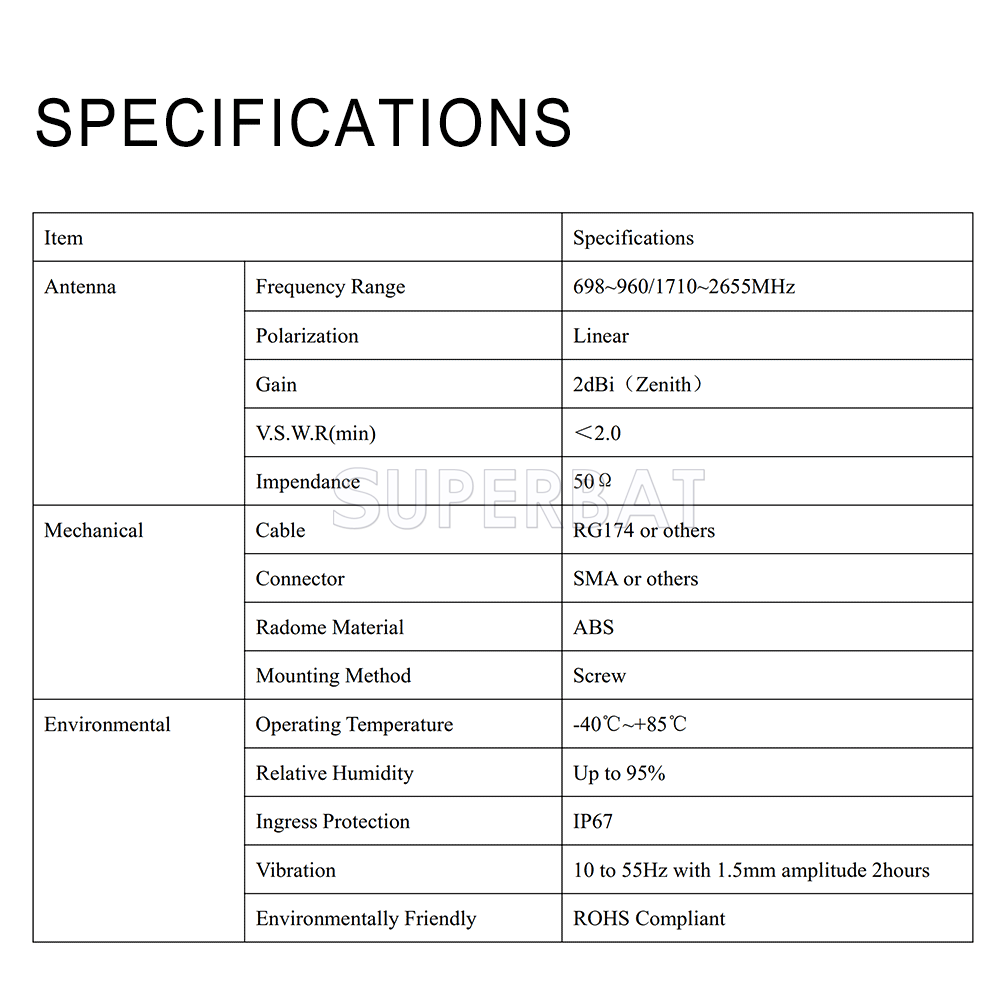

4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2690MHz

Polarization: Linear

Gain: 2dBi（Zenith）

V.S.W.R: ＜2.0

Impedance: 50Ω

Weight: 87g

Mechanical:

Cable: RG174

Cable Length: 3 Meters

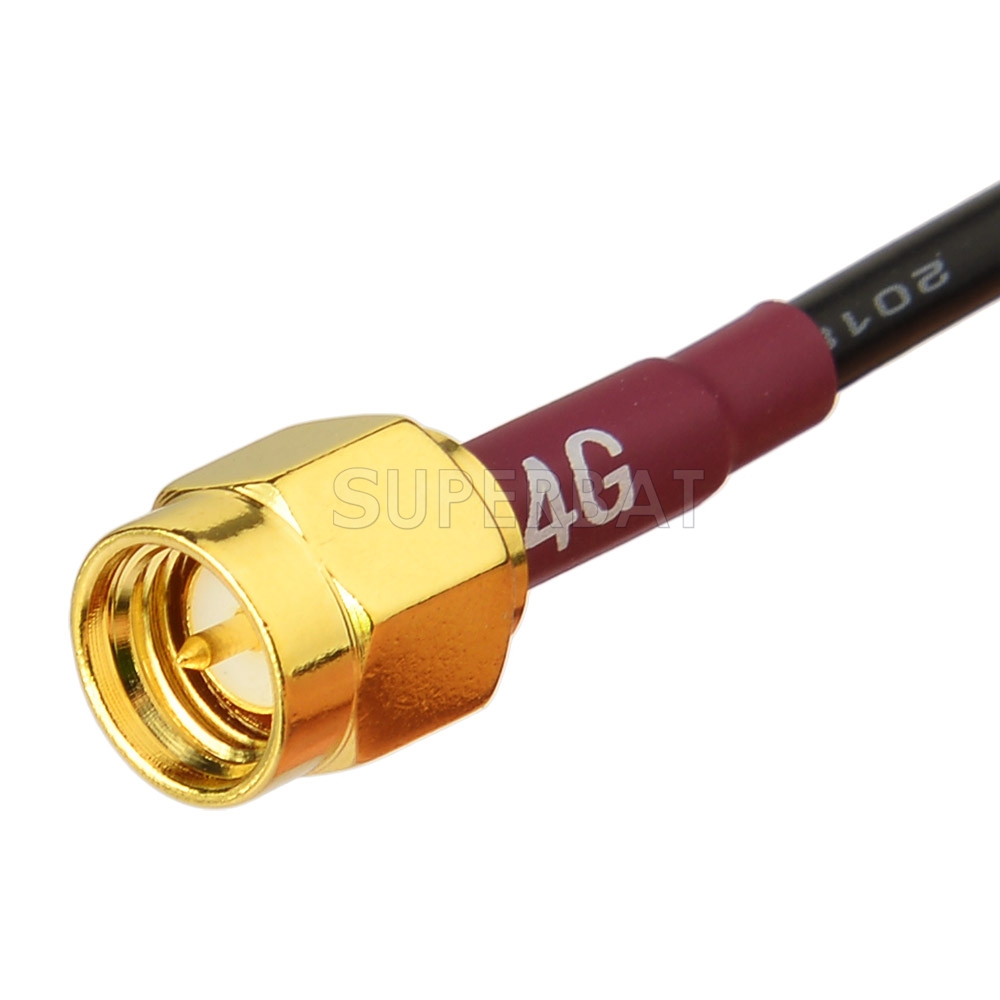

Connector: SMA Male Connector or customized

Optional connector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Material: ABS

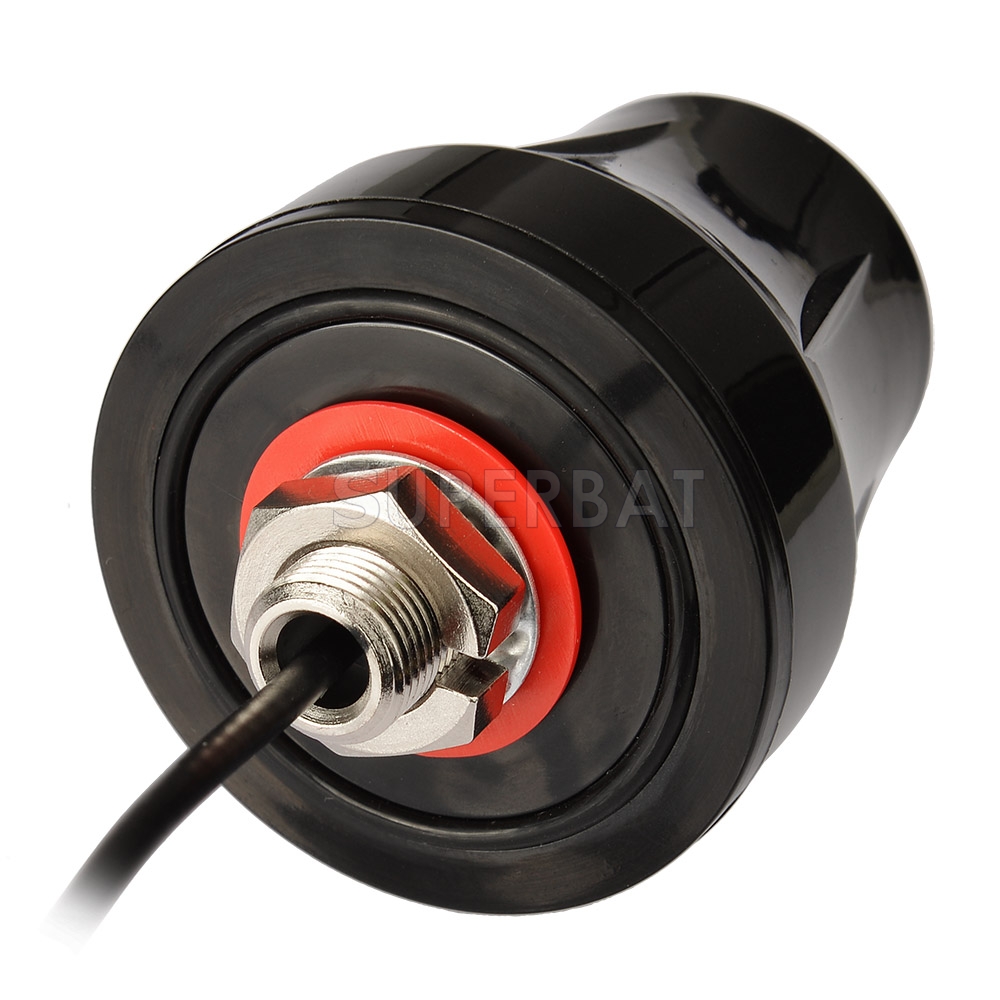

Mounting Method: Screw Thru-Hole of 12mm Diameter

Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
