Specifications:

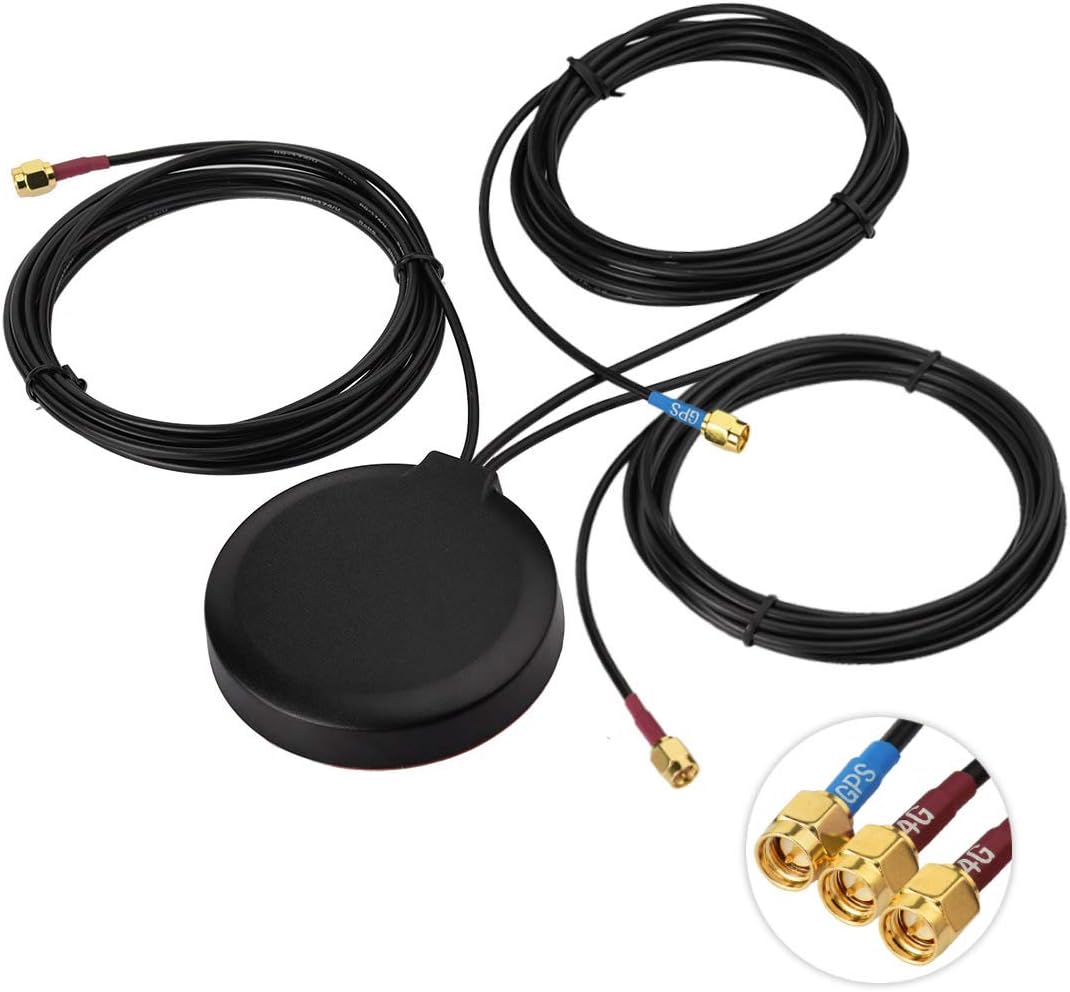

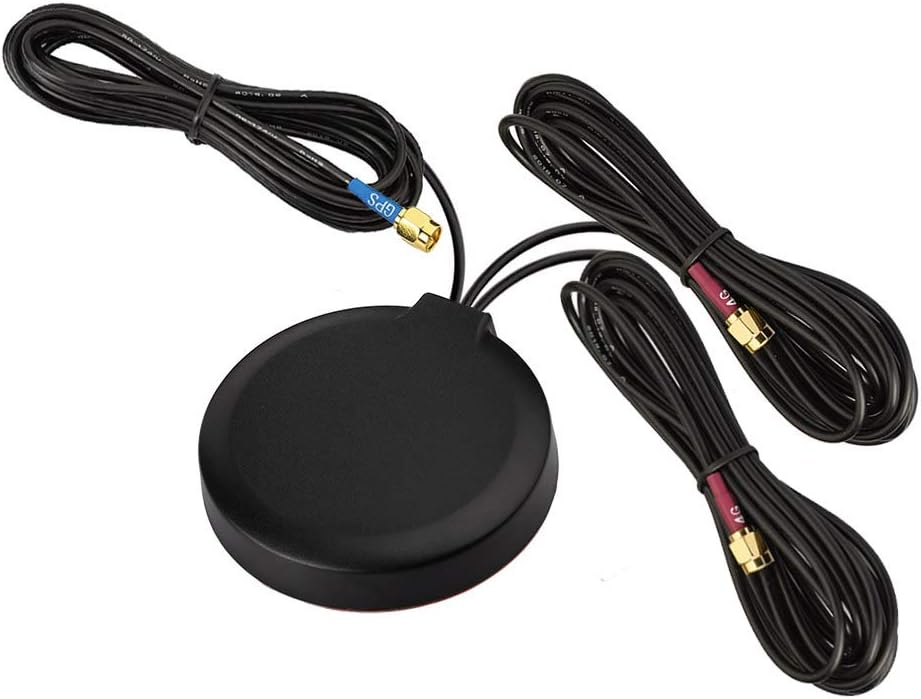

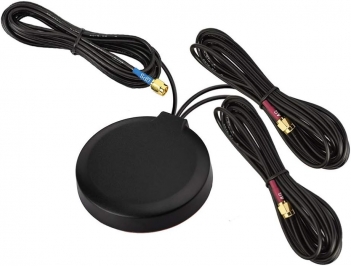

2 x 4G LTE Cellular MIMO + 1 x GPS Combined Antenna;
4G LTE Cellular Antenna Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: <2.0
Polarization: Linear
Gain: 5dBi
Impendance: 50Ω
GPS Antenna Specification:
Center Frequency: L1:1575.42MHz±1.023 MHz
Band Width: >9MHz
Polarization: RHCP
Gain: 2dBic(Zenith)
V.S.W.R: <1.5
Impendance: 50Ω
Axial Ratio: 3dB(max)
LNA Gain: 28±2dB
LNA Noise Figure: <1.5
LNA V.S.W.R: <2.0
LNA Supply Voltage: 2.2~5V DC
LNA Current Consumption: 5~15mA

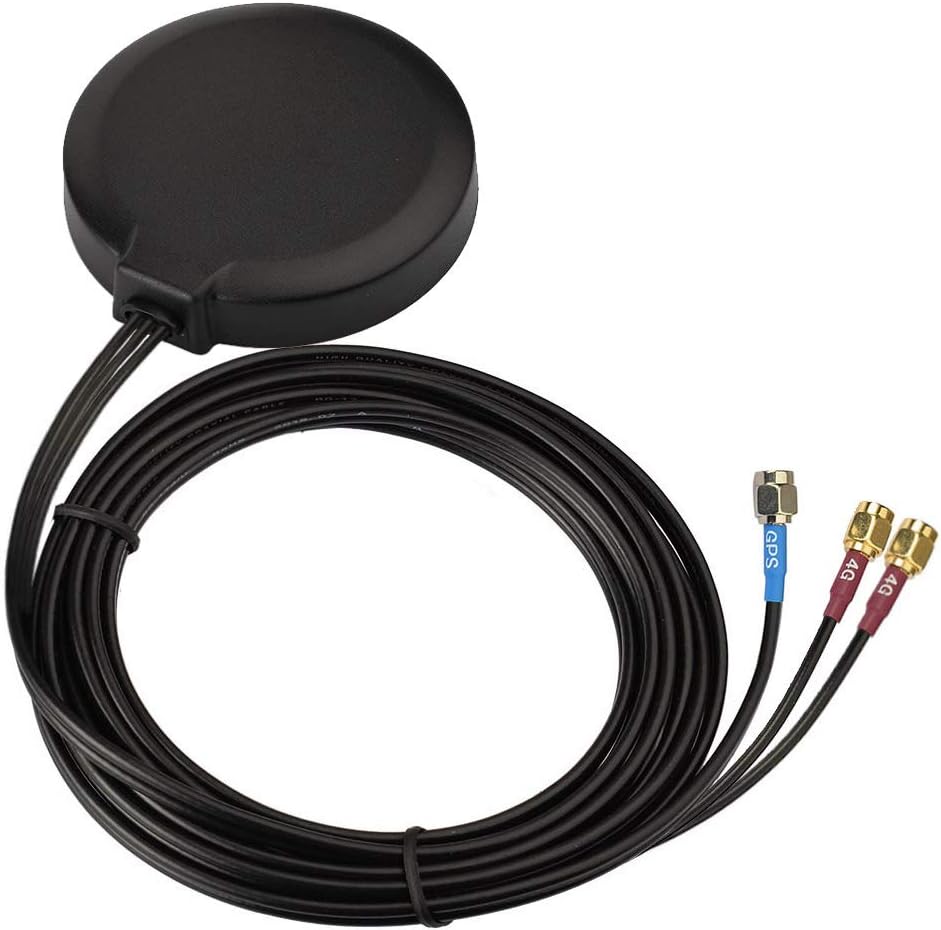

Mechanical:
Cable: RG174
Cable Length: 3 Meters

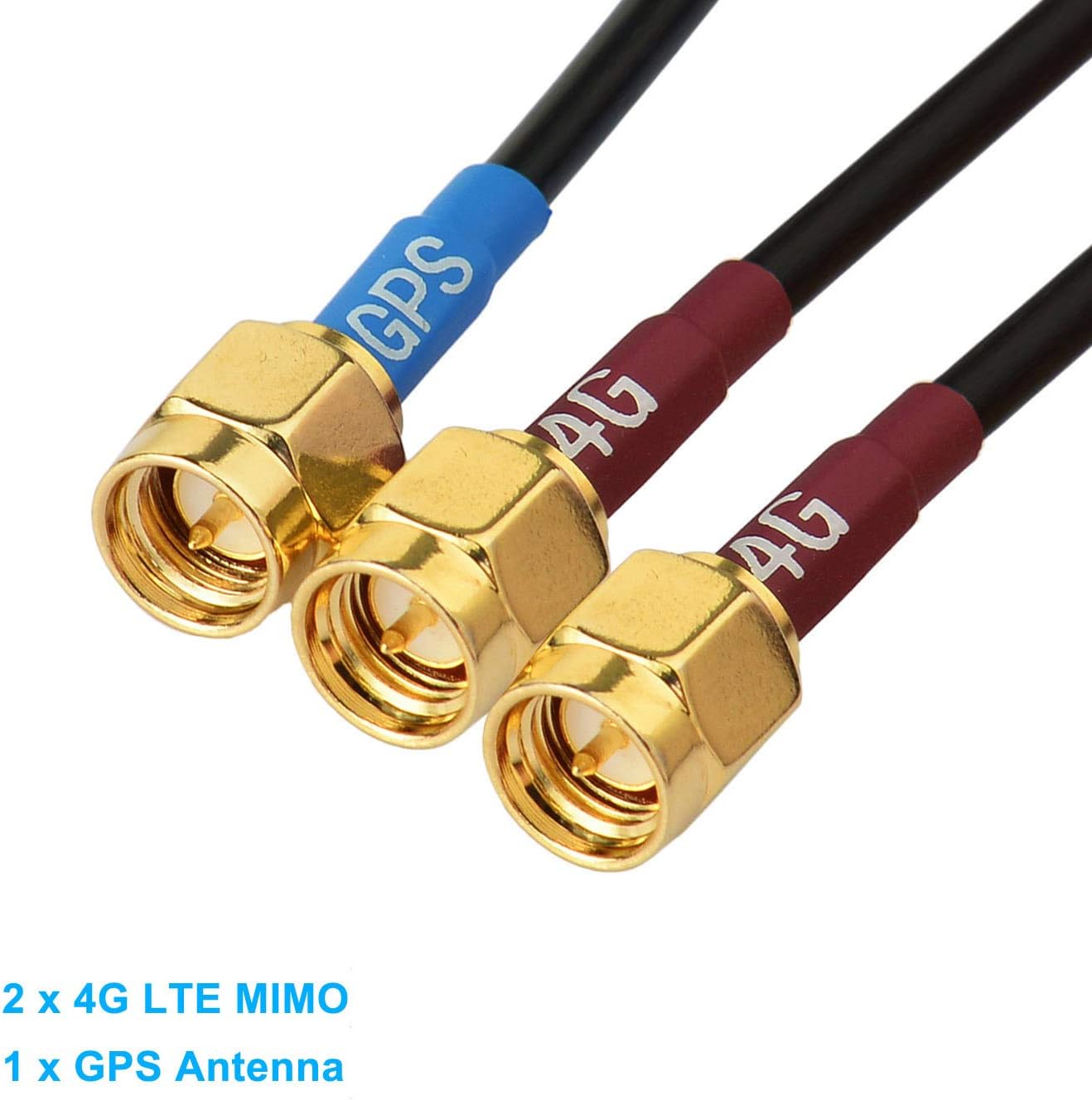

Connector: Dual SMA Male Connector
Material: ABS

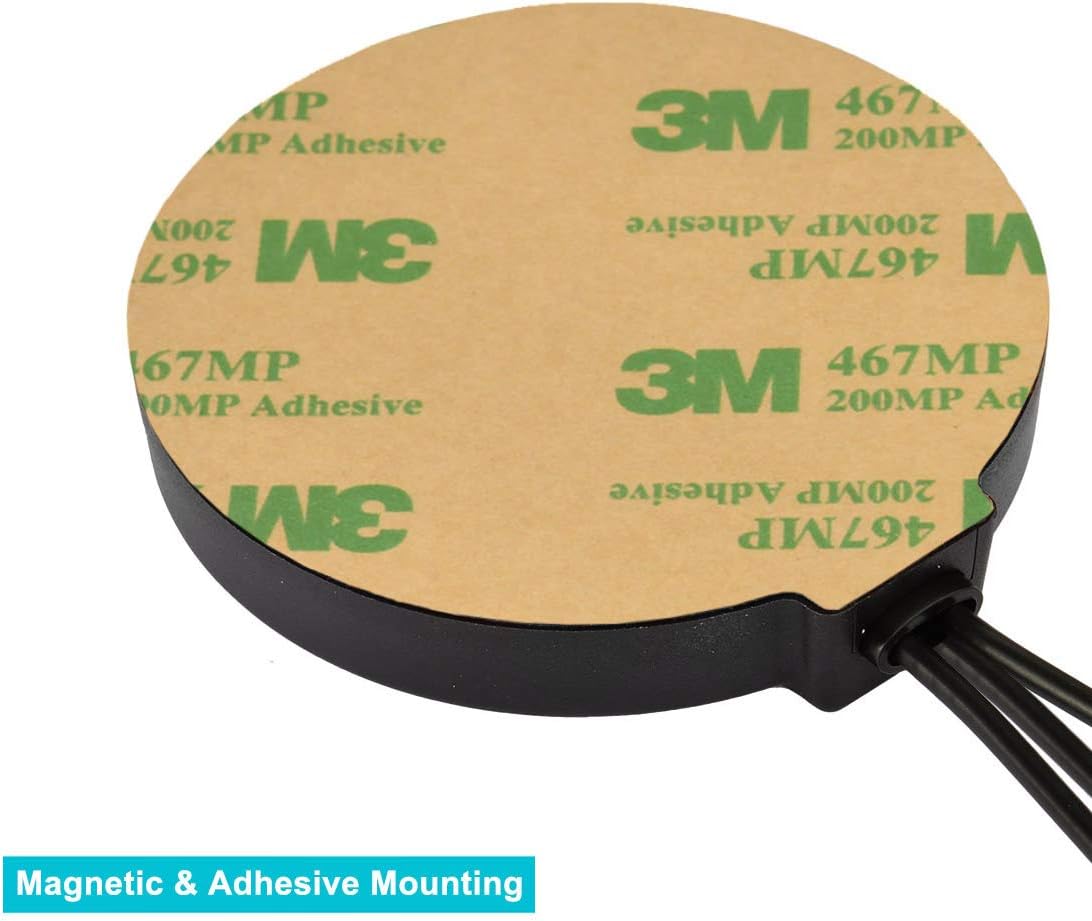

Mounting Method: Adhesive Magnetic Mounting
Package List: 1 x Antenna (As the Picture Shown)
