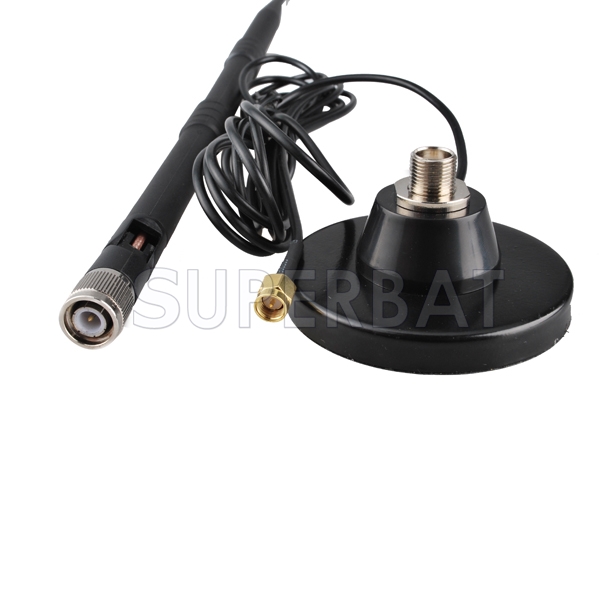

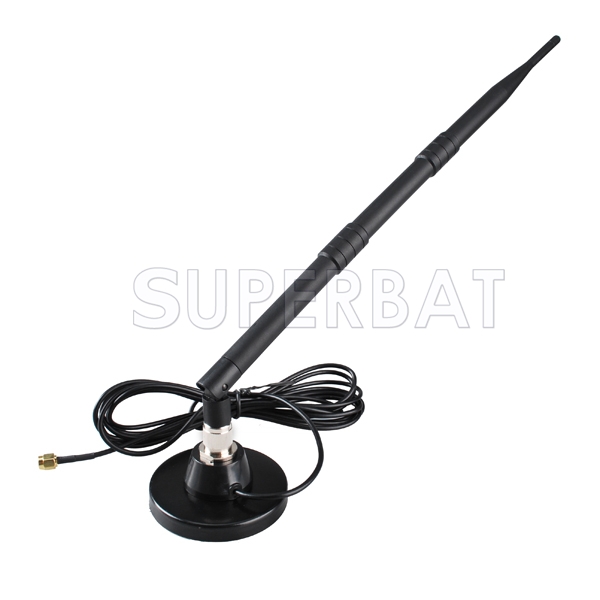

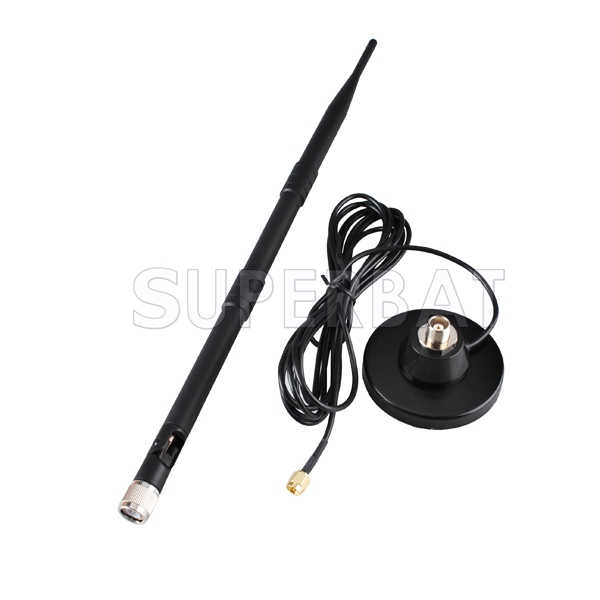

4G LTE Magnetic Antenna 2500-2700MHZ 9dBi SMA For Multi-range modems, Huawei and ZTE
Unit Price: $21.50
sku:LA1-2588-S01SP-090-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $21.50 $20.43 $17.42 $16.55 ASK
saving% 0% 5% 19% 23% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Magnetic Mount Network: 4G/LTE Antenna Frequency: 2500-2700 MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 9 dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 244g

9dbi gains
Frequency range : 2500-2700 MHz
VSWR< 1.5 : 1 max
Impedance :50 Ohm
Polarization Linear Vertical
Omnidirectional Antenna
Polarization Vertical
Diameter: 13.5mm
Antenna connector: TNC male
Base connector: TNC female
With 3 meter cable
Cable Connector: SMA or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Colour: black
Mounting:Magnetic Base
Cable: RG174
Weight:244g
Working Temperature : -20~+55 deg C
