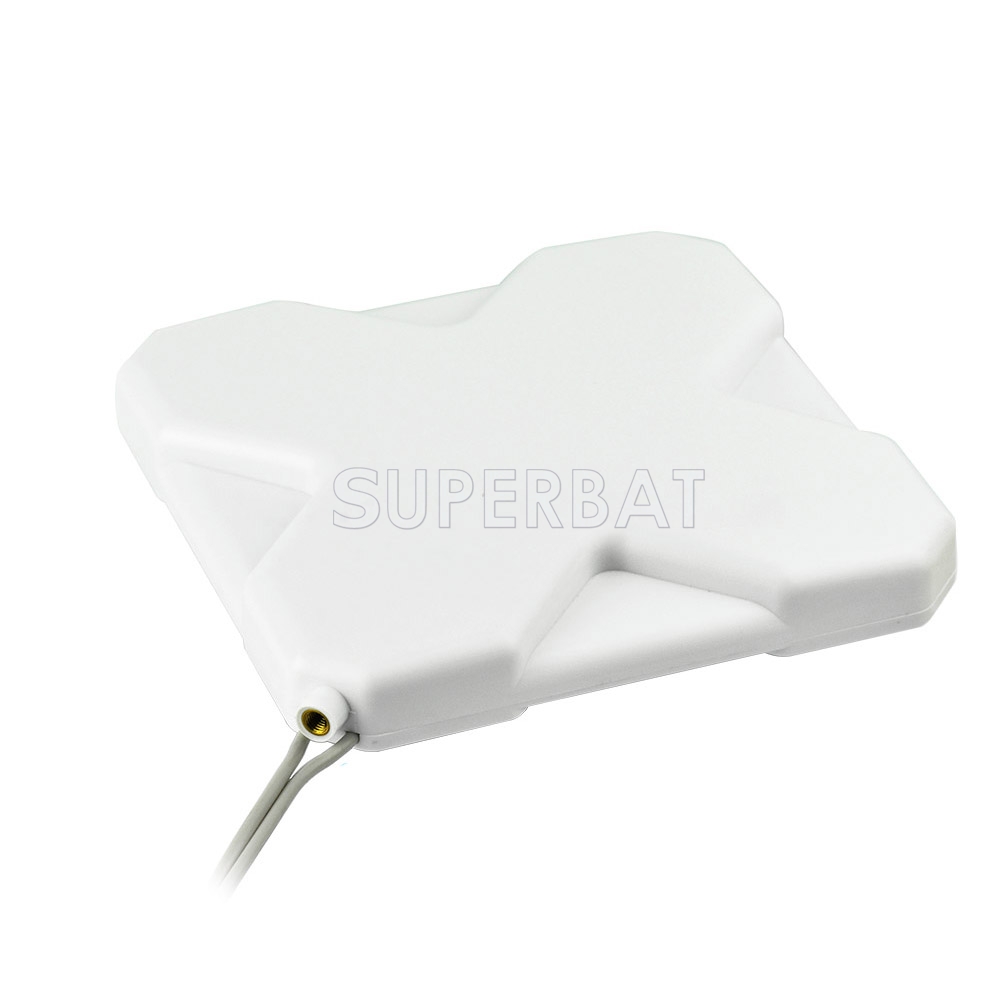

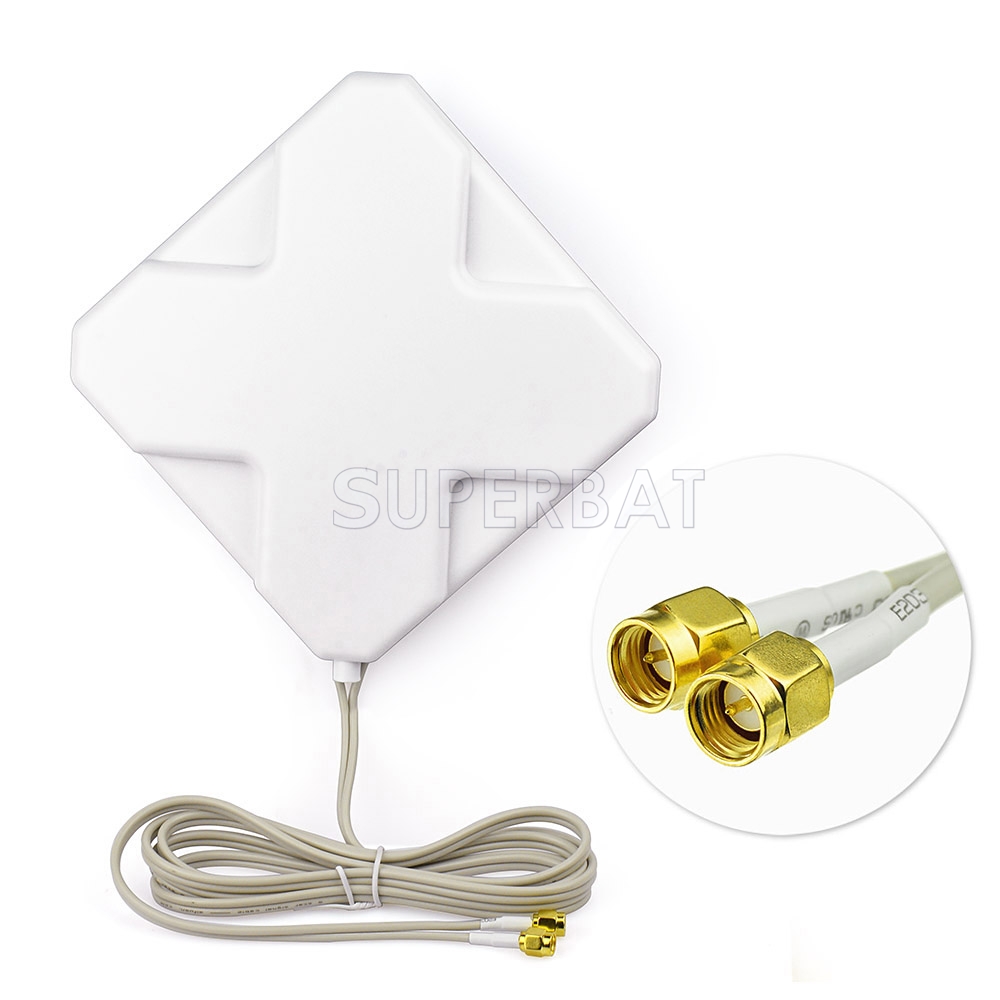

4G LTE Dual Band Antenna 791-821Mhz/832-862Mhz/1710-1785Mhz/1805-1880Mhz/2500-2570Mhz/2620-2690Mhz 35dbi SMA 2m cable
Unit Price: $32.23
sku:4A1-2767-S01SP-S01SP-350-200
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $32.23 $30.62 $29.01 $25.46 ASK
saving% 0% 5% 10% 21% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Desktop Network: 4G/LTE Antenna Frequency: 700-2600Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 35dBi Radiation: Omnidirectional V.S.W.R: <2.5 Cable Type: RG174 Cable Length: 2M Weight: 273g
  1. Frequency: 791-821Mhz/832-862Mhz/1710-1785Mhz/1805-1880Mhz/2500-2570Mhz/2620-2690Mhz
    2.Radiation: Omni

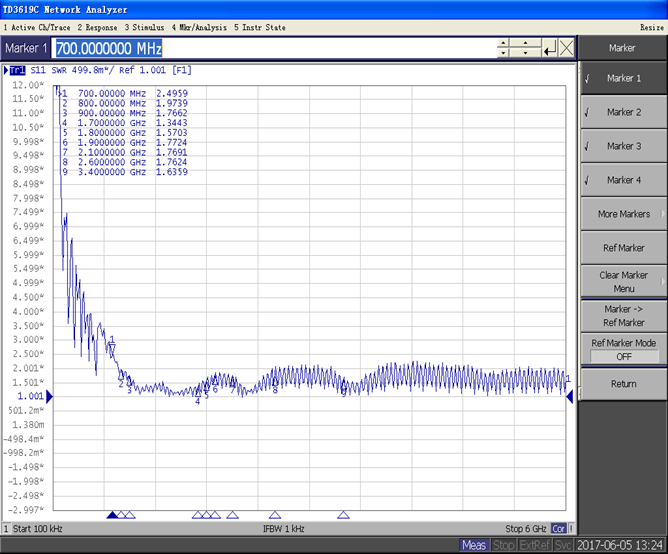

    3.VSWR:<2.5
    4.Gain: 35dbi
    5.Polarization Type: Vertical
    6.Maximum Imput Power: 10W
    7.Input Impedance: 50 Ohms nominal

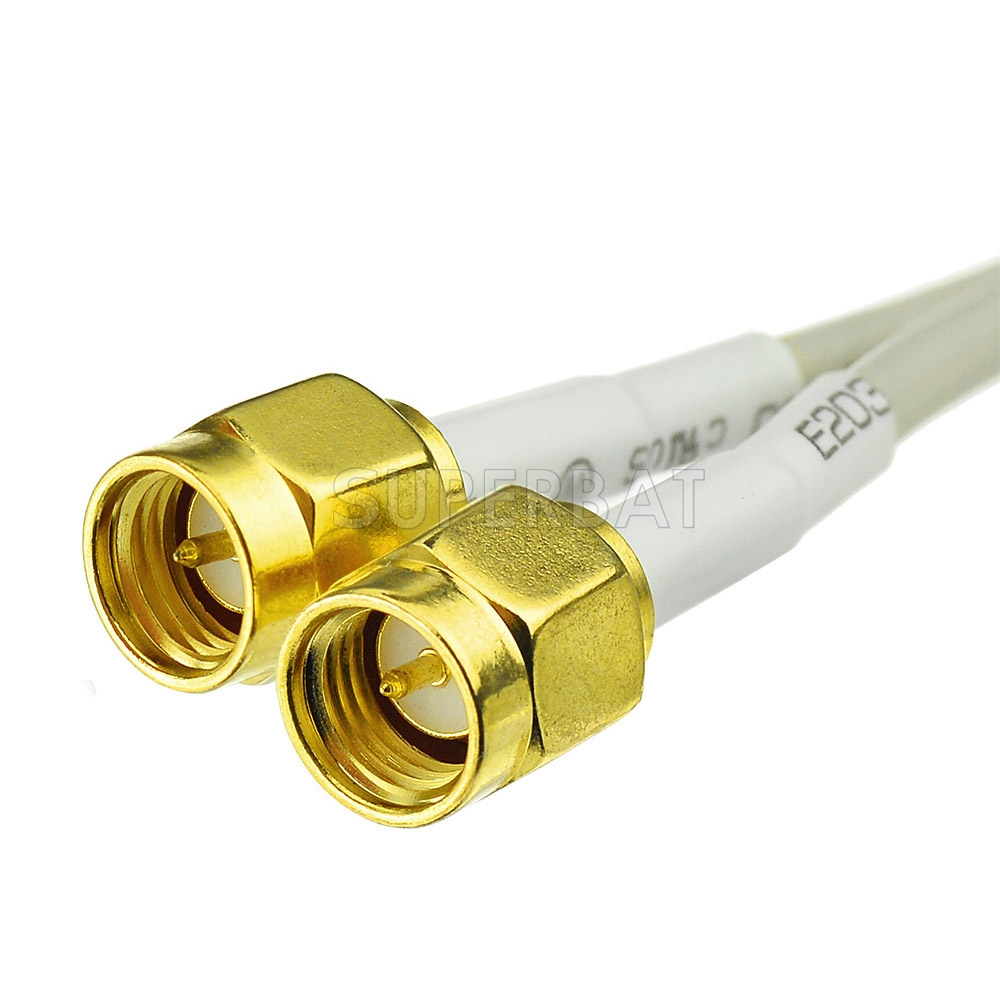

    8.Antenna Connector: SMA or customized
    Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

    9.Cable length: 2 m

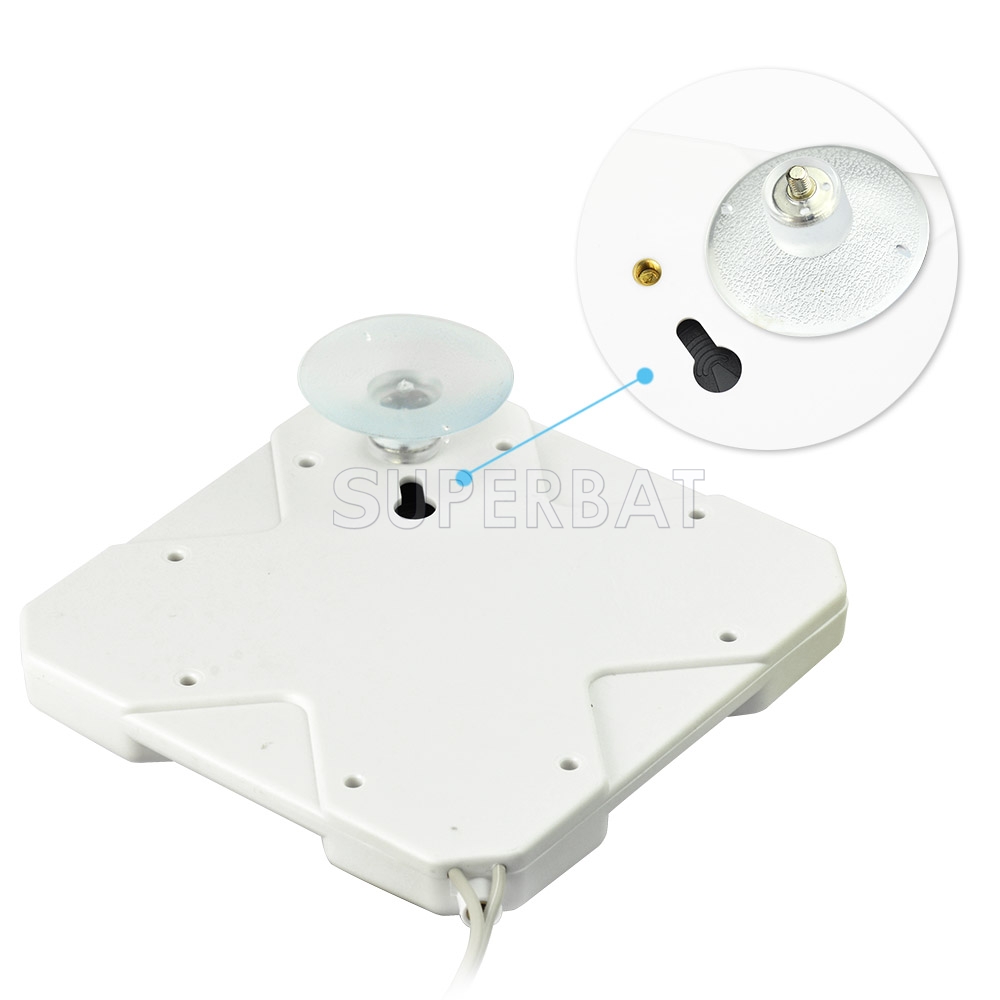

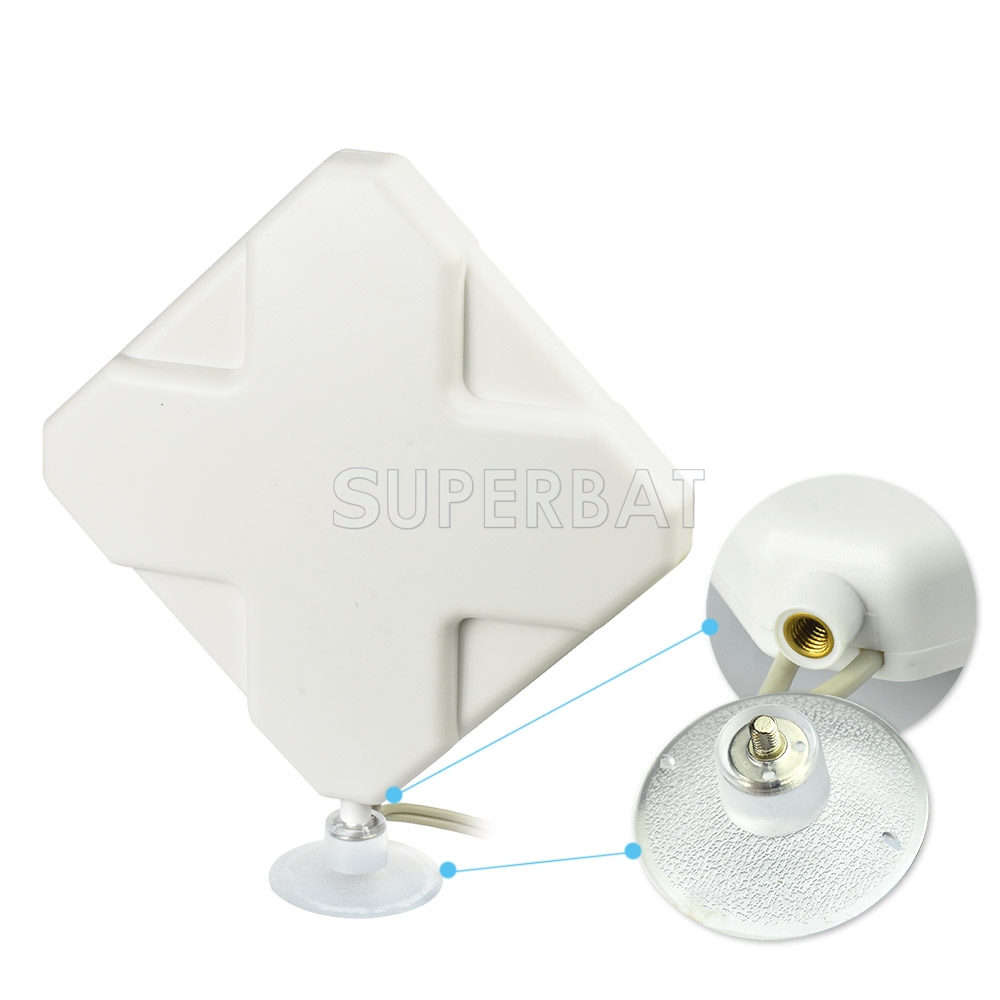

    10.Install the Way:Adsorption
    11.Dimensions: 220mm * 190mm * 21mm
    12.Weight: 273g
