4G LTE Dipole Antenna Wide Band 5dbi 700-2700Mhz Omni Directional with RP-SMA Male Connector for for CPE Router Access Point Wireless Rang Extender
Unit Price: $4.48
sku:4A2-0234-S02SP4-080
End connector
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $4.48 $4.03 $3.63 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 950
Quantity: Units

Antenna Type: Rubber Duck Network: 4G/LTE Antenna Frequency: 700~2700MHz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Gain: 9dB Radiation: Omnidirectional V.S.W.R: < 2.0

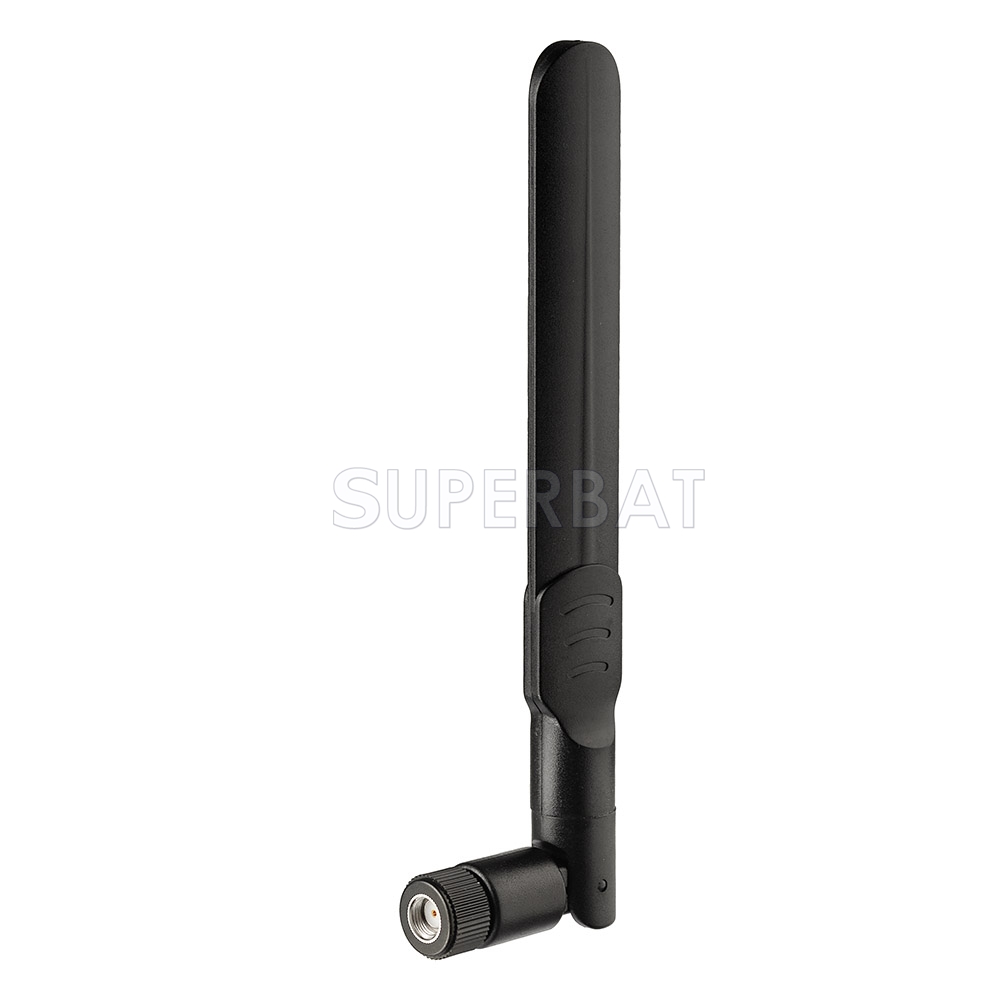

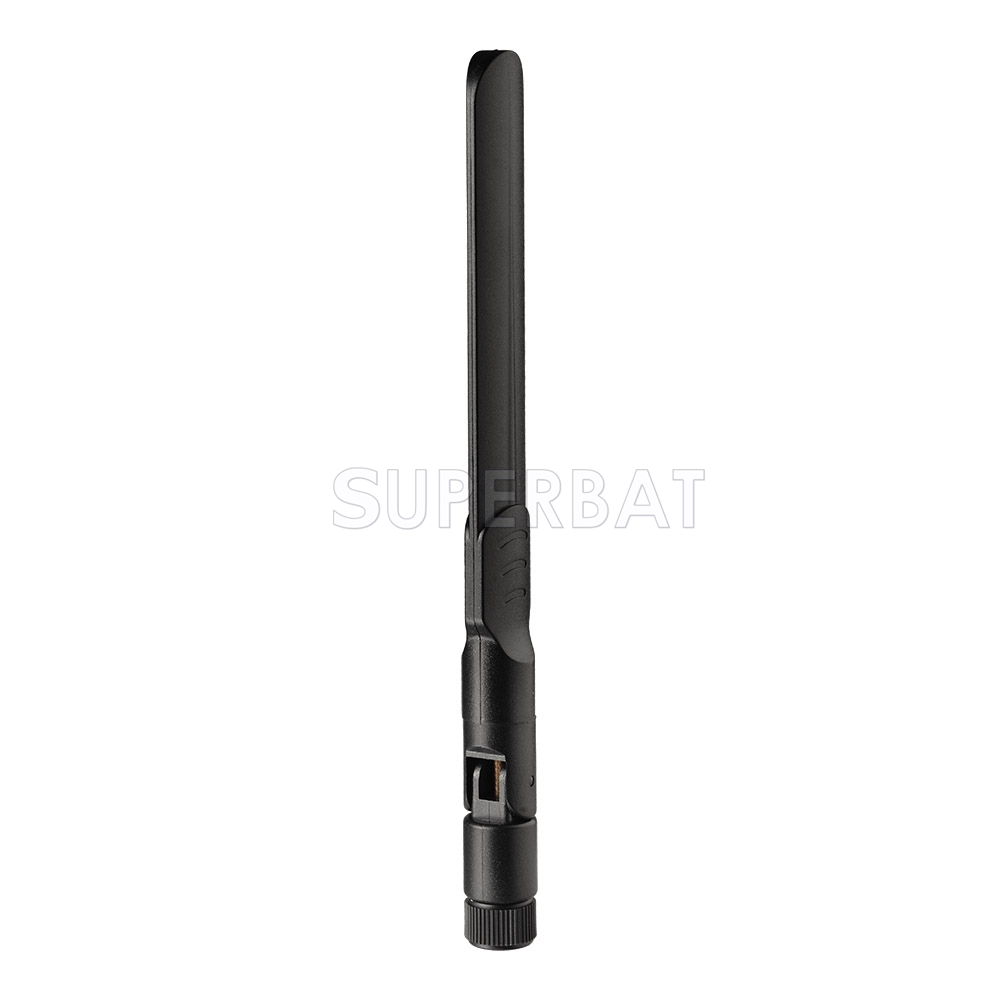

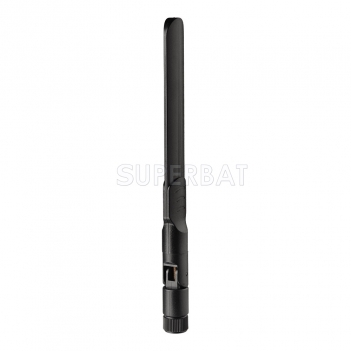

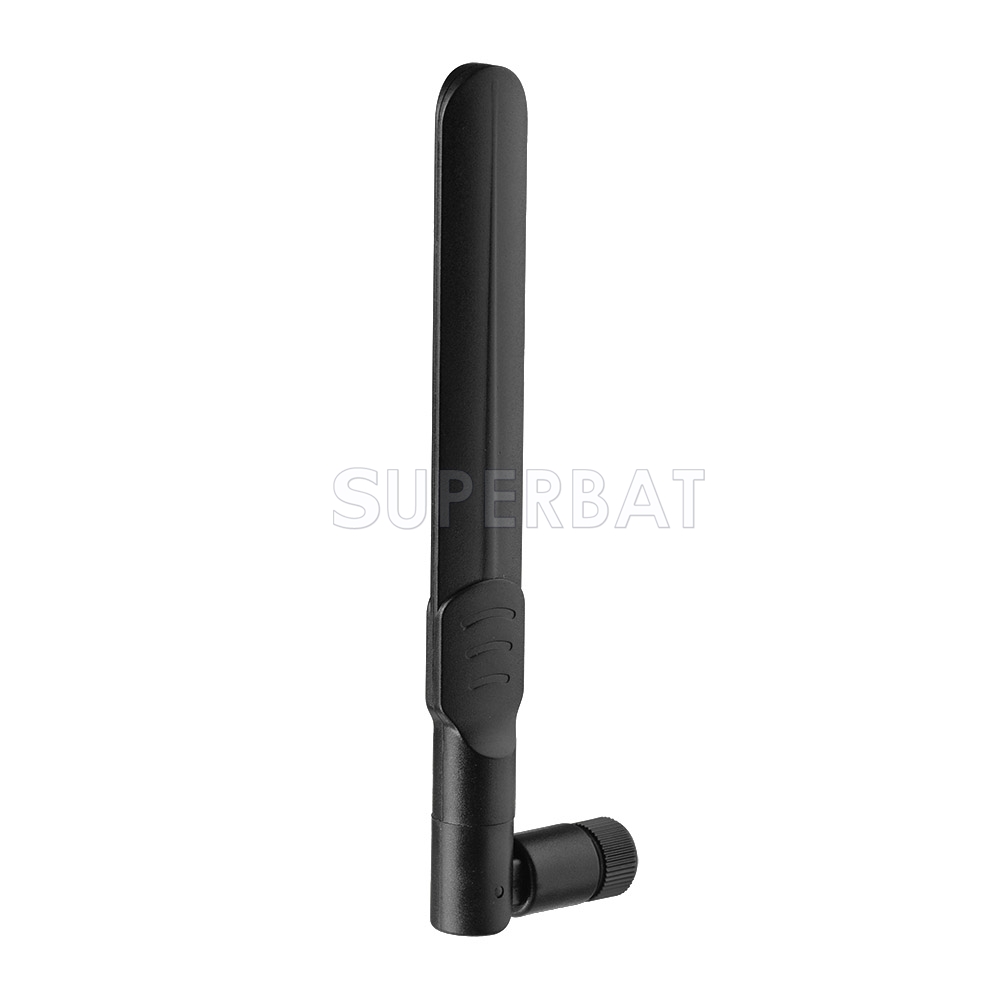

The Superbat Flat Swivel Antenna is a high-efficiency mid-gain 3G/4G/GPS omnidirectional antenna. The "rubber-duck" style antenna is an 6.3 inch (160 mm) omni-directional antenna that provides 5 dBi of gain and supports all 2G, 3G and 4G/LTE/xLTE/AWS frequency bands (700-2700 MHz) ,such as Verizon Wireless, AT&T Wireless, T-Mobile, Rogers, Bell Mobility and Telus as well as most other cellular operators worldwide.


Important Note!!:

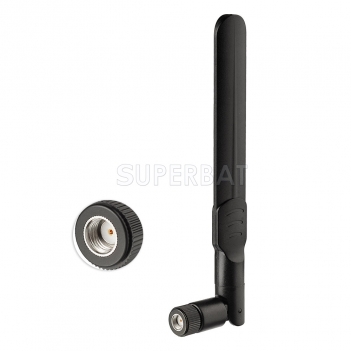

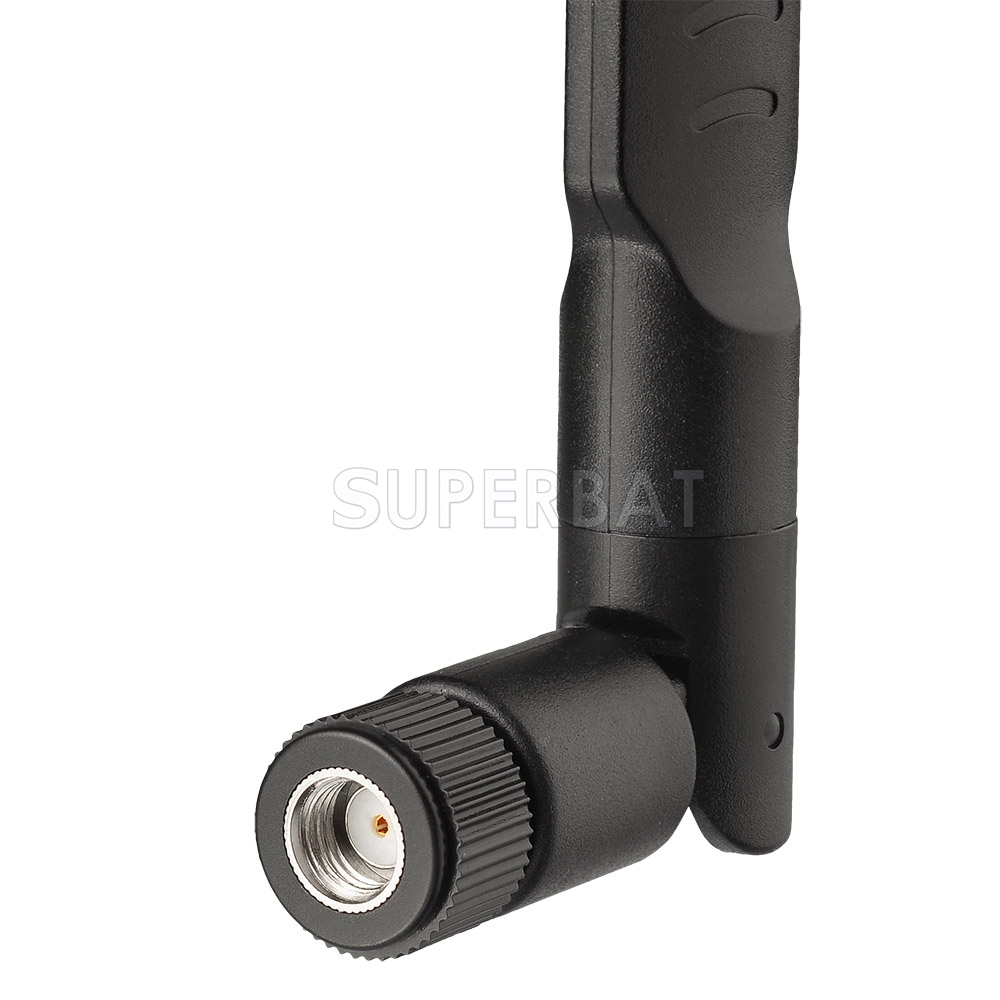

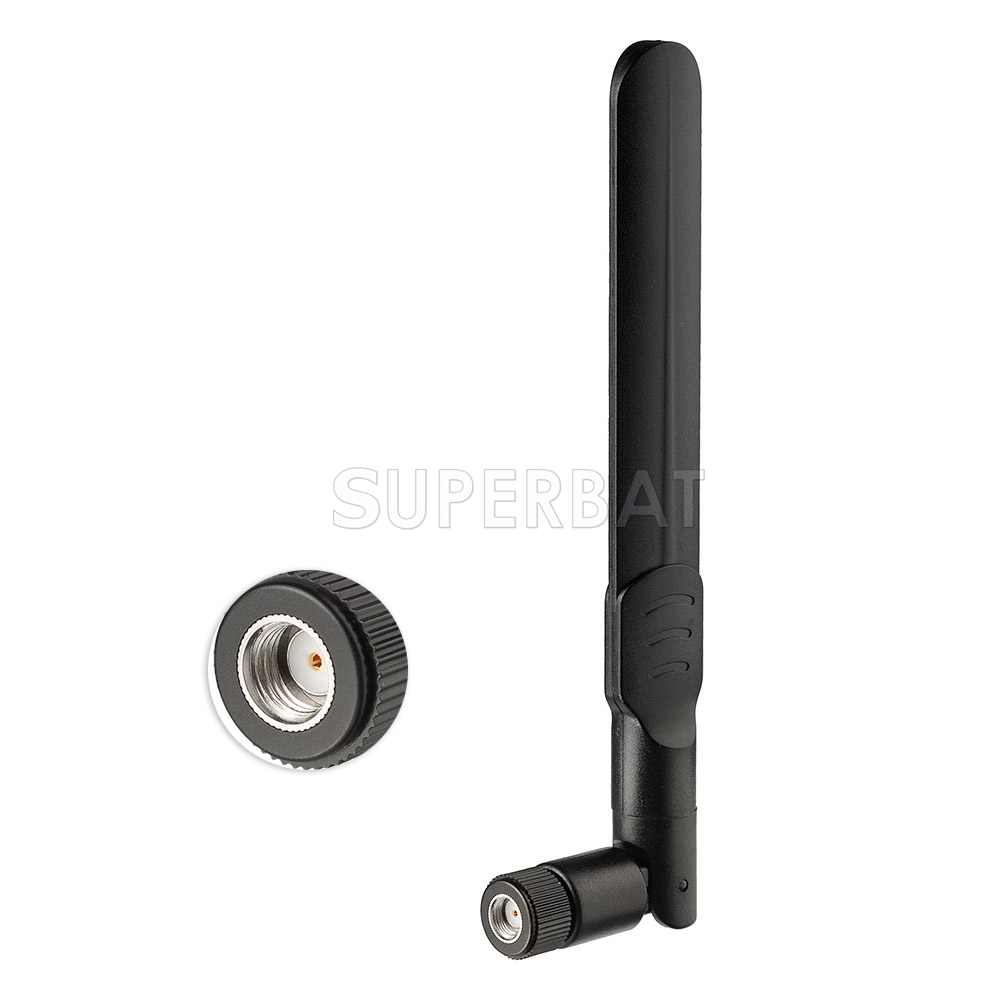

This antenna with RP-SMA Male Plug connector (Thread inside without Pin)

It only match RP-SMA Jack connector (Thread outside with Pin)

**Please confirm your device interface type before purchasing**.


Specification

Gain: 5dBi

Antenna Length: 16cm

Frequency Range: 700-960MHz/1710-2700MHz

Vswr: < 2.0

Polarization: Vertical

Max power: 50 W

Temperature: -40°С ~ +80°С

Connector Type: RP-SMA Male

Input Impendence: 50Ω

Radiation: Omni Directional

Weight: 15g

Installation: Screw

Package List: 1 x Antenna;(As the Picture Shown)
