4G LTE Cellular Antenna Fixed Bracket Wall Mount RP-SMA Male Antenna for Booster Camera Router
Unit Price: $15.68
sku:4A3-0154-S02SP-020-300-JCG023L+ZJ-001
End connector
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $15.68 $14.11 $12.70 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Radiation: Omnidirectional V.S.W.R: <2.0 Cable Type: RG174 Cable Length: 3m Weight: 263g

Specifications:

External omni-directional antenna (passive);

Enhances cellular signal (effective in low coverage area);

10 feet cable length, RP-SMA male connector;

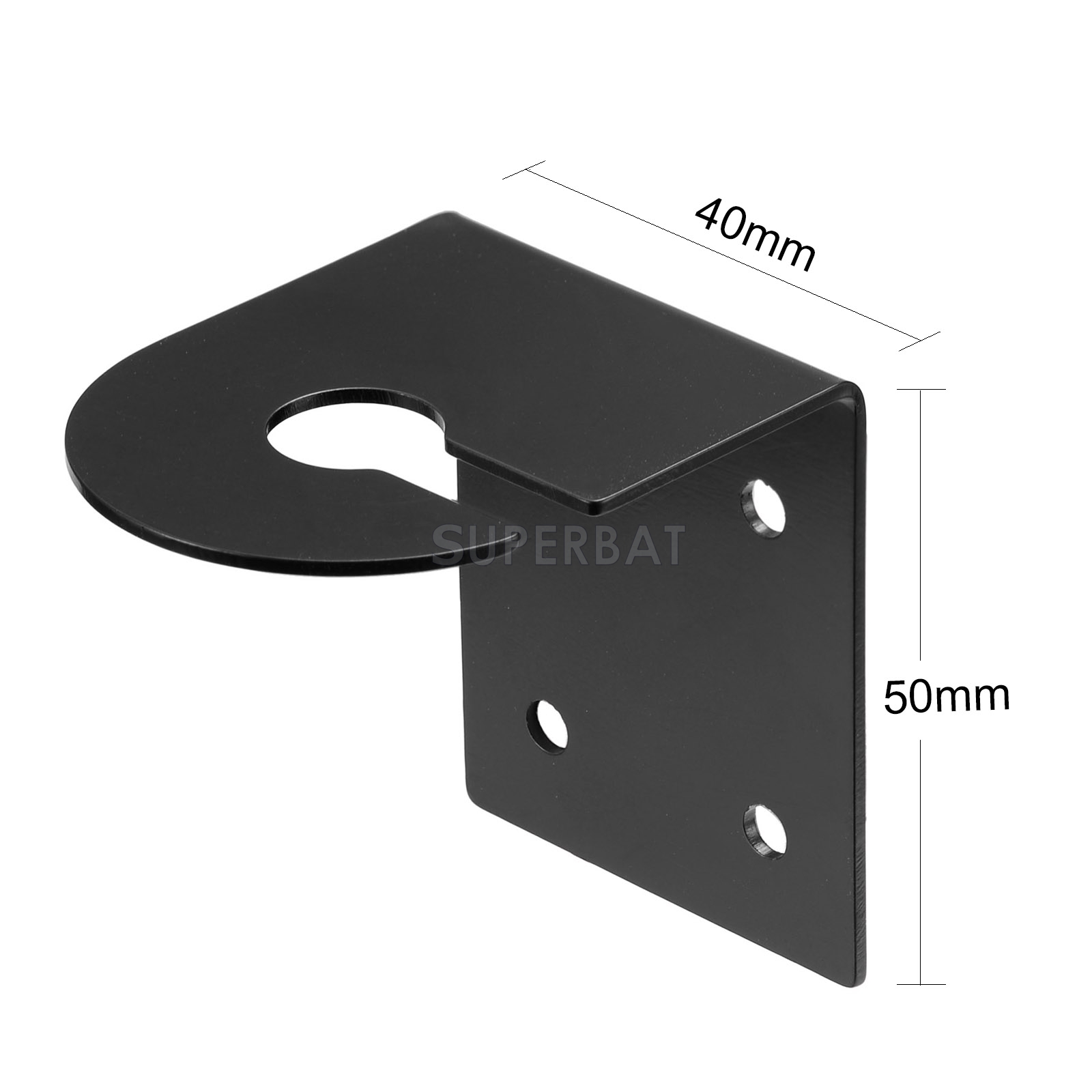

Bracket for easy installation;

Do not require any external power;

Compatible with Spypoint Link series camera models;

Gain: 5dBi

Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz

VSWR: < 2.0;

Polarization: Linear Vertical;

Impedance: 50 ohm;

Direction: Omni-directional;

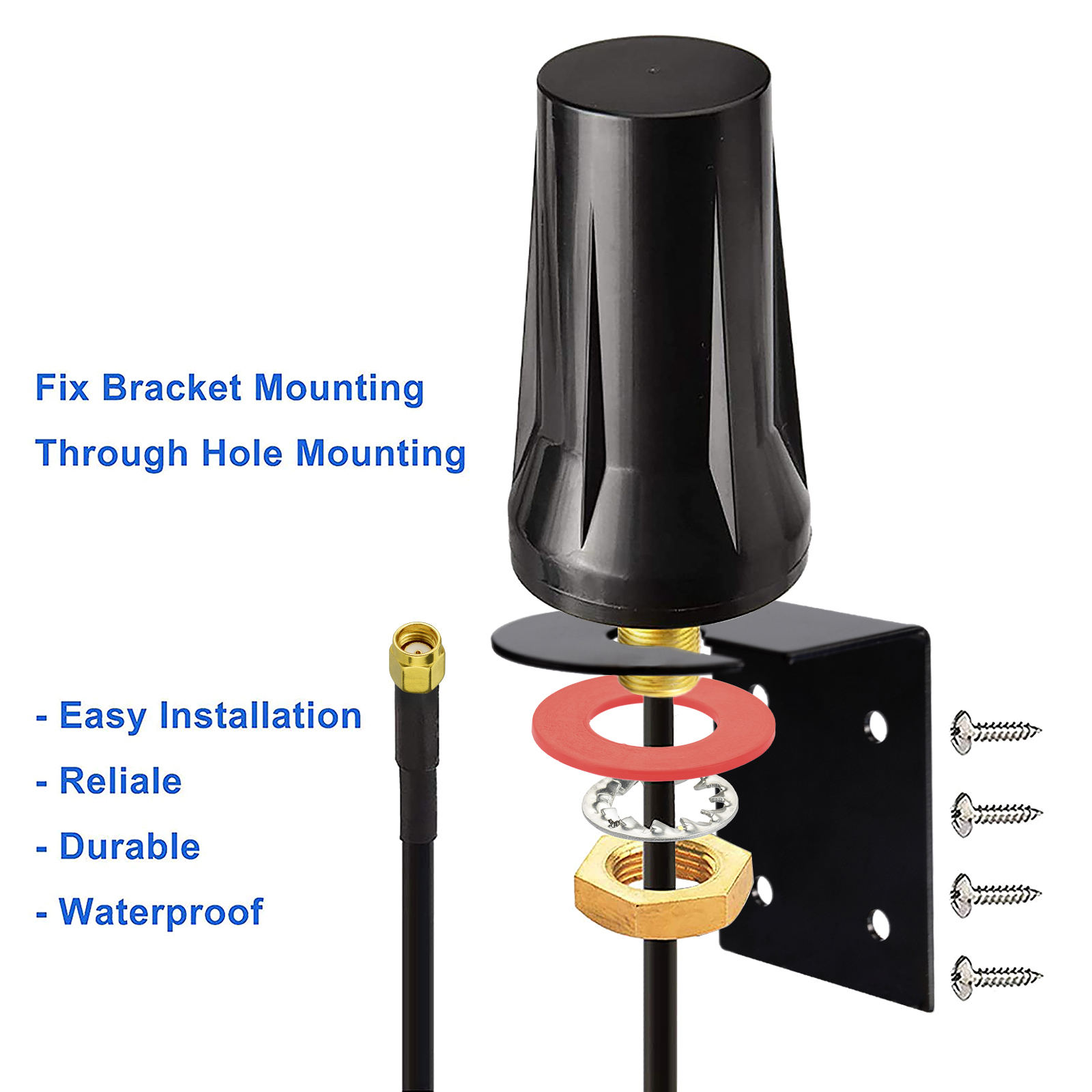

Feature: Fixed Wall Mount; Thru Hole Mount;

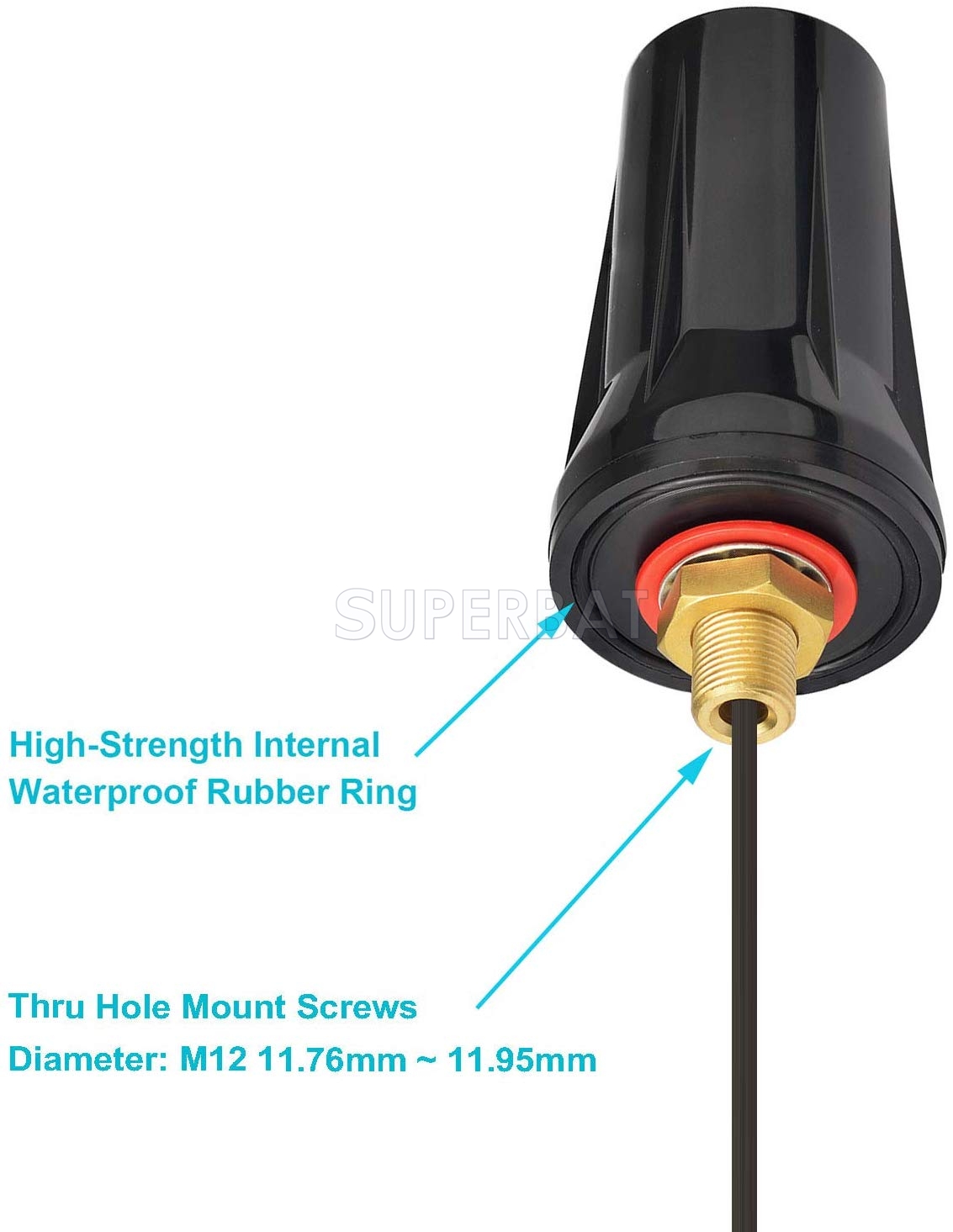

Antenna Mounting Screws Diameter: M12 11.76mm-11.95mm;

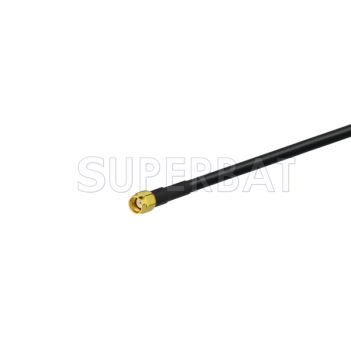

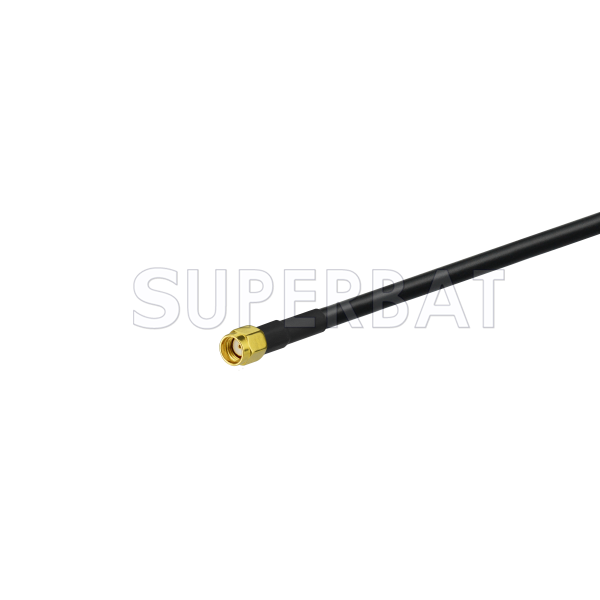

Connector: RP-SMA Male Connector;

Cable Length: 3m/10 feet;

Net Weight: 263g;

Waterproof: Rainning Proof;

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

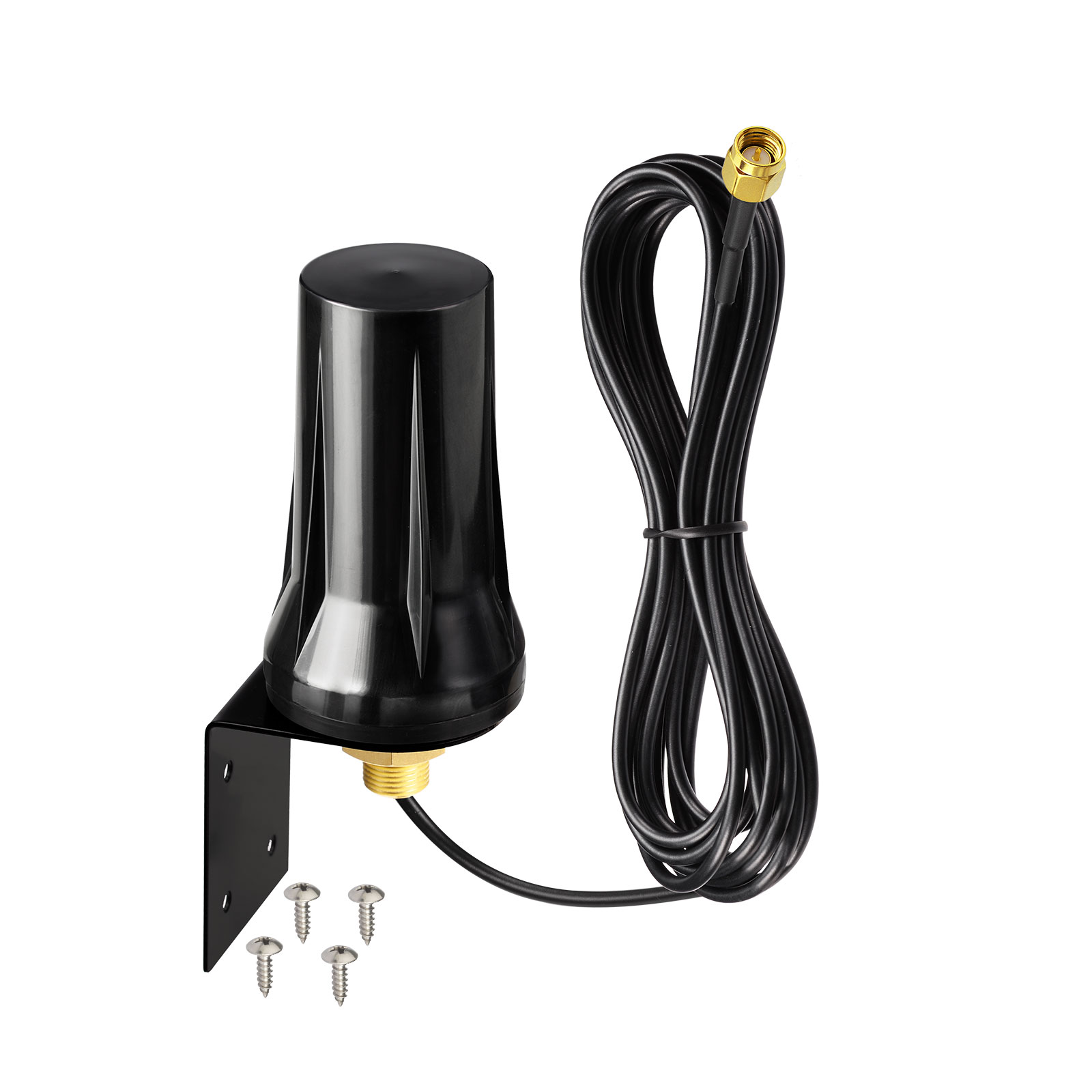

Package List: 1 x Antenna,, 1 x Wall Mount Bracket, 4 x Screws (As the Picture Shown);
