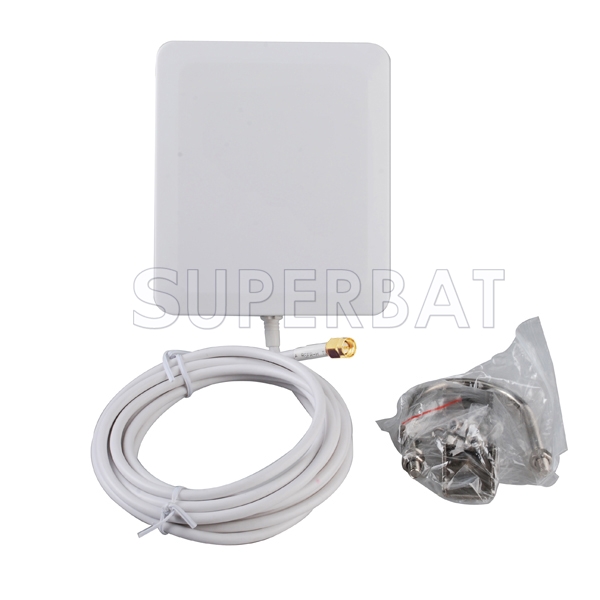

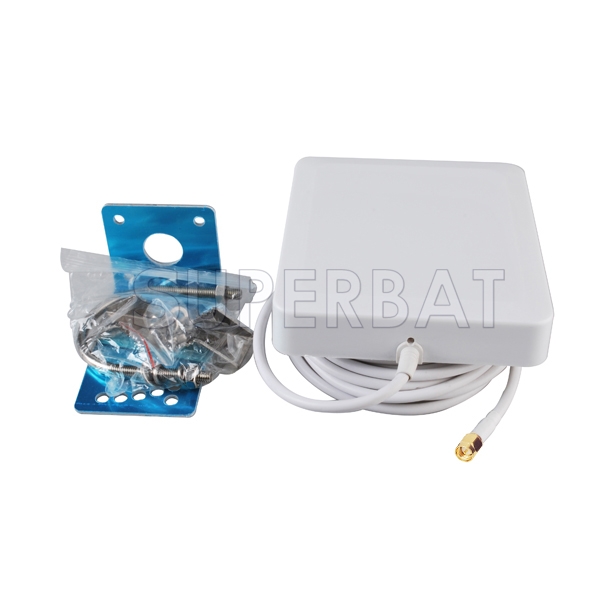

4G LTE Antenna Aerial 2300-2700Mhz 10dbi Panel mount SMA Connector
4G LTE Antenna Aerial 2300-2700Mhz 10dbi Panel mount SMA Connector
Unit Price: $23.95
sku:LAP-2589-S01SP-100-300
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $23.95 $22.75 $20.60 $18.20 ASK
saving% 0% 5% 14% 24% -
Real Time Availability
Stock: 9997
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Frequency: 2300-2700Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 10dbi Radiation: Directional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 3m Weight: 420g

Frequency range : 2300-2700 MHz
Polarization: Vertical
Gain (dbi): 10dbi
Horizontal beamwidh: 50
Vertical beamwidth: 50
F/B ratio (dB): ≥25
Input Impedance: 50 Ohm
VSWR: ≤1.5
Max power (W): 50
Lightning protection: DC Ground

Cable Type: RG58

Cable length: 3M

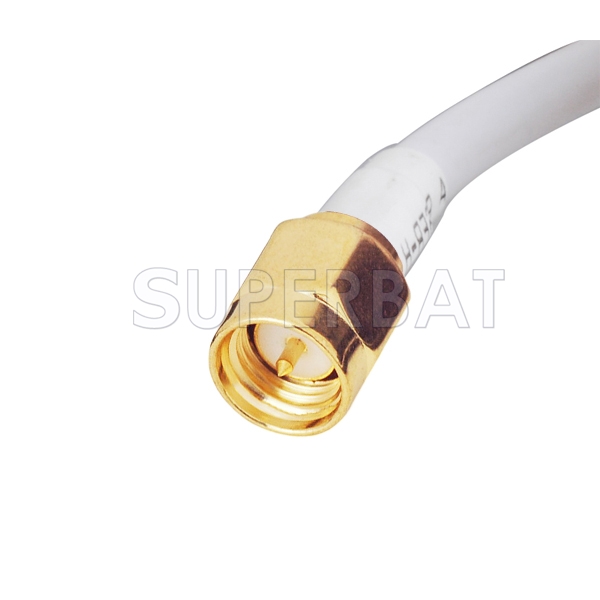

Connector type: SMA male straight as default or customized

Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Antenna weight (kg): 0.42
Radome material: ABS
Radome color: white
Mechanical tilt: 0~10
Operating Temperature: -40~60
Rated Wind Velocit(m/s): 60
Mounting hardware(mm): 35~50
