4G LTE 2dBi Omni-directional SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Vehicle Truck RV Motorhome Cell Phone Signal Booster
Unit Price: $7.06
sku:4A3-0157-S01SP-020-300-JCG108L
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $7.06 $6.35 $5.72 $5.29 ASK
saving% 0% 10% 19% 25% -
Real Time Availability
Stock: 500
Quantity: Units

Antenna Type: Glass Mount Network: 4G/LTE Antenna Frequency: 698~960/1710~2690MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 2dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 49g

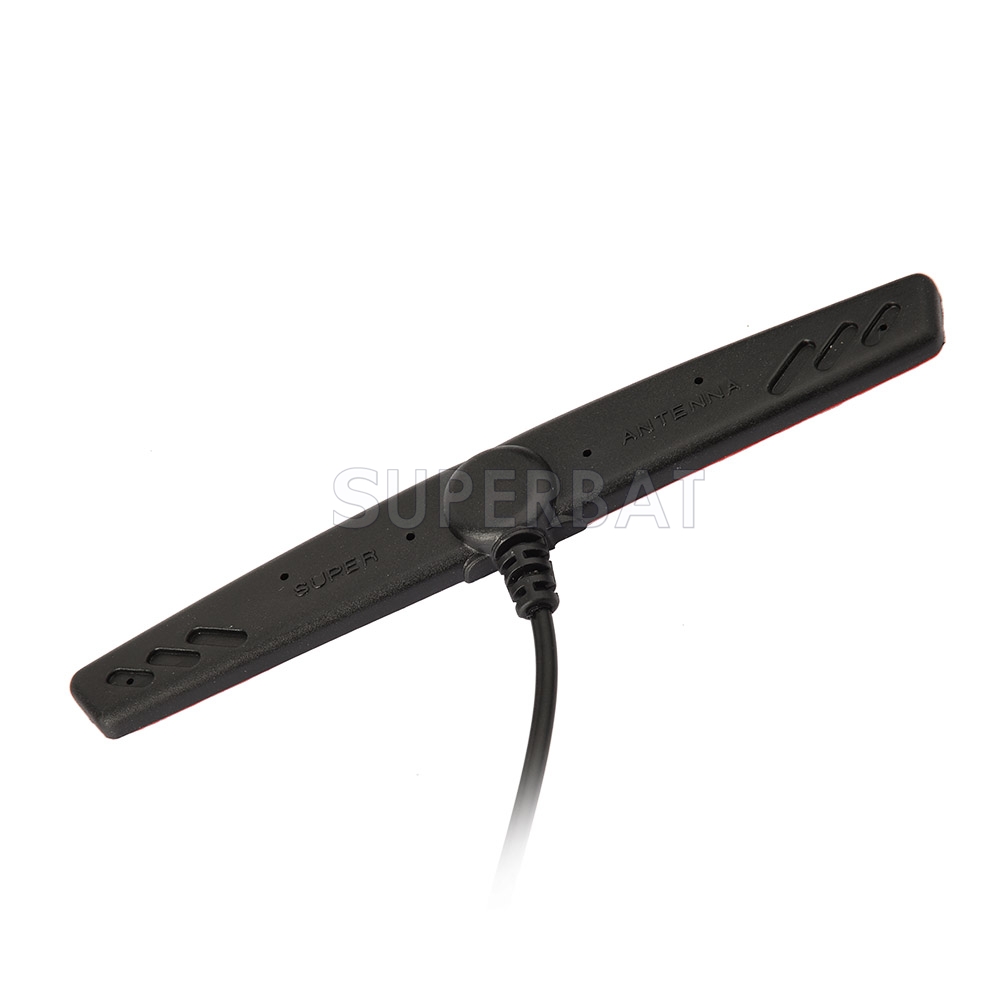

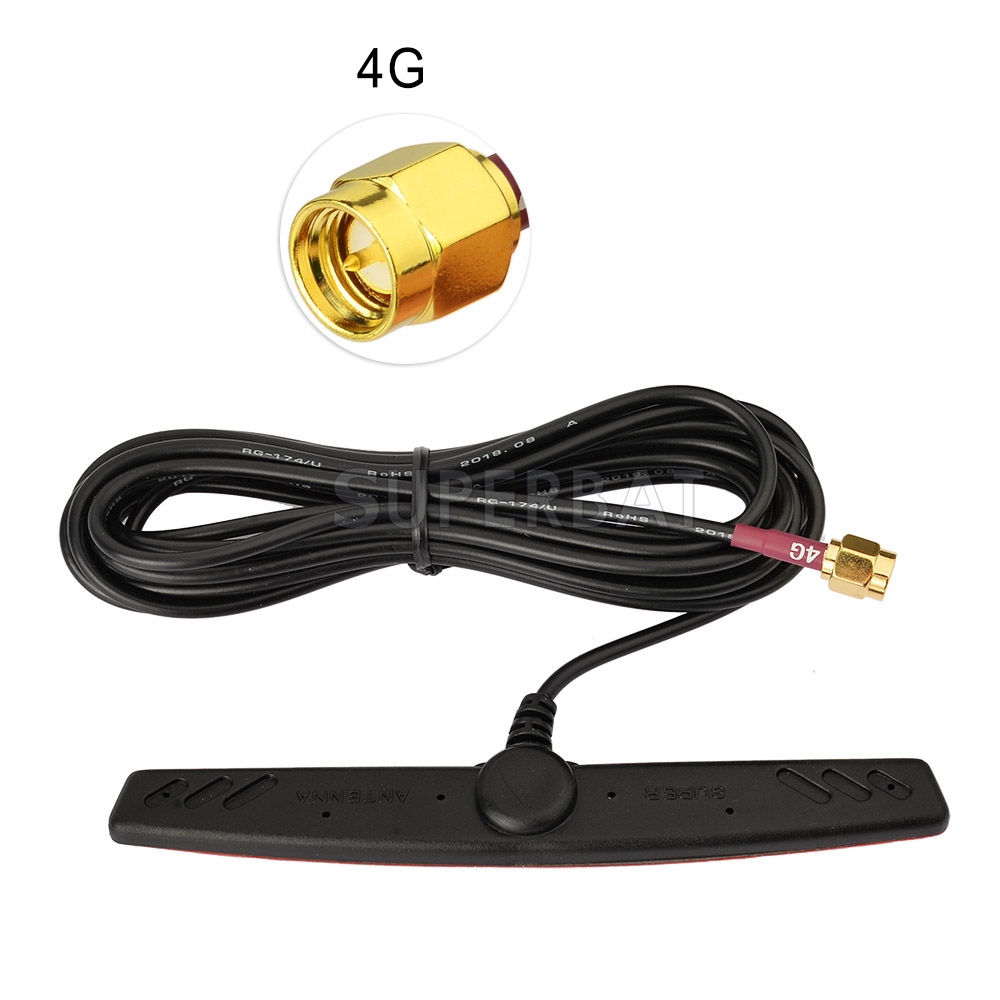

4G LTE 2dBi Omni-directional SMA Male Patch Antenna for 4G LTE Wireless Router Remote IP Camera Vehicle Truck RV Motorhome Cell Phone Signal Booster

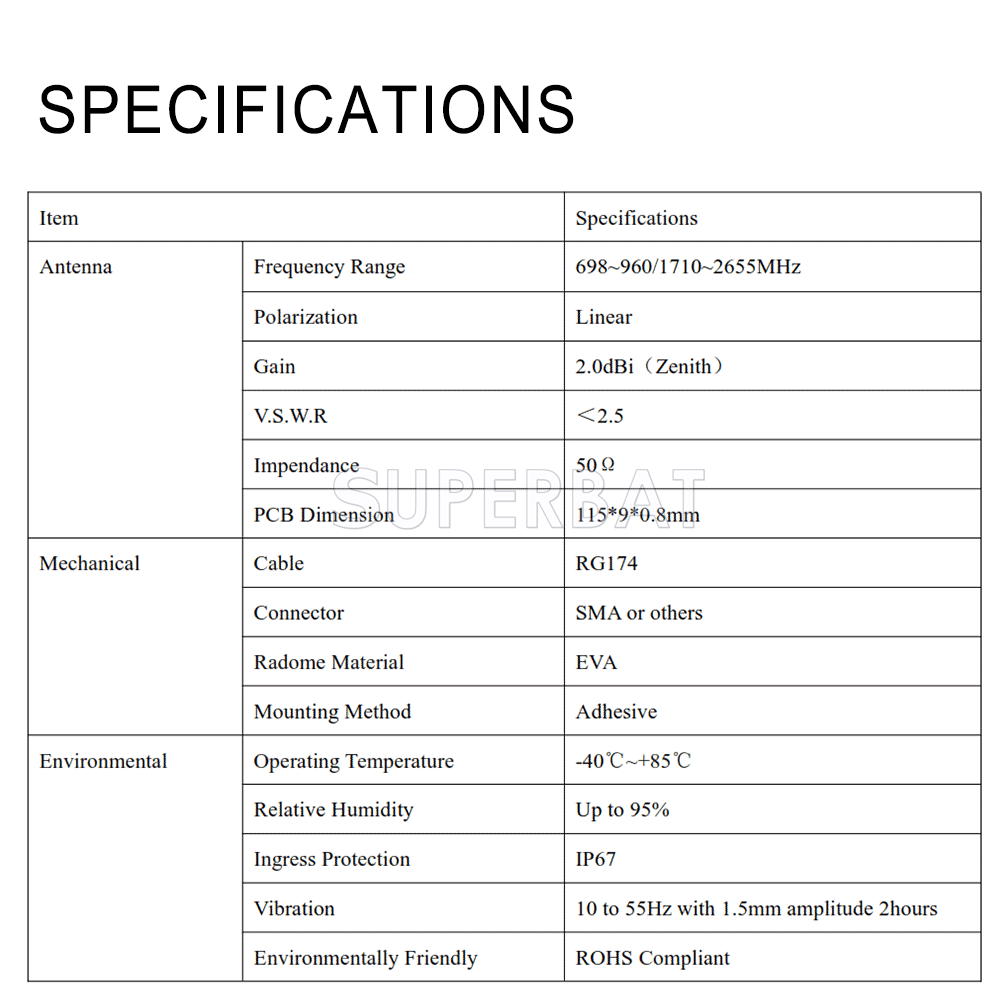

4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2690MHz

Polarization: Linear

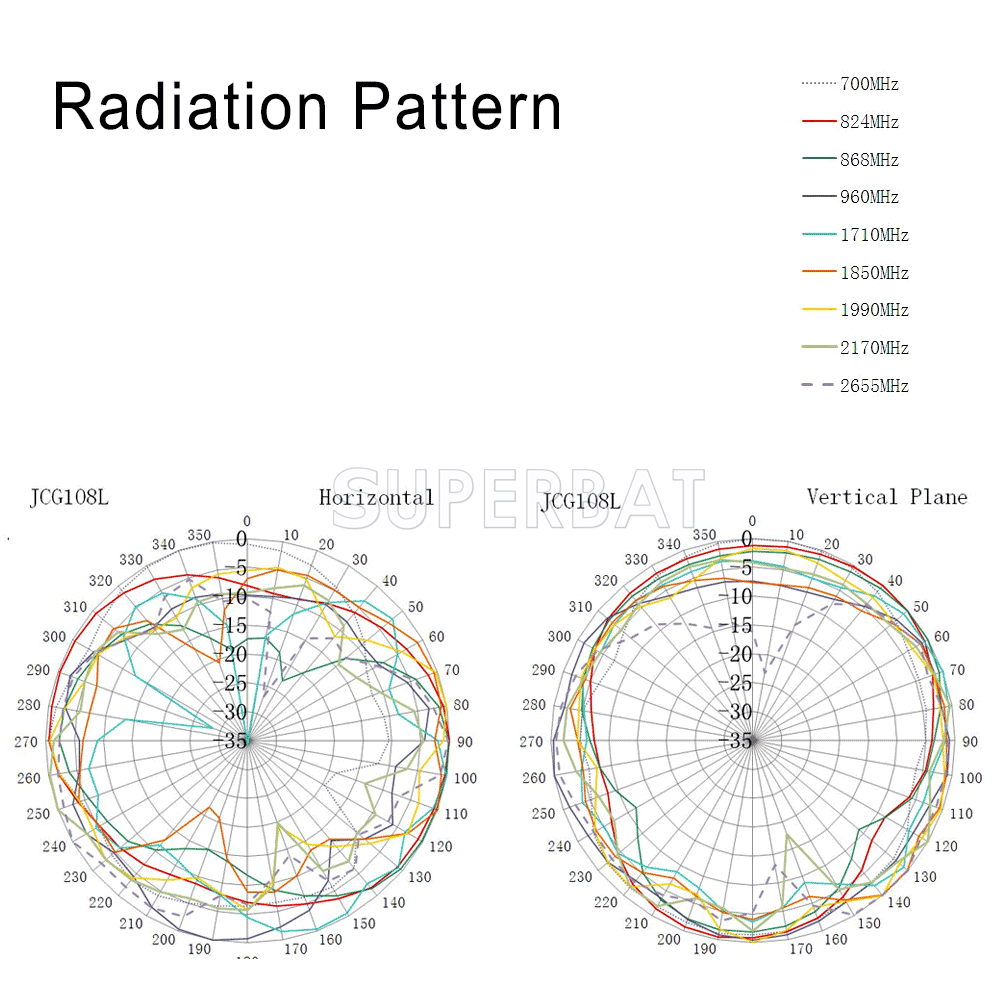

Gain: 2dBi(Zenith)

V.S.W.R: <2.5

Impendance: 50Ω

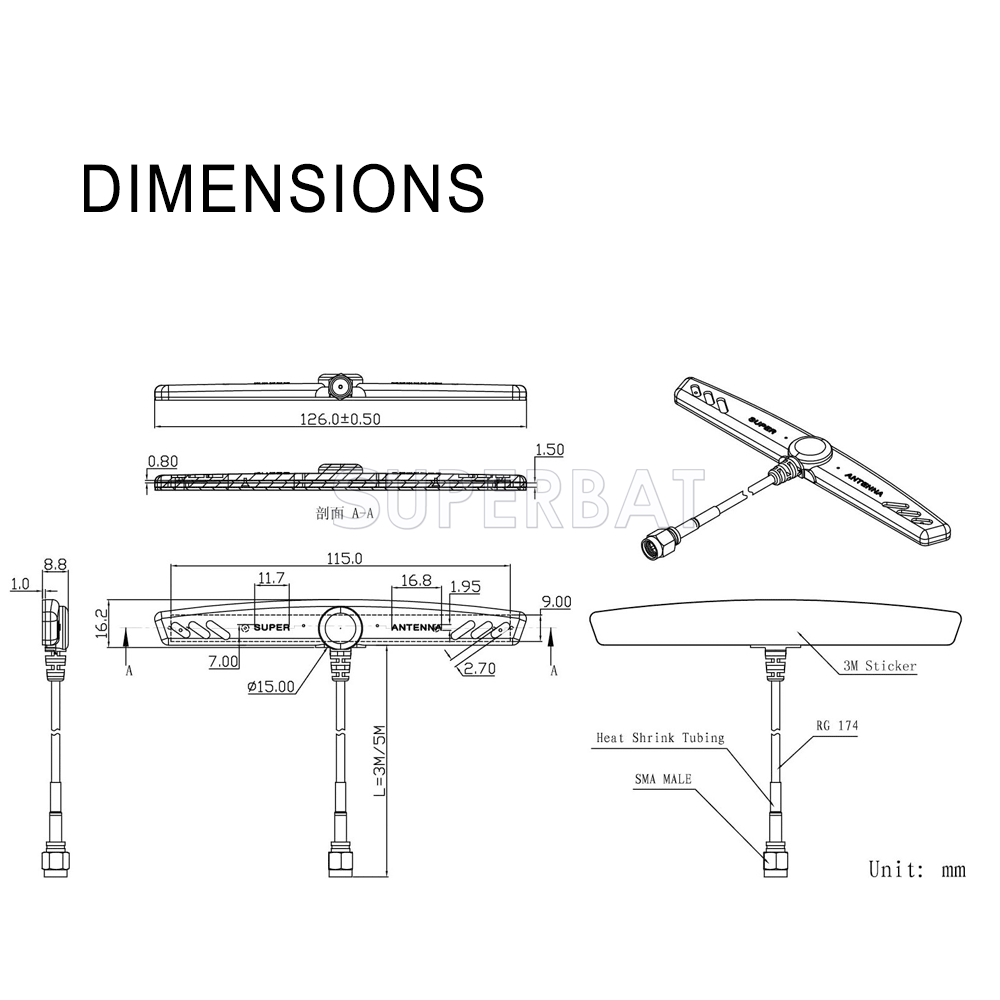

PCB Dimension: 115*9*0.8mm

Weight: 49g


Mechanical:

Cable: RG174

Cable Length: 3 Meters

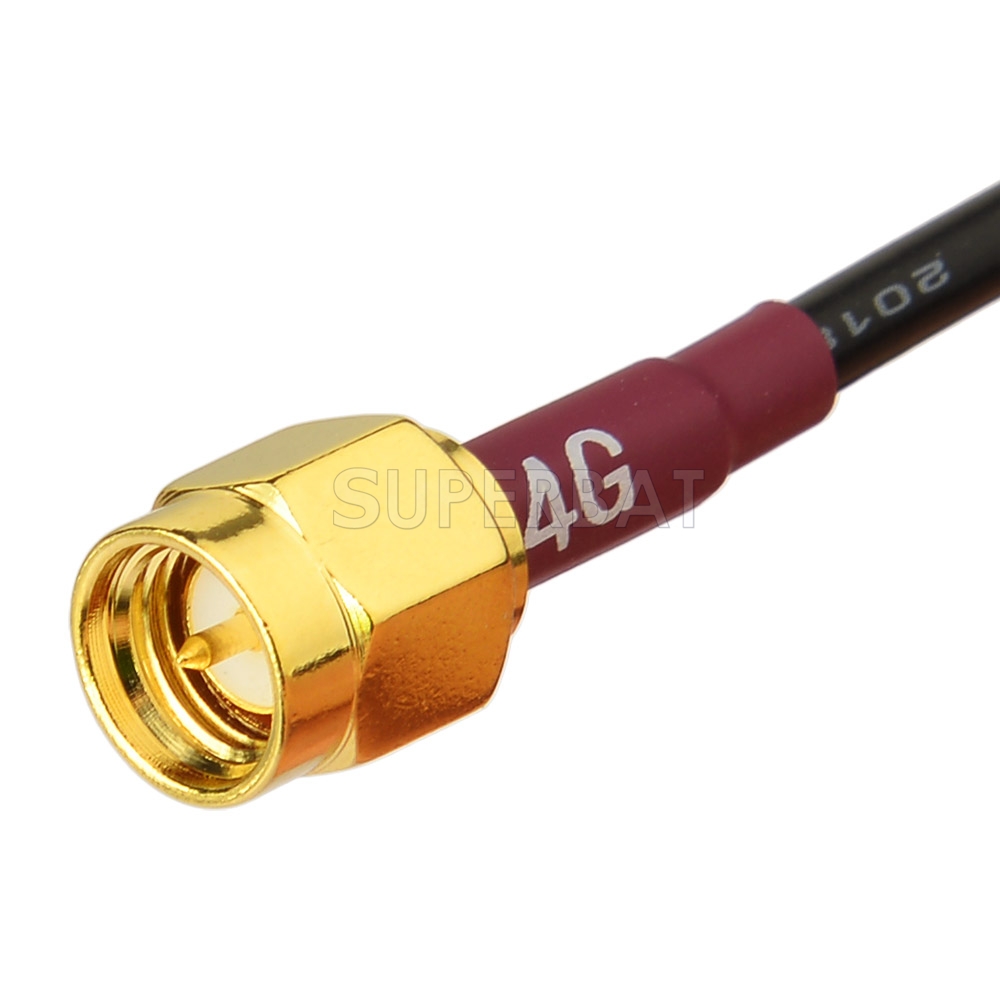

Connector: SMA Male Connector or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Radome Material: EVA

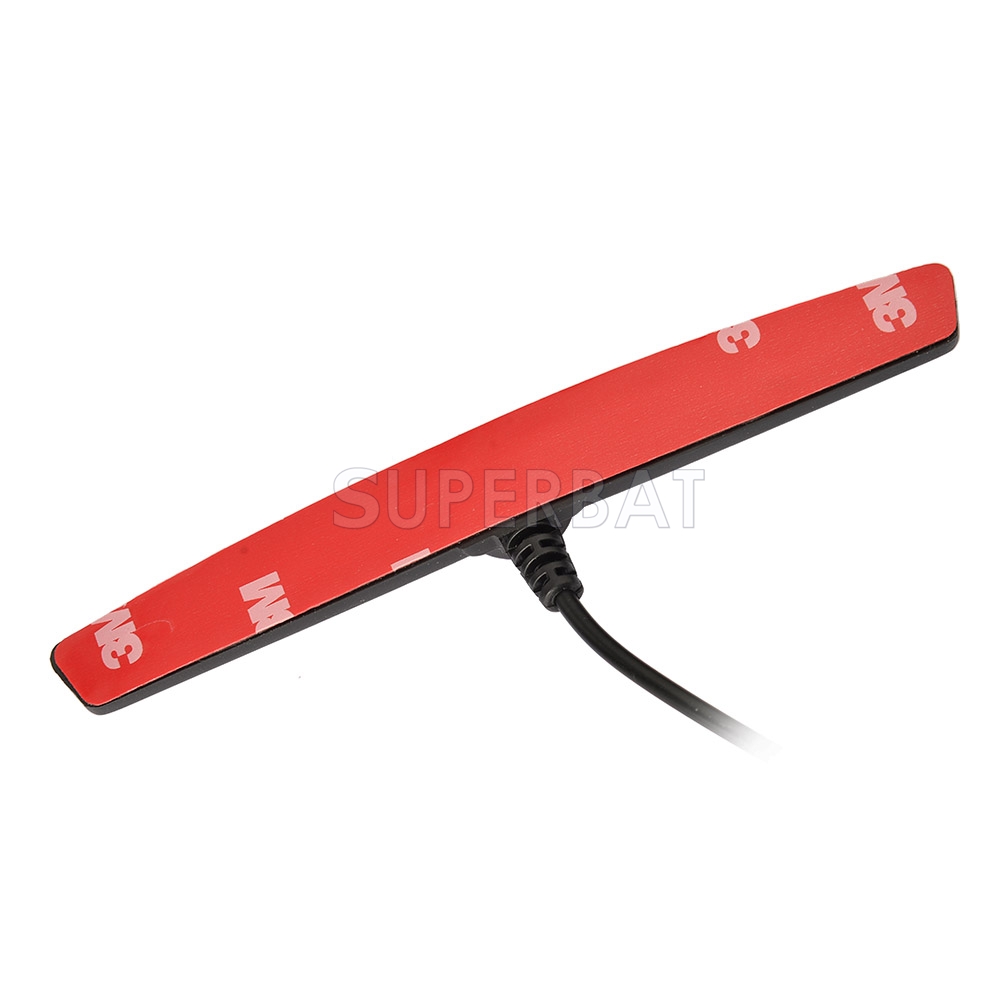

Mounting Method: Adhesive


Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
