800-2500MHz 4-way Power Divider SMA female connector

Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.



ELECTRICAL SPECIFICATIONS:

type: 4-way Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=4.5DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.5
Max. Power(MAX)(W) :50
connector :SMA female



Mechanical Characteristics:

Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Size -mm :99.4mmX96mmx17mm
Weight：237g

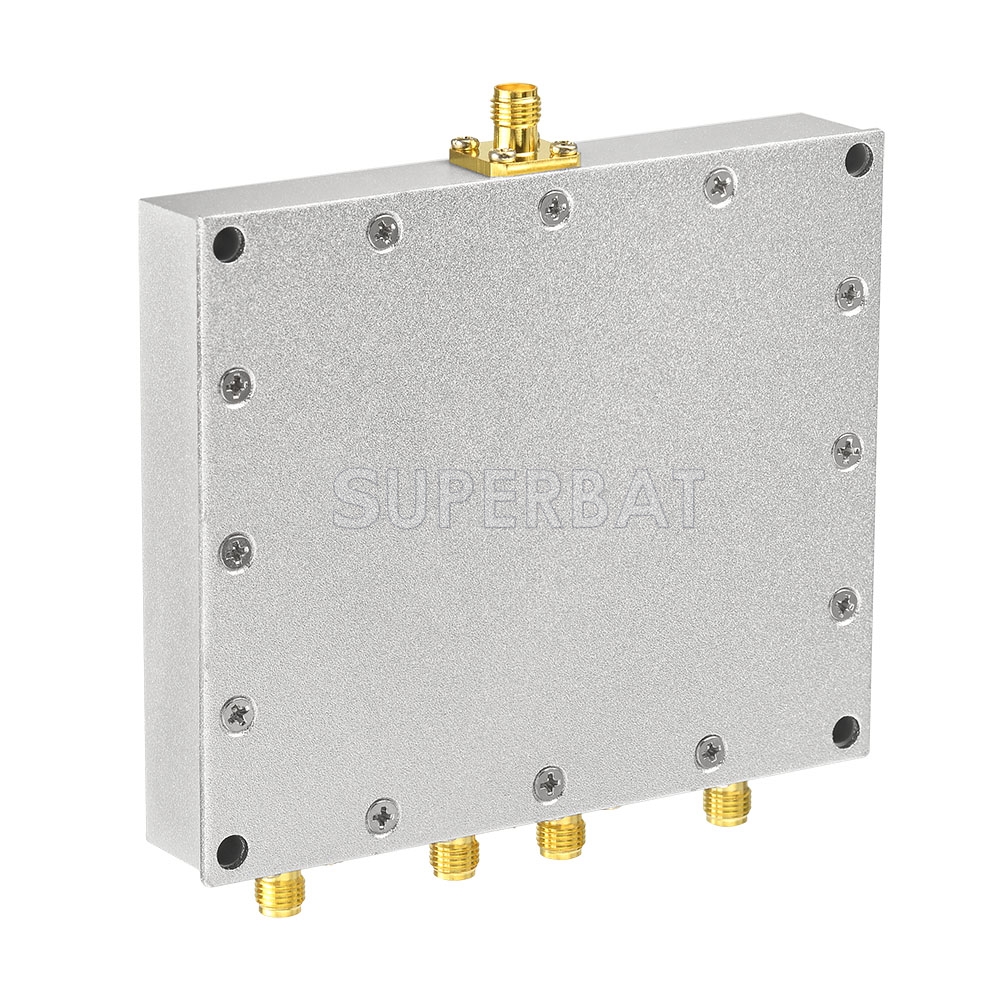

PS. Power splitter box body surface polishing
