31.5inch 5.8 dBi 915MHz Helium HNT Lora Antenna
Unit Price: $48.49
sku:EA2-0310-N01SP-050&AC-N01BO-S02SP-058-300
Real Time Availability
Stock: 1000
Quantity: Units

Improve Signal Strength】 - Built in inner copper oscillator, 5.8dBi Gain, Omni-directional, Long Range, Lower VSWR

Solid Construction】 - Durable fiberglass antenna cover , anticorrosive, sealed well and waterproof

Feature】 - Frequency: 915MHz; Antenna Height: 31.5inch/2000px; Direction: Omni-directional;

Low Signal Loss RF Cable】 - low loss extention cable offers a larger center conductor and supports better signal retention.

Application】 - Compatible with Nebra HNT Outdoor Hotspot Miner, designed for LoRa Helium miner, Low power radio: Sigfox, LPWA, LoRa, mesh networks, IoT

Packing List】 - 1 x helium antenna(N Male Connector); 1 x U-bolt (Package do not include pole and extention cable)


Specification:
Frequency: 860MHz - 930MHz,868MHz(欧洲)/915MHz(美洲)
Gain: 5.8dBi Omnidirectional

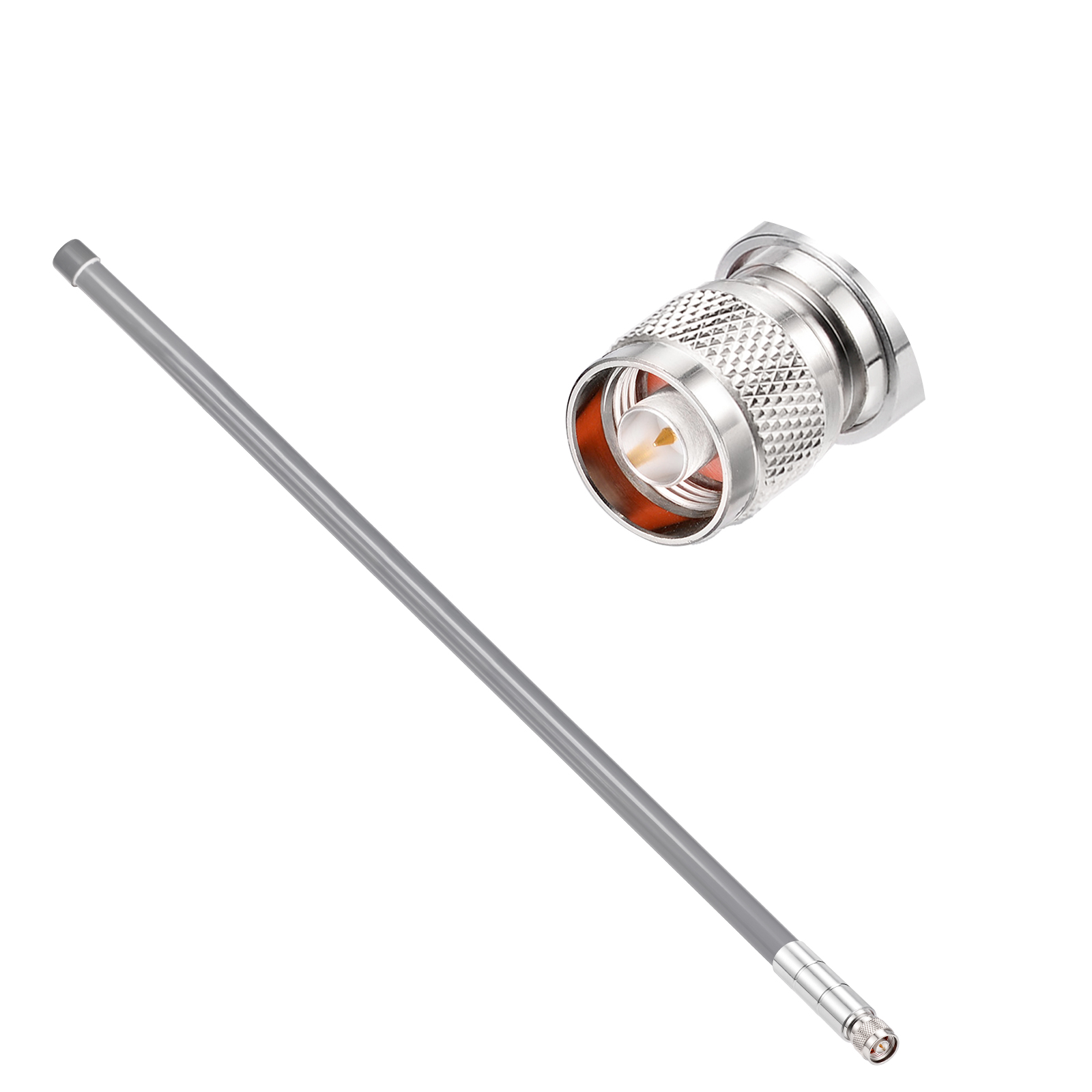

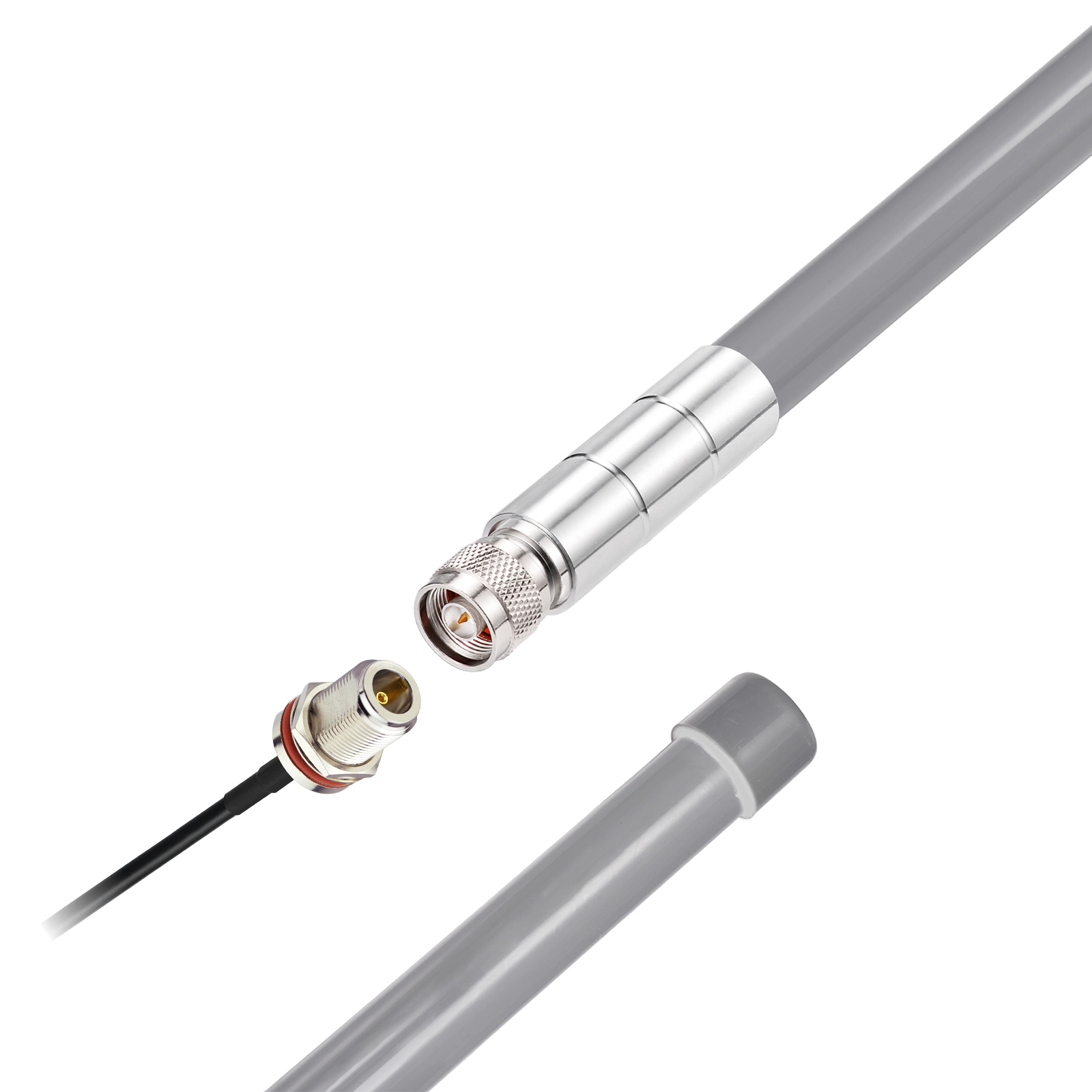

Antenna Connector: N Male

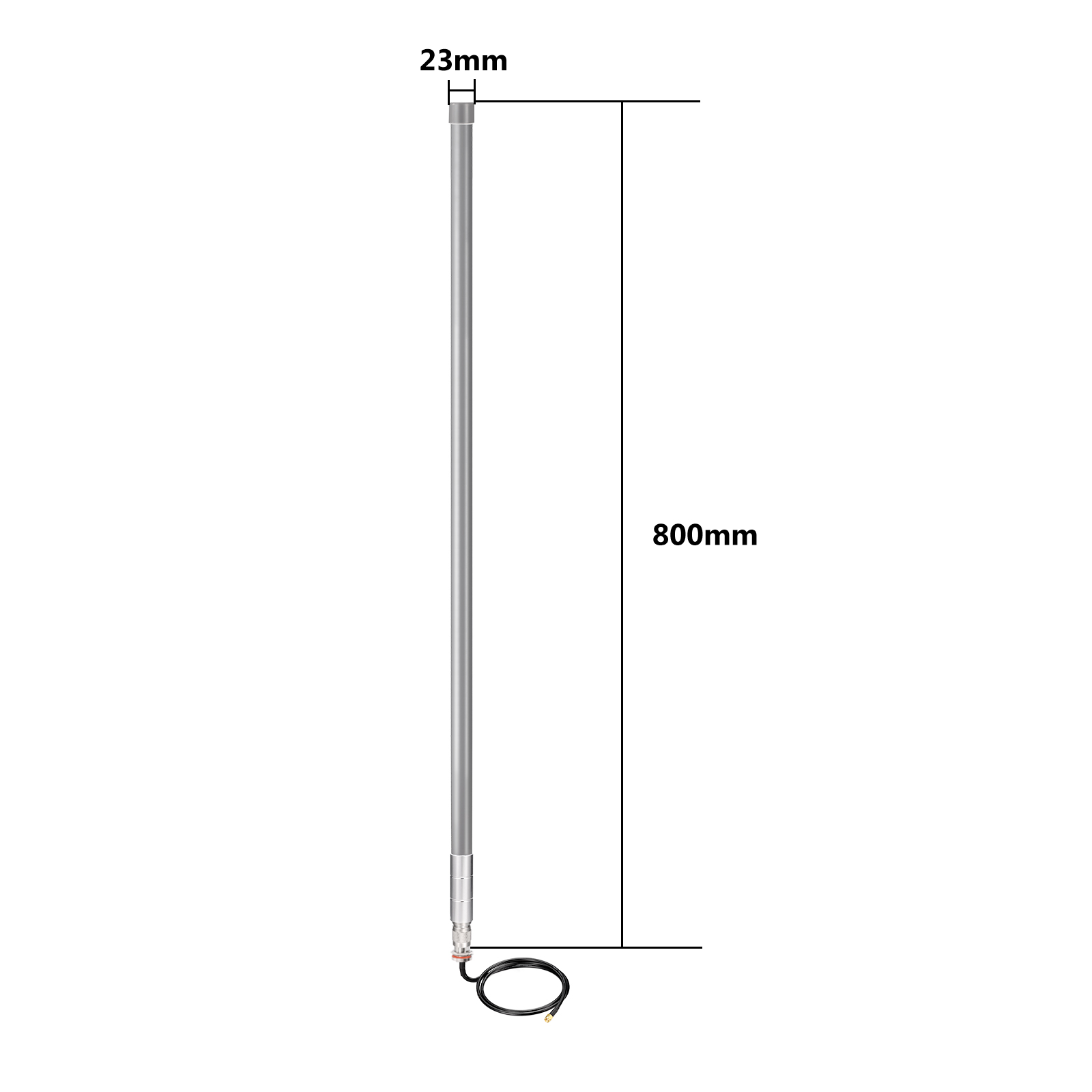

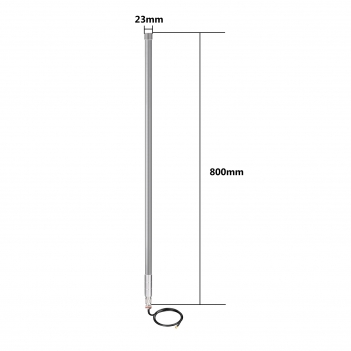

Antenna Length: 31.5inch/2000px
VSWR: <2.5
Polarization: vertical
Impedance: 50 Ohm
Diameter:
Aluminum alloy base: 21.8mm
Middle: 20mm
Top: 23.2mm
Installation method: Pole-holding (Pole is not included)
Hoop size: small 17-22 mm; large 22-52 mm

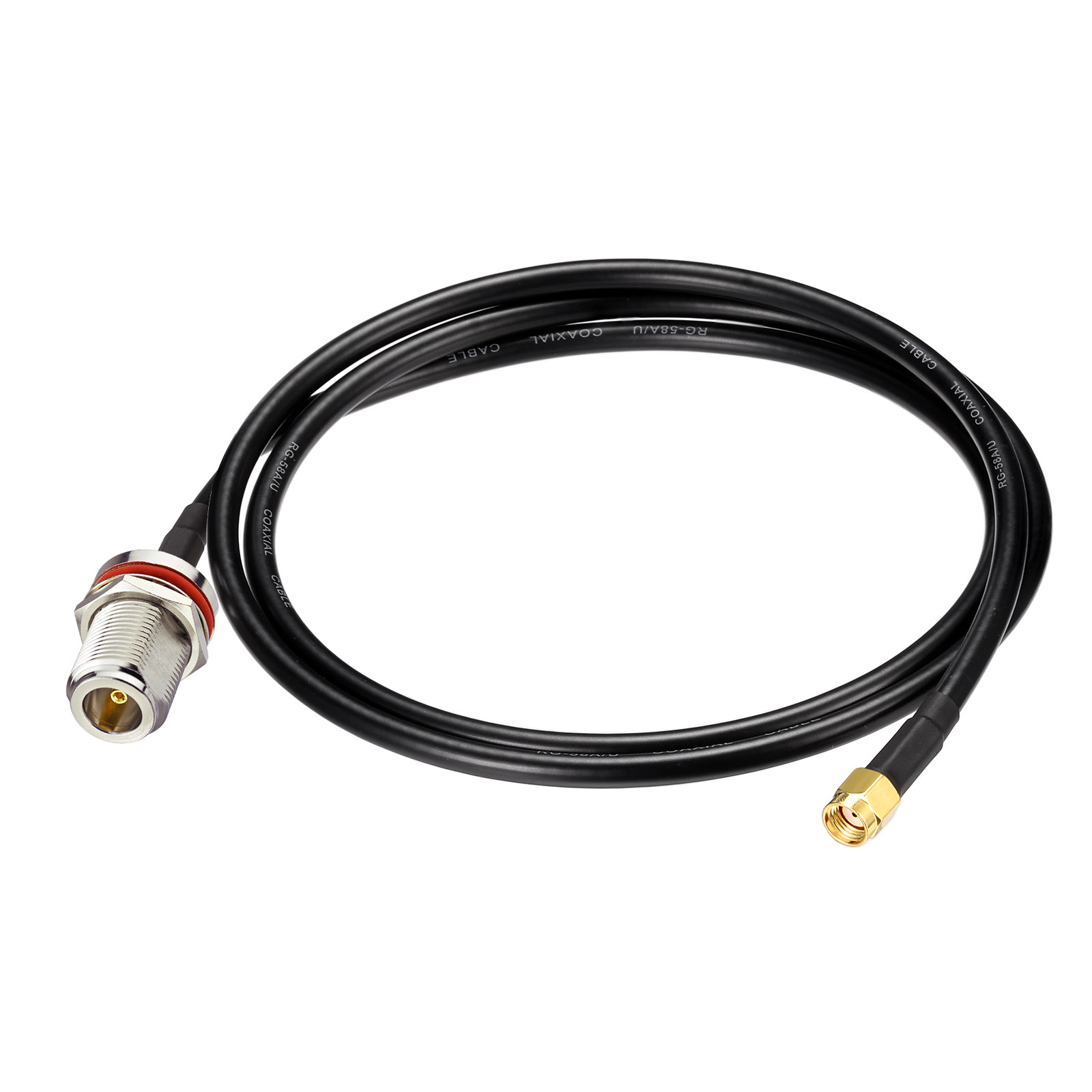

Extension Cable: N Female to RP-SMA Male With 3 Meter Low Loss RG58 Cable

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

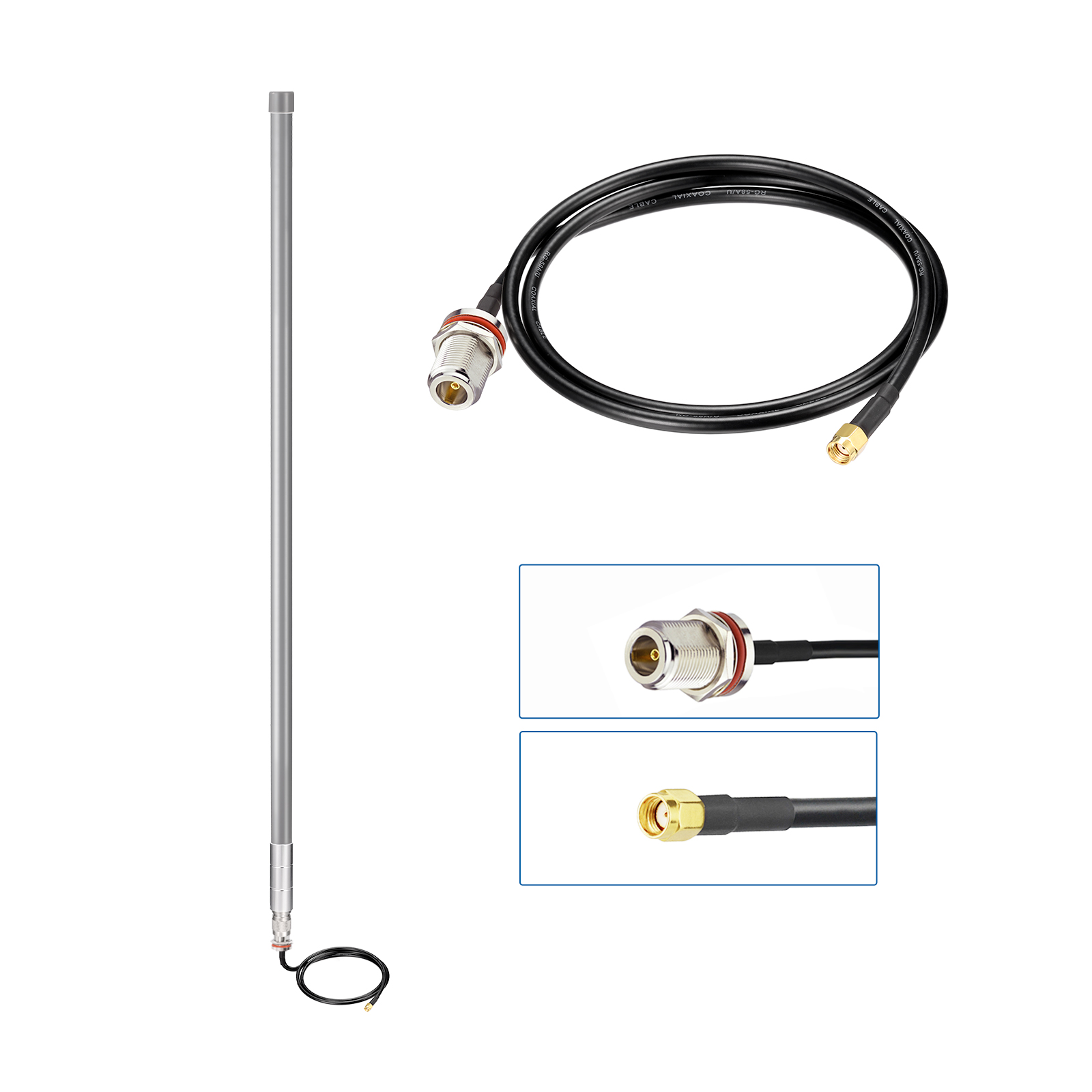

Packing List: 1* Fiberglass LoRa Antenna + 3 Meter Low Loss RG58 Extention Cable( N Female to RP-SMA Male) + 1* U-bolt Clamp



The higher the dBi of the antenna, the higher the gain, but less of a broad field pattern, meaning that the
signal strength will go further but in a narrower direction, for better performance, please select proper dbi
according to your surrounding location.
Lower dBi is great for urban area, or high hotspot density areas.
And higher dBi is great for long range in suburban area or high area without obstacles.
