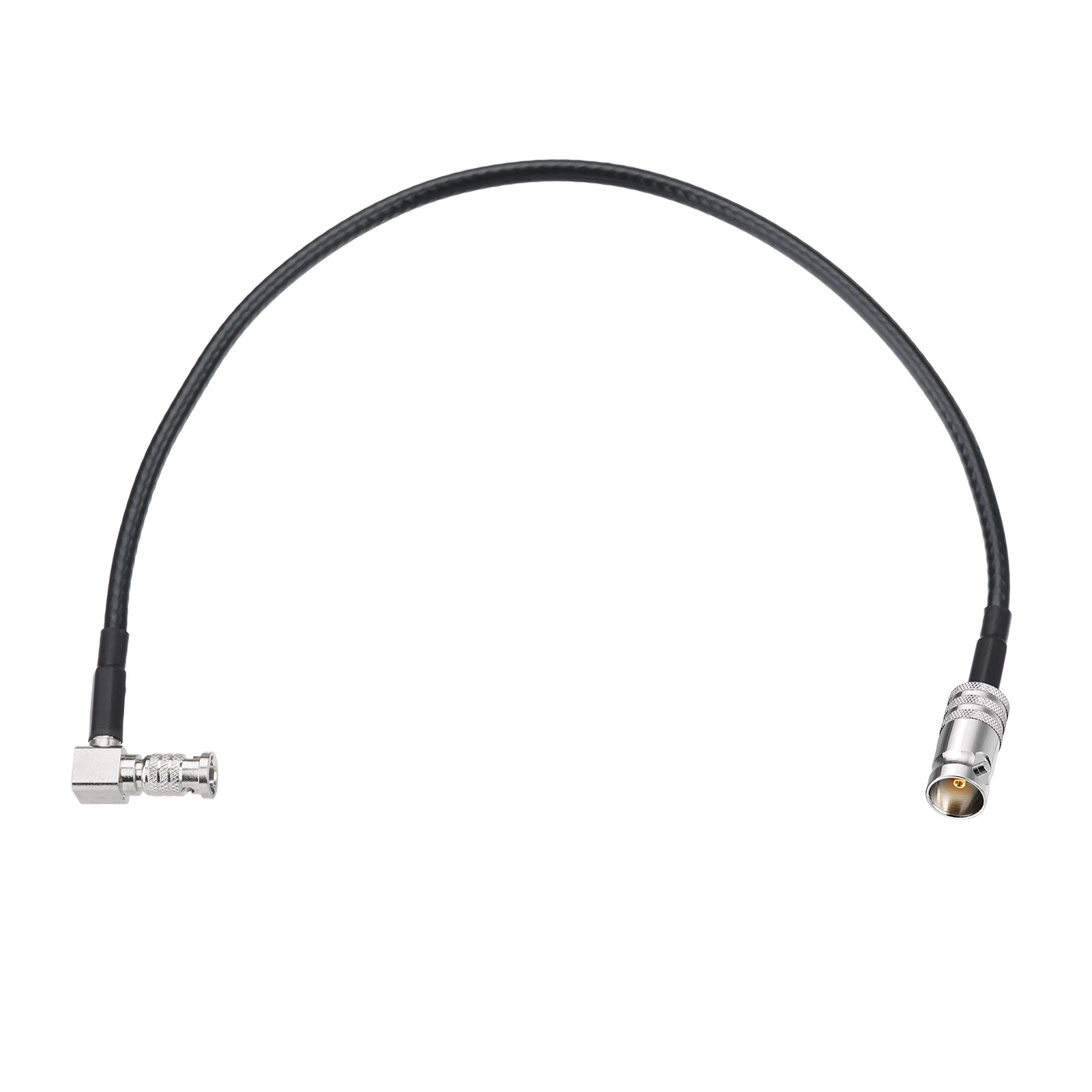

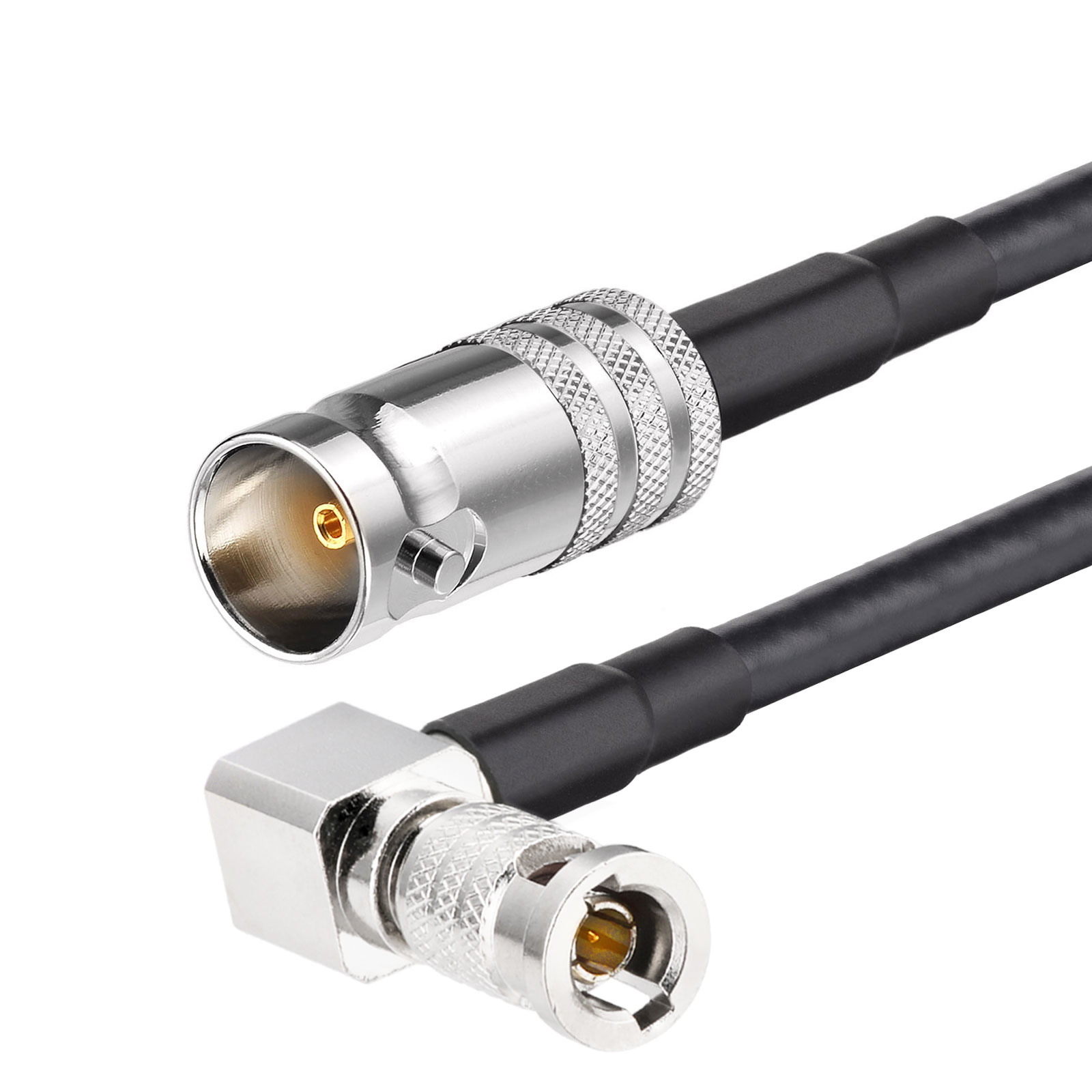

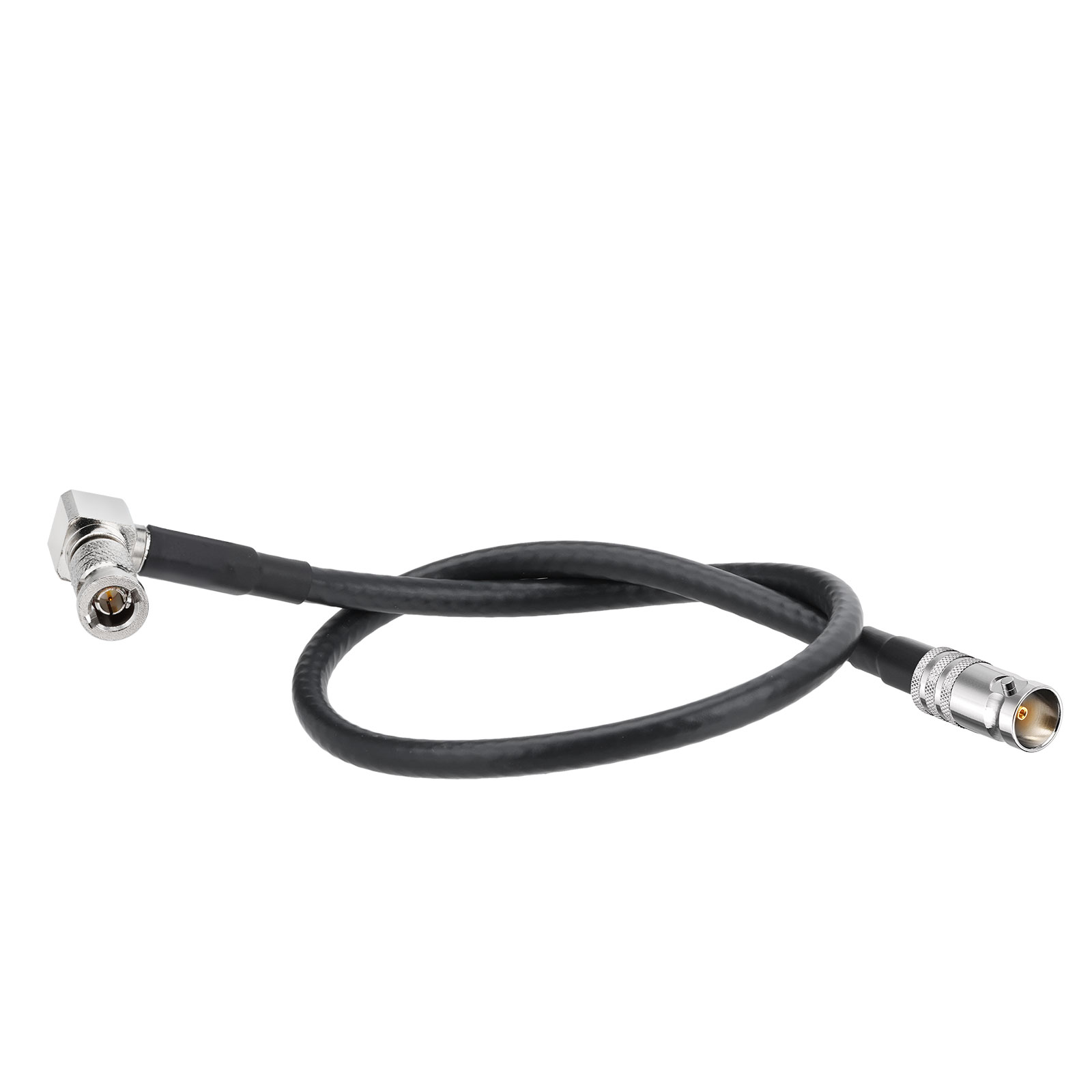

30 CM 1855A HD BNC Jumper Cable 1FT HD SDI 3G 6G Belden 1855A Cable BNC Female to HD BNC Male Right Angle 75 Ohm Digital Video Cable
Unit Price: $6.00
sku:AC-B04SJ-B07RA-1855A-30
Length(cm)
Real Time Availability
Stock: 10000
Quantity: Units

Cable Type: Belden 1855A Connector 1 Series: BNC Connector 2 Series: BNC Connector 1 Gender: Female Connector 2 Gender: Male Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Right Angle Cable Impedance: 75

1FT HD-SDI/3G/6G/ Belden 1855A Cable BNC to HD BNC Digital Video Cable

Connector 1: BNC Female Connector;Connector 2: HD BNC Male Right Angle Connector | Impedance: 75 Ohm | Cable Type: Belden 1855A;|Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081)

BELDEN 1855A PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE:

Compatible with HDTV and professional SDI applications: Supports HD-SDI, 3G-SDI, component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible with a wide variety of popular software, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Decimator. Our HD-SDI cable is great for use in HD-serial digital video transfer,HDTV upgrades, broadband facilities, and other applications with HD-SDI video.


3G/6G/HD-SDI Cable BNC to HD BNC Digital Video Cable(Belden 1855A )

Features and Specifications:

Compatible with: SDI Vedio Camera Monitor Display Camcorder Recorder Converter
Connector 1: BNC Female Connector
Connector 2: HD BNC Male Right Angle Connector

Cable: Belden 1855A 75 Ohm Coaxial Cable
Length: 30CM/1FT
Impendence: 75 Ohm



AWG: 23

Stranding: Solid

Conductor Material: BC - Bare Copper

Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene

Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper

Outer Jacket Material: PVC - Polyvinyl Chloride

Overall Diameter: 0.159"

Cables meet SMPTE 259M, 292M,424M Standards

Tinned copper braid, and Duofoil shields, for excellent shielding

Hand assembly and testing in-house

Applications Include:

High-Density HD Video Routing

HD-Serial Digital Video

Best for Fixed HD Applications

HDTV Upgrades

Broadband Facilities

SMPTE 259M, 292M, 424M

Compatible with Blackmagic DeckLink Quad capture cards


Package List: 1 x HD BNC Cable
