Frequency Range

2400～2500 MHz

Bandwidth

100 MHz

Gain

8 dBi

Half-power beam width

H:360° V:14°

VSWR

≤1.5

Input Impedance

50 Ω

Polarization

Vertical

Maximum input power

100 W

Lightning protection

DC Ground

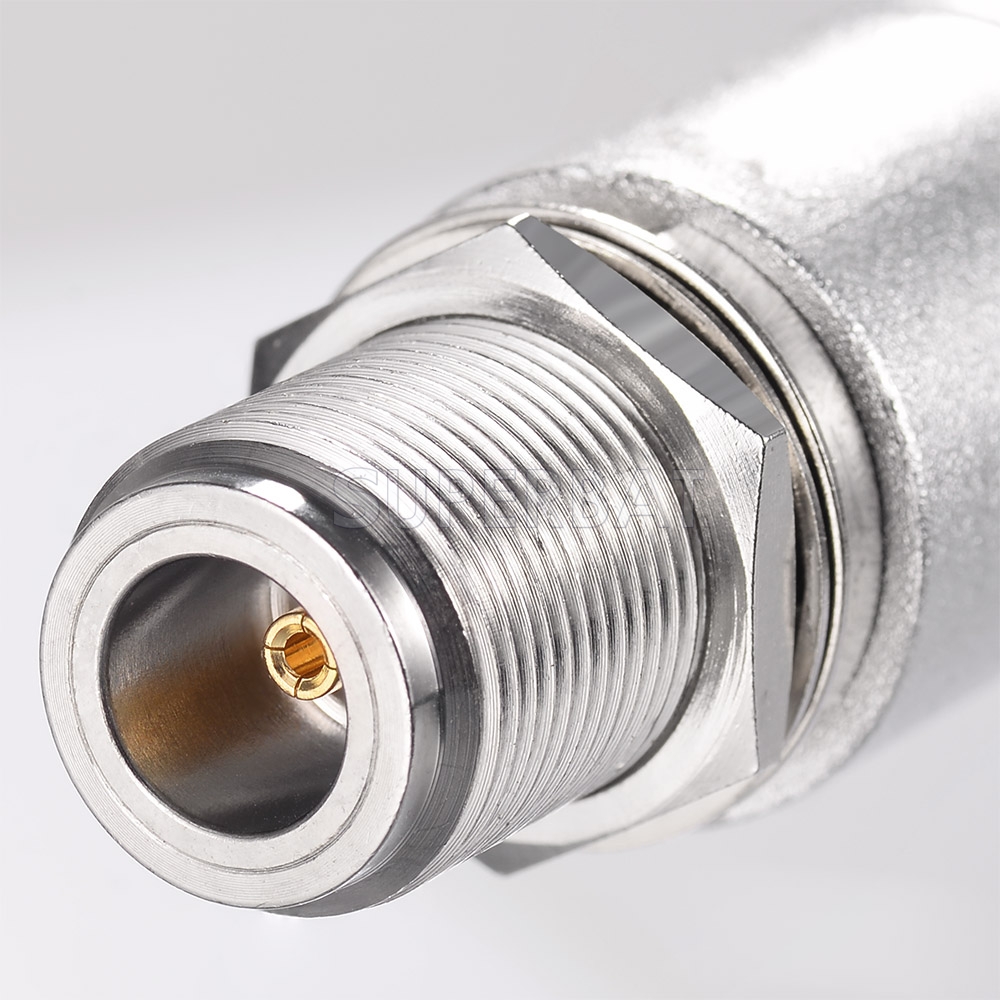

Interface connector type

N Female

Mechanical Specifications

Dimensions

Φ20*680MM

Antenna weight

0.39KG

Operating temperature

-40～60 °C

Rated Wind Velocity

60M/S

Radome color

Gray

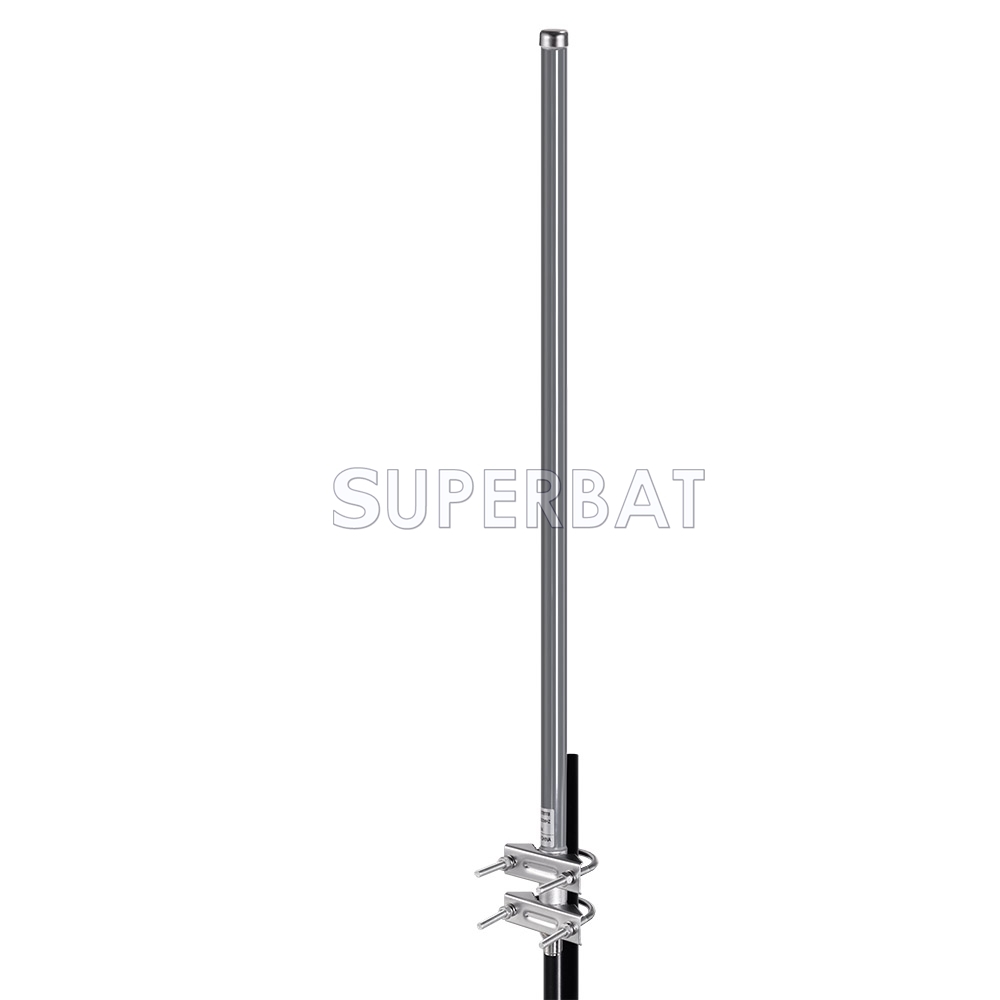

Mounting method

Pole-holding

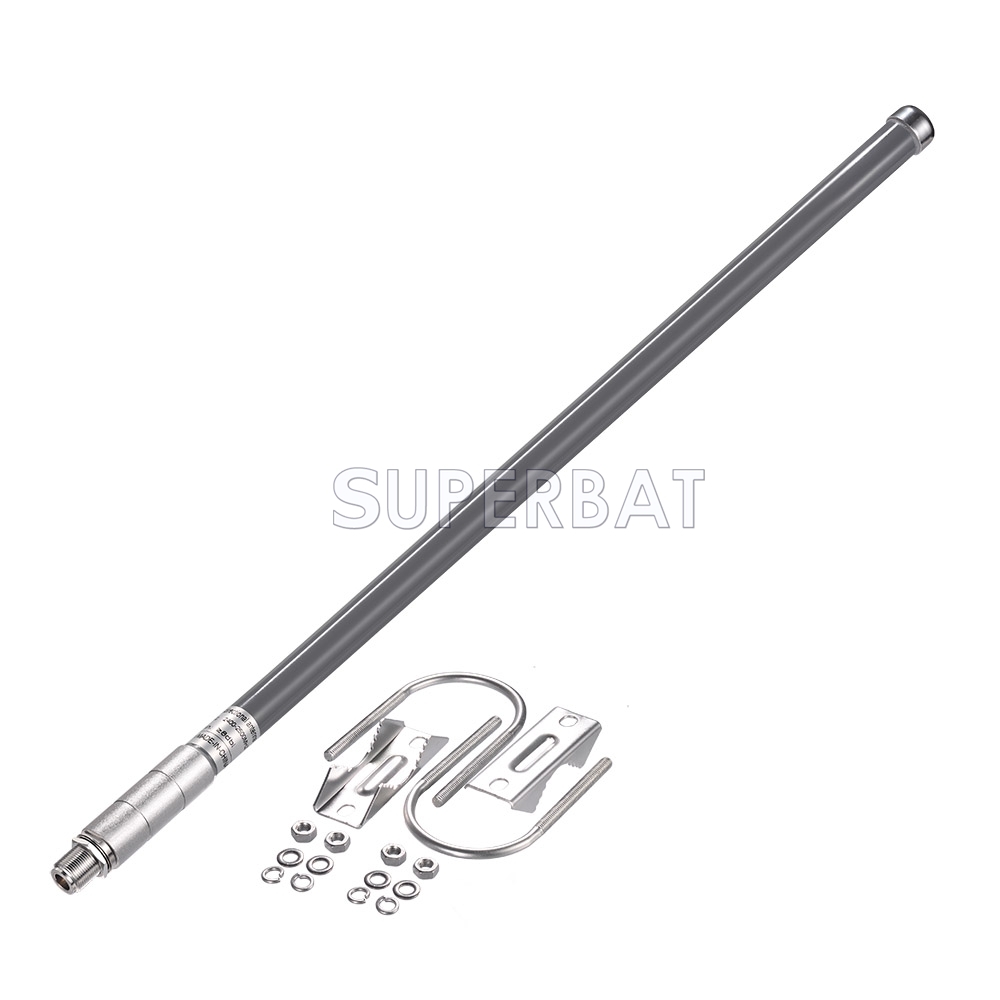

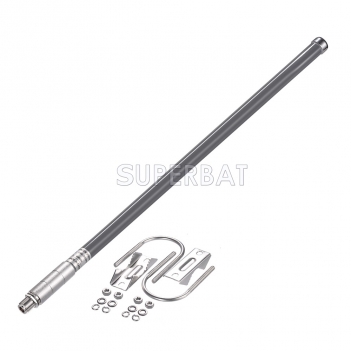

Mounting hardware

￠35-￠50MM
