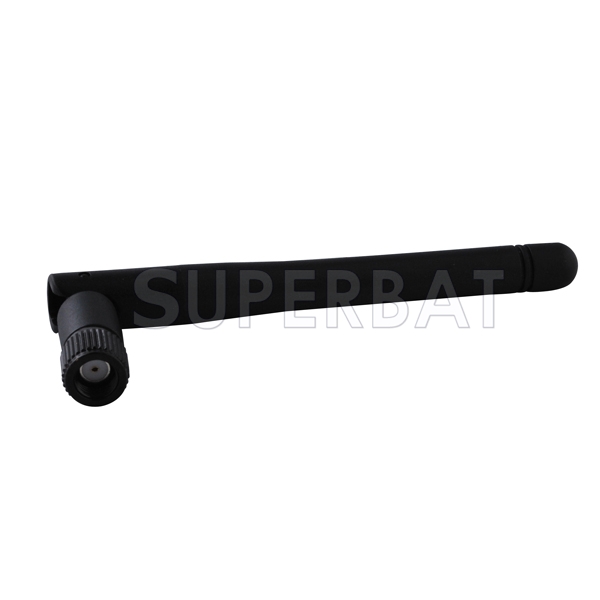

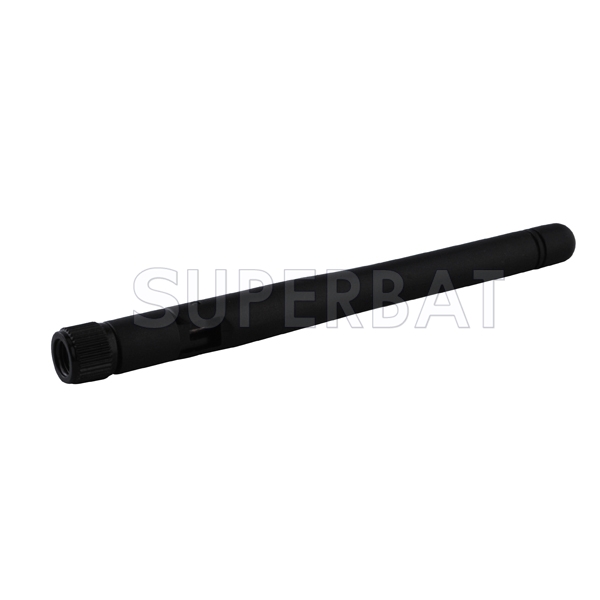

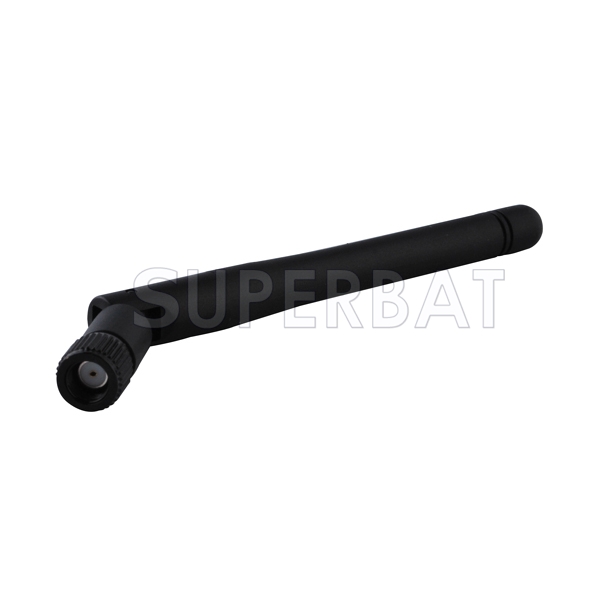

2.4GHz 3dBi Omni WIFI Antenna RP-SMA for wireless router
Unit Price: $3.00
sku:WA2-1036-S02SP-030
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.00 $2.70 $2.43 $2.19 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 9422
Quantity: Units

Type: WIFI Antenna Center Frequency: 2.4GHz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: RP Plug Straight Impedance: 50 Nominal Gain: 3dbi V.S.W.R: ≤1.5 Antenna Size: 10.7cm Length

This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 3dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs



This flexible antenna features a tilt-and-swivel RP-SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with RP-SMA connectors including D-Link, Linksys and others.




Applications:
IEEE 802.11b,802.11g,802.11b/g,Wirless Lan
Omni Directional Mulitpoint applictions
Bluetooth ,Point to Mulotpoint
Pubic Wirless Hotspot
WiFi,RFID
Wireless Video Systems



Features:
Superior Performance
The Weight is light
Good appearance designs
Installed for Collinear Vertial Polarization
Multiple options
RoHS Compliant
Specification:
Frequency range : 2.4GHz
Gain : 3 dBi
Polarization : Vertical
Impedance : 50 Ohm
Connector : RP-SMA (Male)
Operation Temperature: -20~+60 °C
Diameter: 9mm
Length: 107mm
weight:11g
Flexible WiFi antenna
Tilt and swivel design
Color:Black
