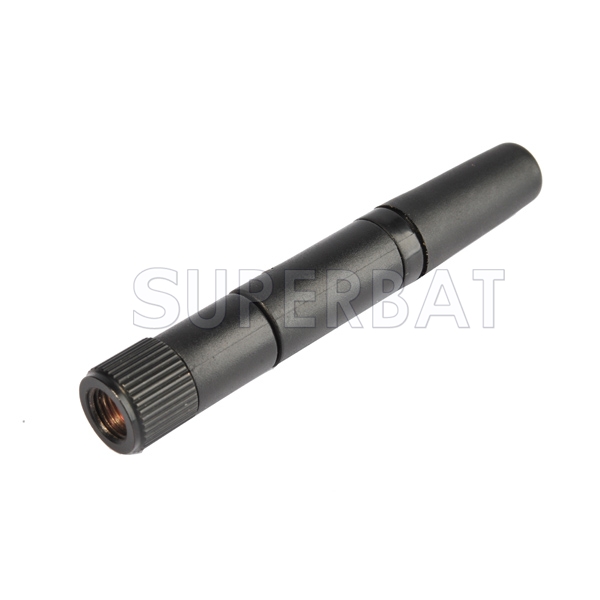

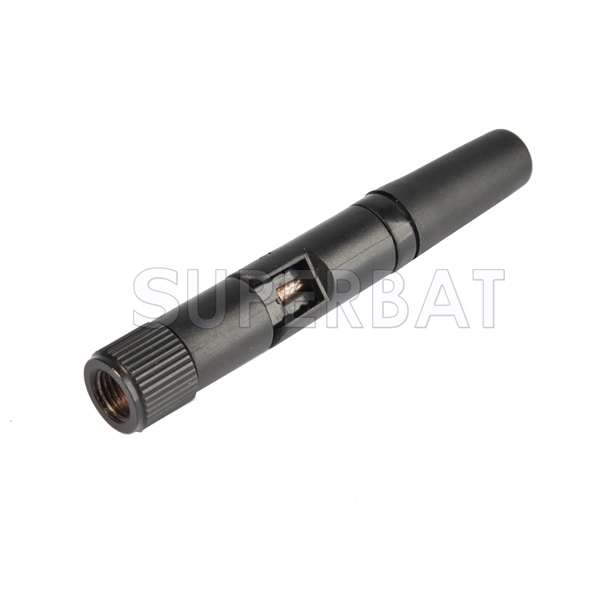

This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 2.15dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs

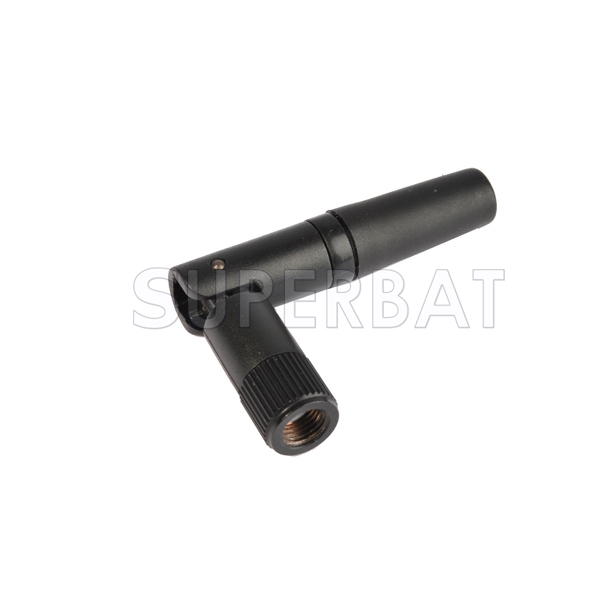

This flexible antenna features a tilt-and-swivel SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA connectors including D-LinkR, LinksysR WET11 and others.
Frequency(MHz ):2.4Ghz
VSWR ≤1.5
Gain(dBi): 2.15
Return Loss(dBi):17
power(W):50
Input Impedance(Ω):50
Antenna Length(mm):67

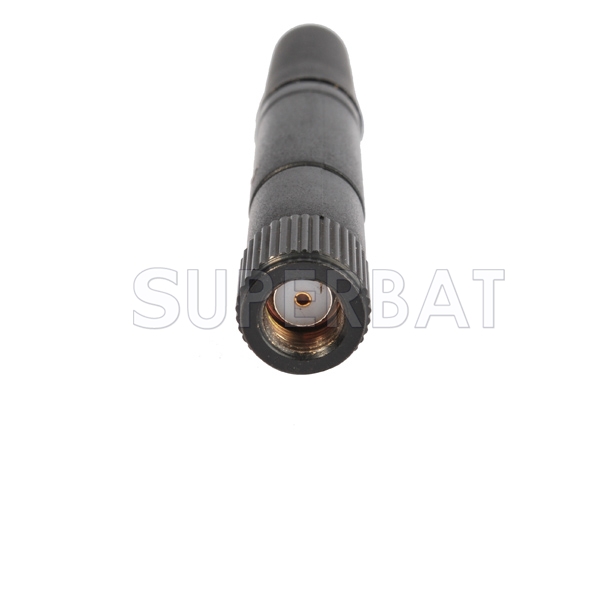

Connector:RP SMA male (Socket pin ) default /FME(Straight/Right Angle )etc.
Weight:0.008kg
