Frequency Range: DC -600Mhz;Mounts & screws included;Connector: SO-239 ( UHF Female );Max.Power Rating: 1KW

Converted for amateur radio signal design

High isolation ensures stable and reliable signal transmission;

Low loss, low VSWR, efficient signal transmission

Robust and durable with stable performance

The main body employs a rigid zinc alloy die-cast support, offering high mechanical strength and stable electrical characteristics

Only one channel remains active at any given time, enabling two devices to share a single antenna or one device to connect to two antennas

Manual switch

Switch components are constructed from large contact strips, ensuring stable contact and resistance to ageing

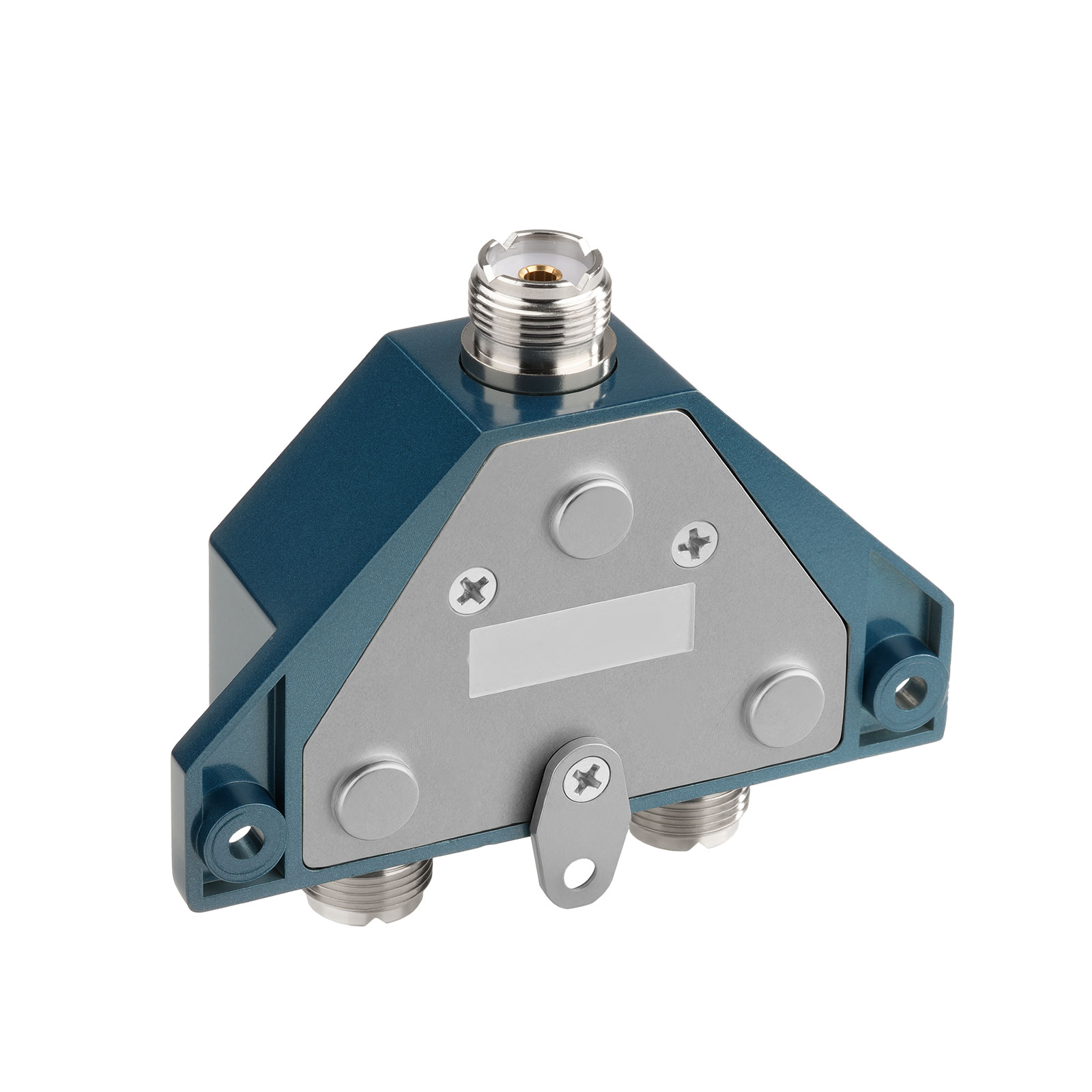

Pre-drilled mounting holes and three screws provided for convenient installation and secure fixation

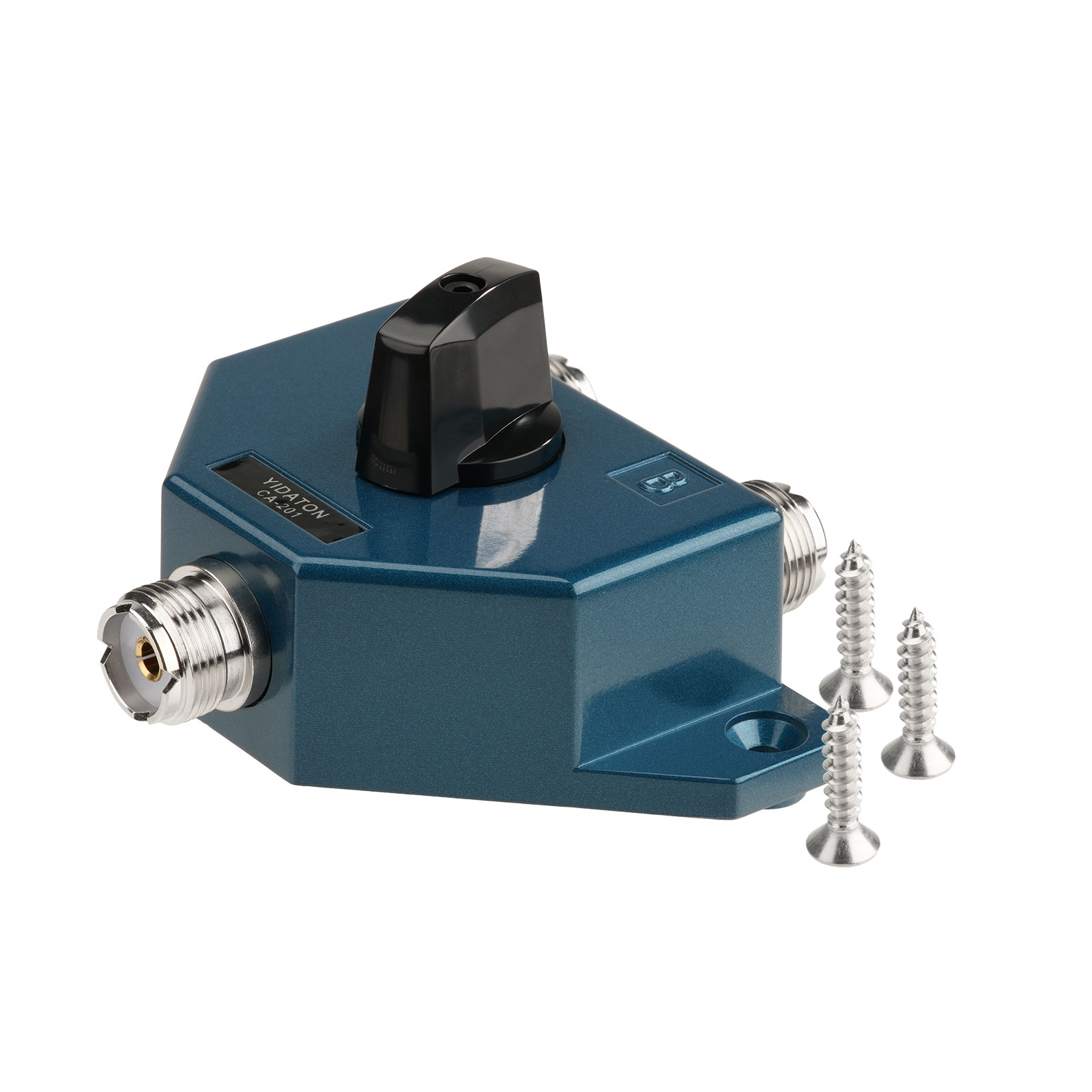

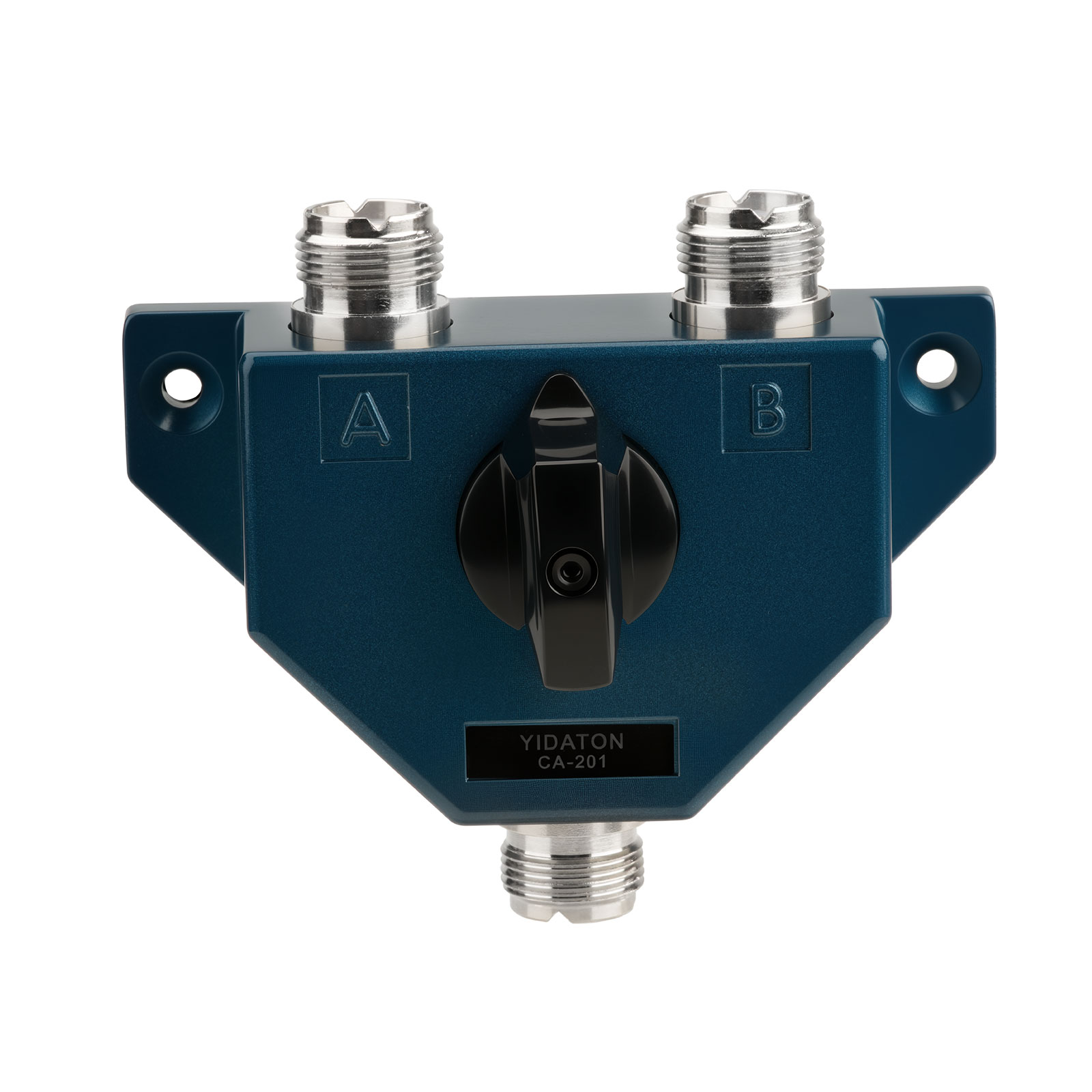

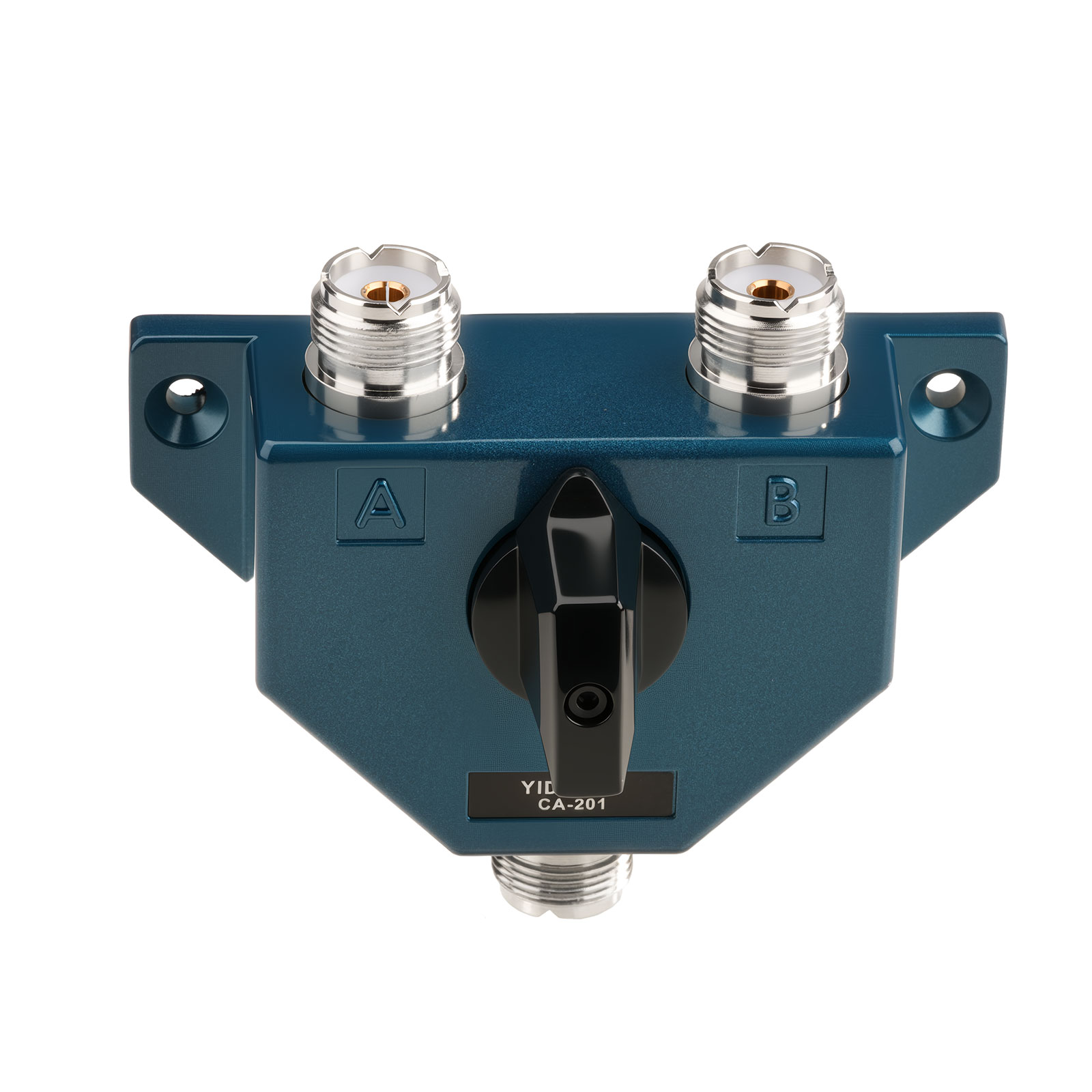

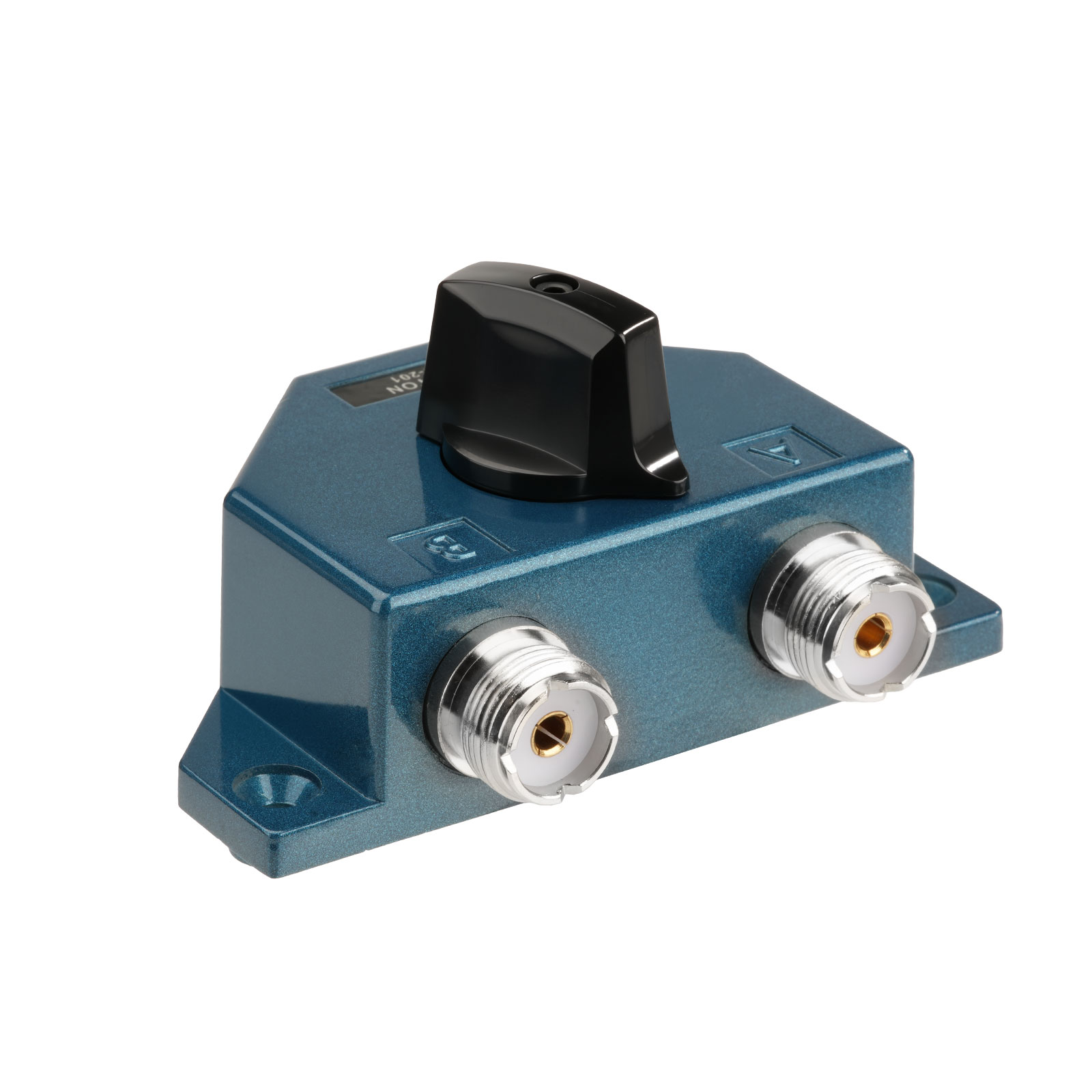

Coaxial Switch

Material: Zinc alloy monobloc construction with baked enamel finish for rustproofing!

Frequency Range: DC–600 MHz

Mounts & screws included

Compact Metal Housing

V.S.W.R.: Below 1.2

Insertion Loss: Below 0.2dB

Isolation: Above 50dB

Output Ports: 1-to-2 or 2-to-1

Power Handling: 1KW (Continuous Wave)

Impedance: 50 Ohms

Interface: SO-239/UHF Female Connector

Color: Blue

Dimensions: 77mm × 93mm × 53mm

Weight: 385g
