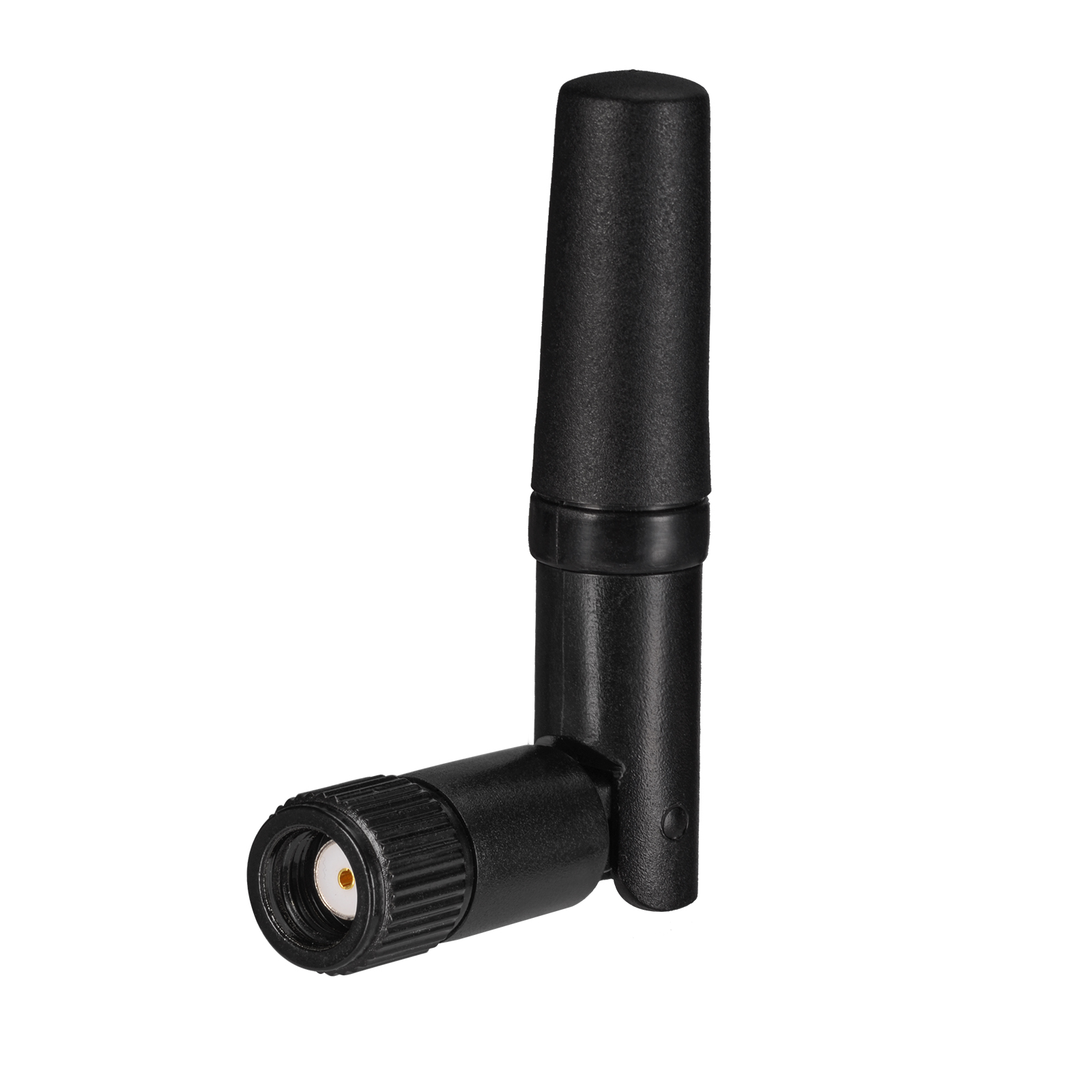

2 Pairs 2.4GHZ 5GHZ Dual Band WiFi Antenna+ RP-SMA to U.FL IPX IPEX Pigtail for TP-LINK ASUS NETGEAR Linksys D-Link Wireless Routers
Unit Price: $10.80
sku:WA2-0272-S02SP-021x2+AC-S02BH-U04RJ4-F081-25x2
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $10.80 $9.94 $8.96 $8.10 ASK
saving% 0% 8% 17% 25% -
Real Time Availability
Stock: 10000
Quantity: Units

Type: WIFI Antenna Center Frequency: 2.4GHz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Straight Impedance: 50 Nominal Gain: 2dBi V.S.W.R: ≤1.5 Antenna Size: 6.7cm

Electrical Specifications:

Frequency range: 2400-2500MHz/5150-5850MHZ

Gain: 2dBi

V.S.W.R. < 1.5

impedance: 50Ω

Maximum input power: 50W

Specifications mechanical Interface: RP SMA Plug (female socket)

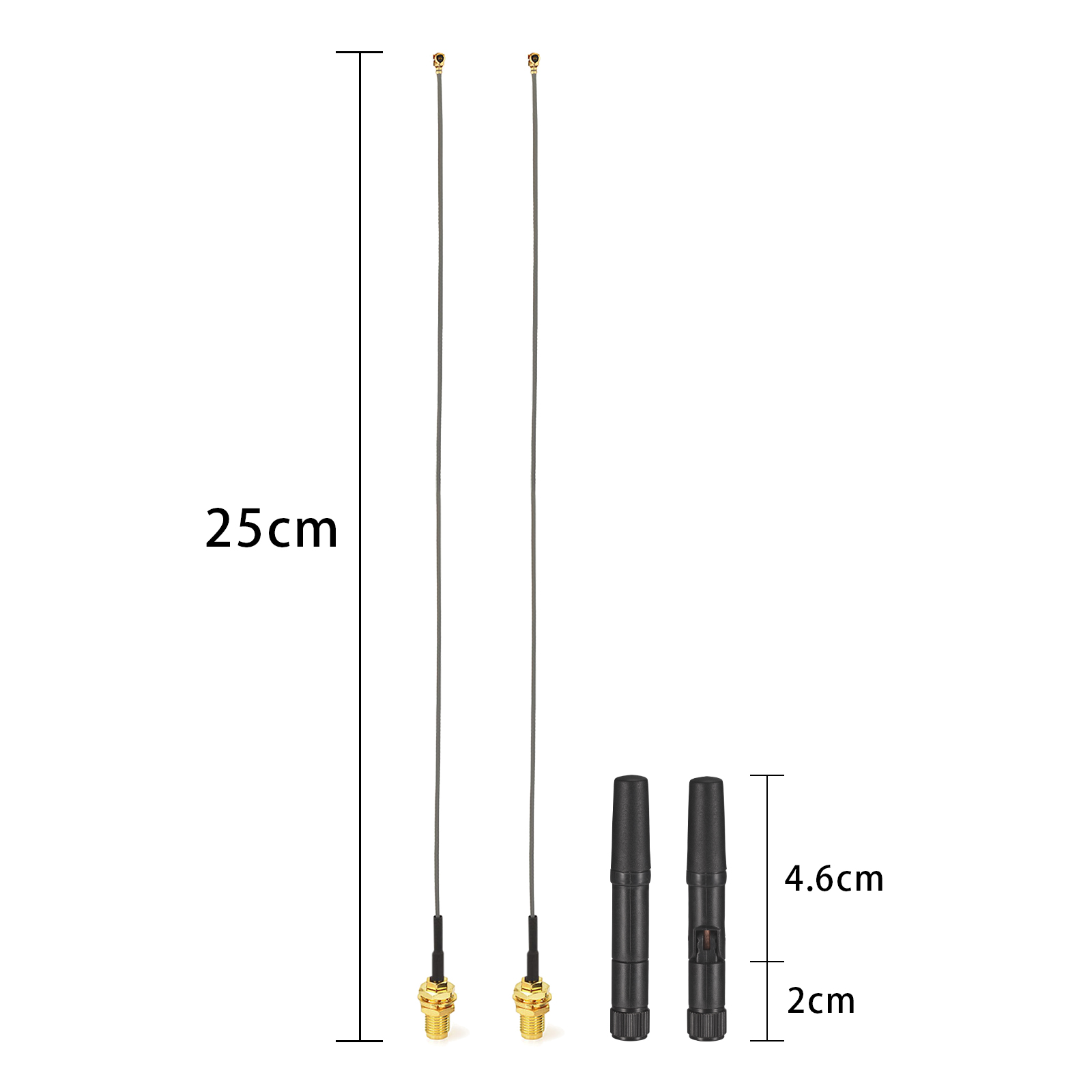

Antenna length: 66mm

Condition Application Indoor

Operating Temperature: -40 ~ + 85℃

Replace temperature: -55 ~ + 100℃

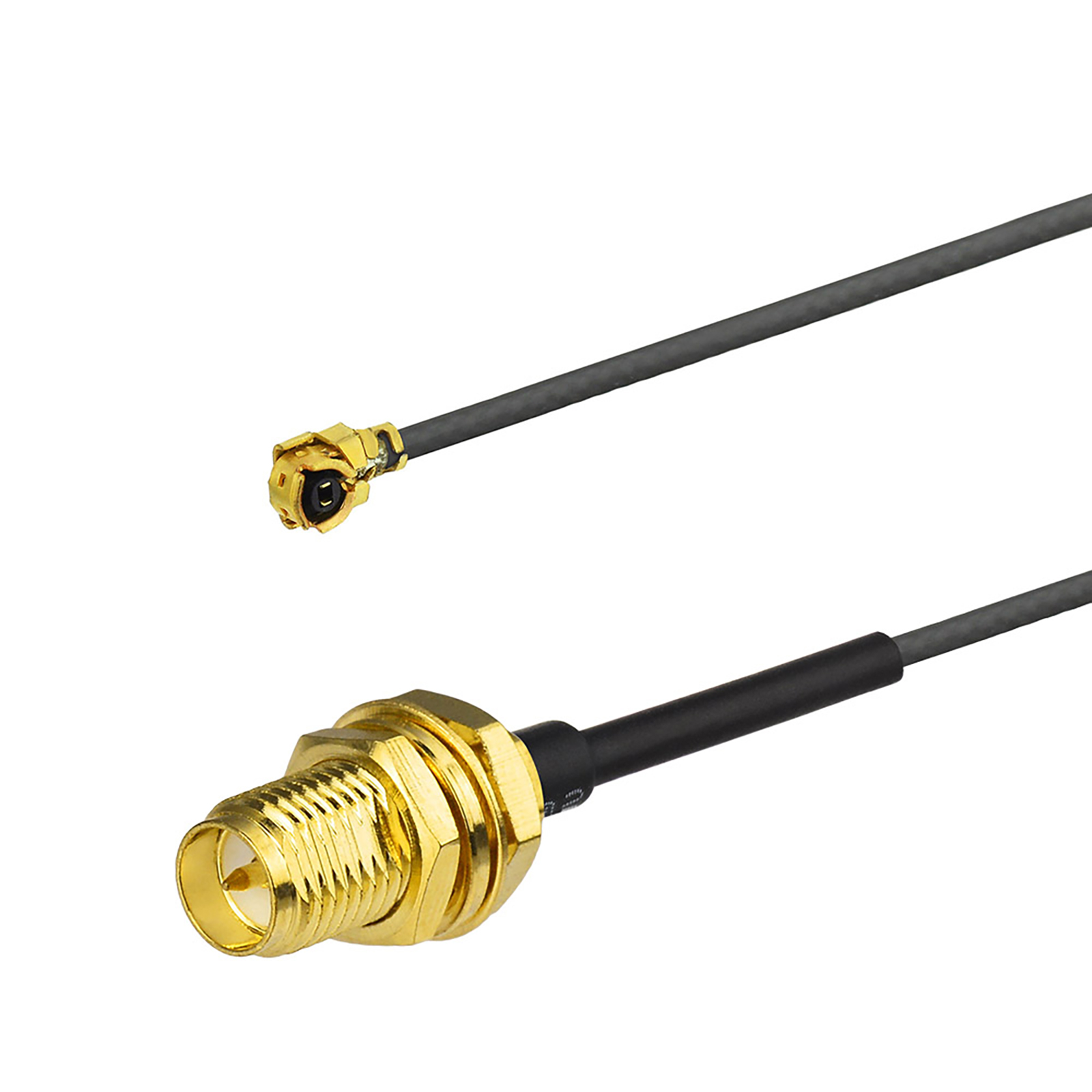

Extension Cable: IPEX to RP-SMA Jack Male 25cm Cable Assembly

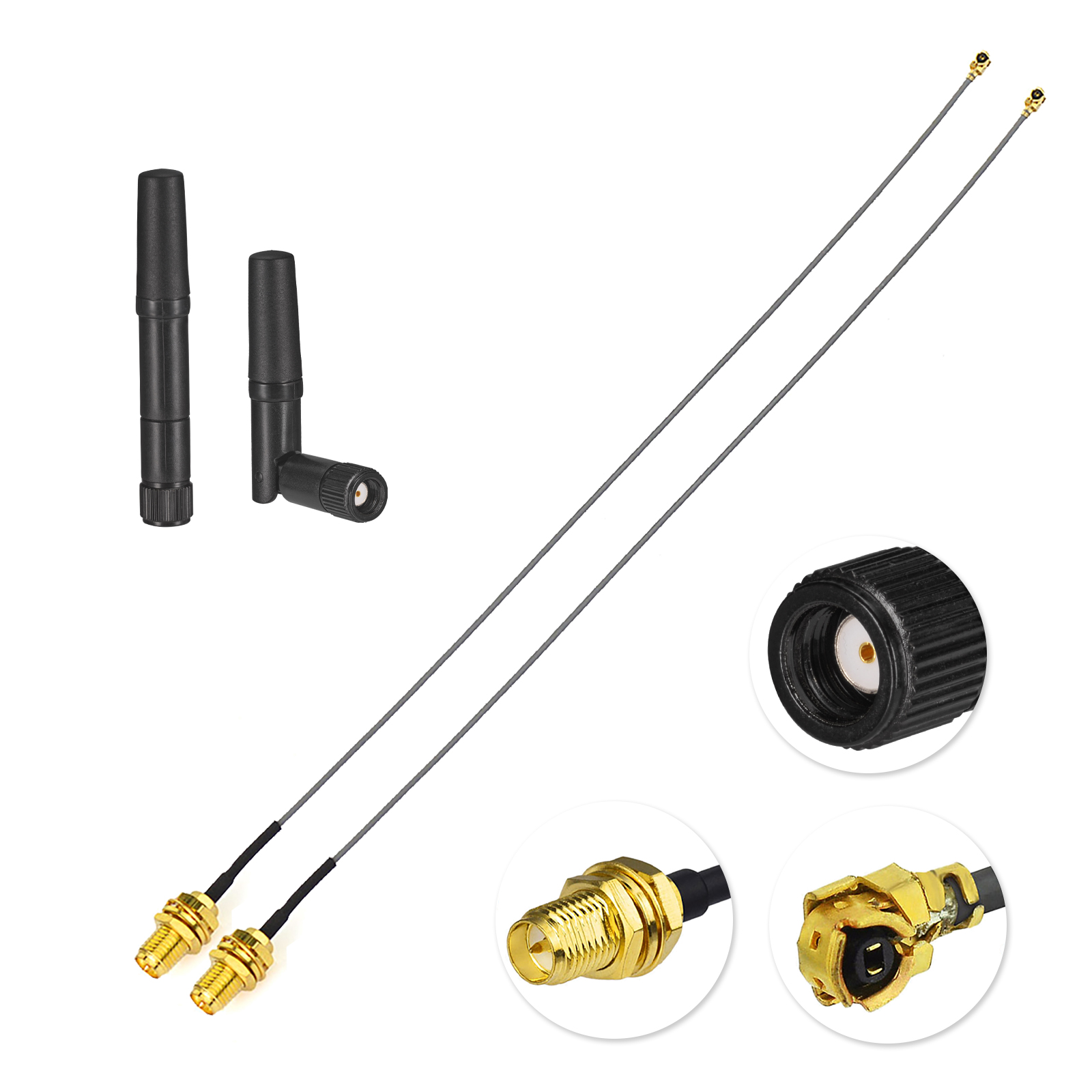

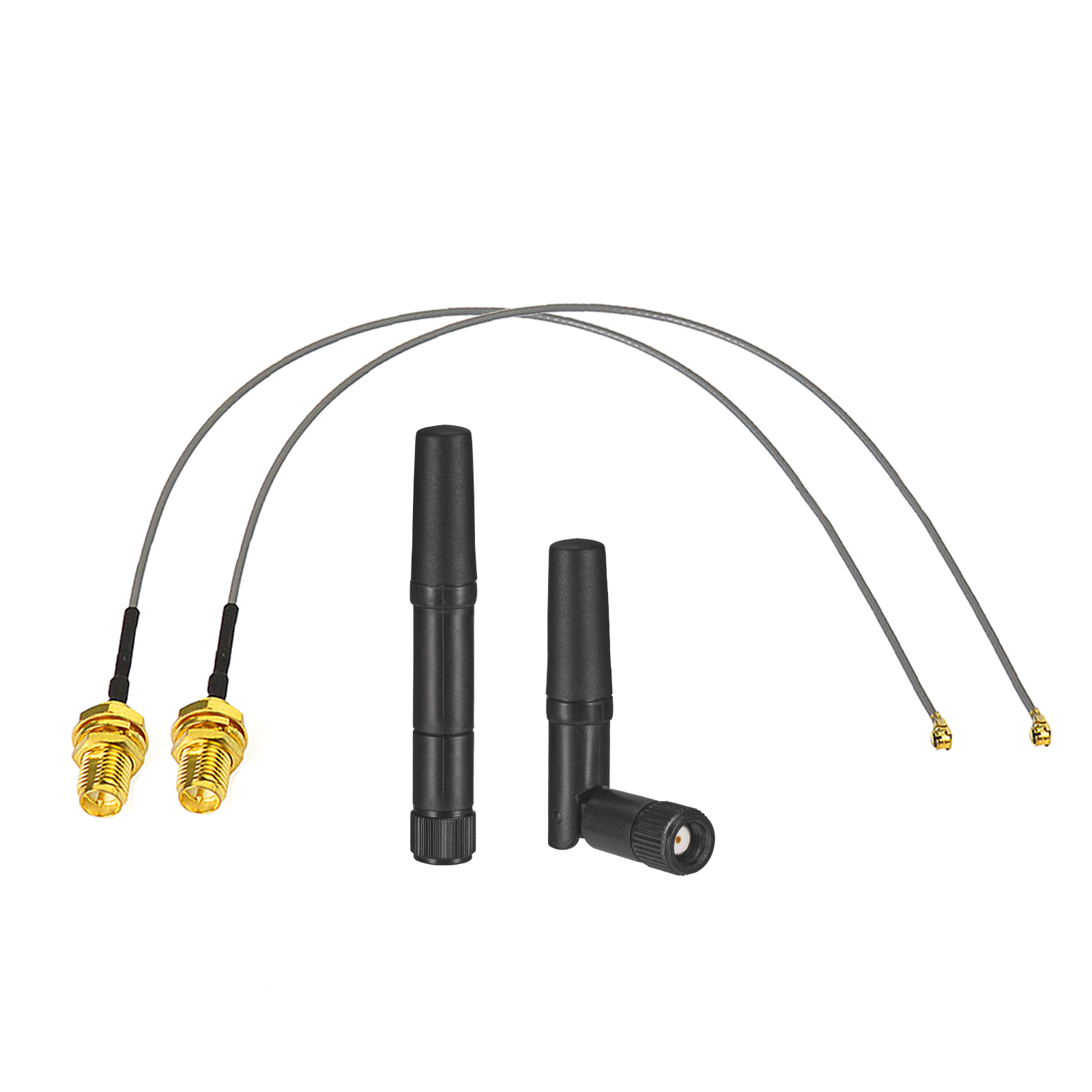

Packaging included: 2X 2.4GHZ 5GHZ dual band antenna + 2X IPEX to RP-SMA cable extension



Application Apparatus:
TP-LINK ASUS NETGEAR Linksys D-Link Wireless Routers;
Computer Wireless Network Adapter PCI PCIe Cards ;
Notebook & Computer External USB Wireless Network Adapter;
WLAN AP & Hotspot Wireless Range Extender;
Remote Video Surveillance IP Camera;
Smarthome System;
Notebook & Computer External Bluetooth Adapter;
TP-Link Router Applications: TL-WN751ND, TL-WN781ND, TL-MR3220, TL-WDR3500, TL-WR841ND, TL-WR741ND, TL-WR743ND, TL-WA701ND, TL-WA730RE, TL-WA5110G, Archer C2600, Archer T2UH, Archer C7;
Asus Router Applications: RT-AC3200, RT-AC3100, RT-AC3167M, RT-AC88U, RT-AC68U;
Netgear Router Applications: R6400, R7000, R6700, R6220, R6050, EX7000;
Cisco Router Applications: RV110W-A-NA-K9, RV215WAK9NA;
Linksys Router Applications: EA6350, EA6100, EA7500, EA7300;
Amped Wireless Applications: RTA1200, RTA1750, RTA2600, AC1200, AC1750, AC2600, SR150, AP300, R300, SR300, 300N, R10000, R10000G, SR10000, SR20000G, AP20000G;
D-Link Router Applications: DIR-825, DAP-1360;
ZyXEL Router Applications: NBG4615, WAP3205;
