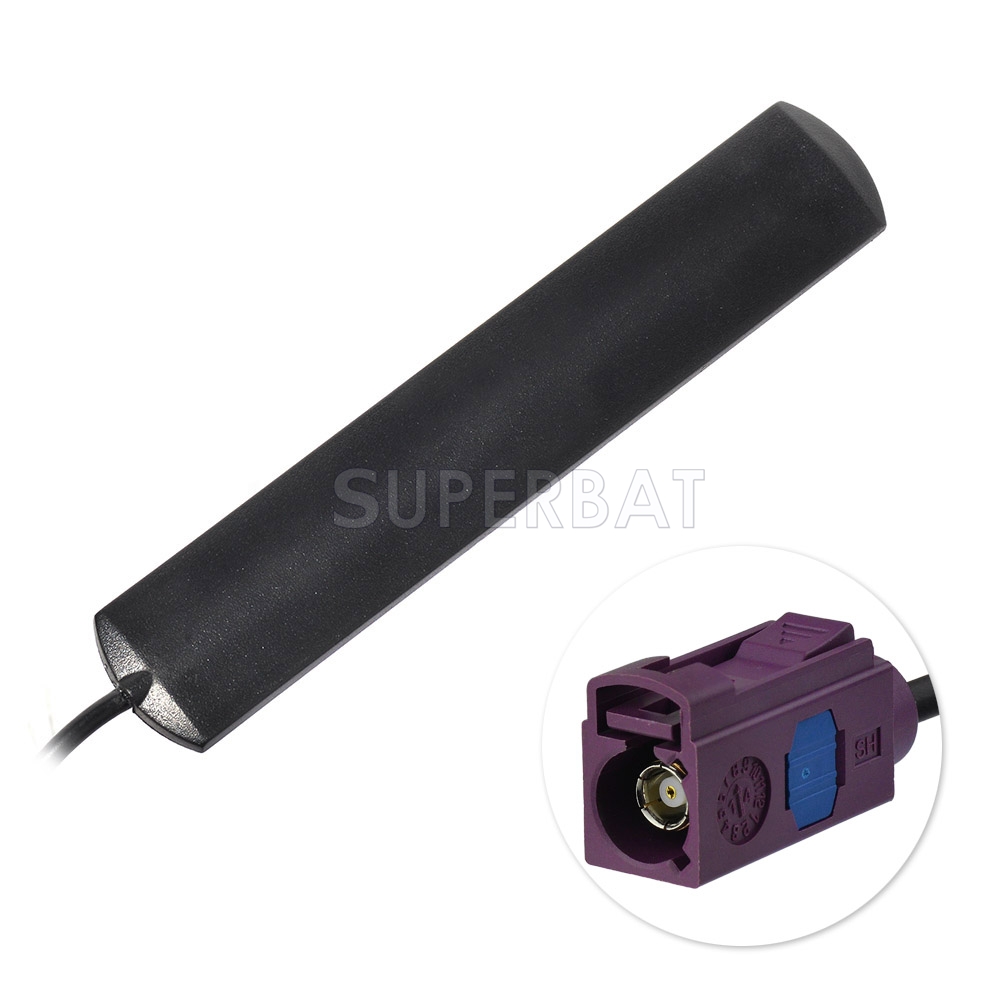

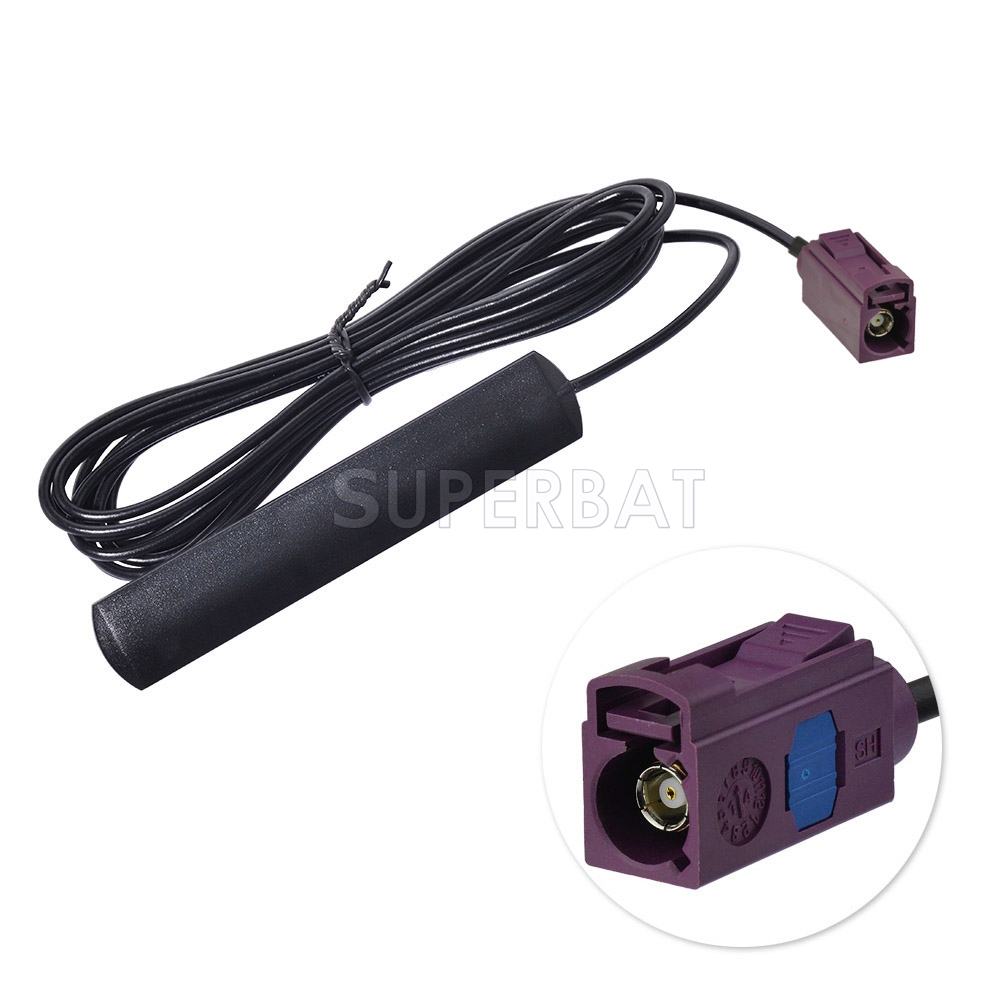

2 dbi GSM/UMTS/HSPA/CDMA Antenna 824-960Mhz 1710-1990Mhz Fakra Female Connector
Unit Price: $6.00
sku:GM3-560-F03DSJ-020-300
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $6.00 $5.70 $5.40 $5.16 ASK
saving% 0% 5% 10% 14% -
Real Time Availability
Stock: 998
Quantity: Units

Antenna Type: Glass Mount Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 824-960Mhz 1710-1990Mhz Connector Series: Fakra Connector Polarity: Standard Connector Gender: Jack Gain: 2dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 45g

Frequency Range(MHz): 824-960Mhz 1710-1990Mhz
Bandwidth(MHz): 136/280
VSWR≤1.5
Gain: 2dbi
Max Input powe(W) 60
Input Impedance(Ω) 50
Polarization Type Vertical
Antenna Length(mm):115 x 22 x 4
Cable Length: 3M
Cable Type: RG 174

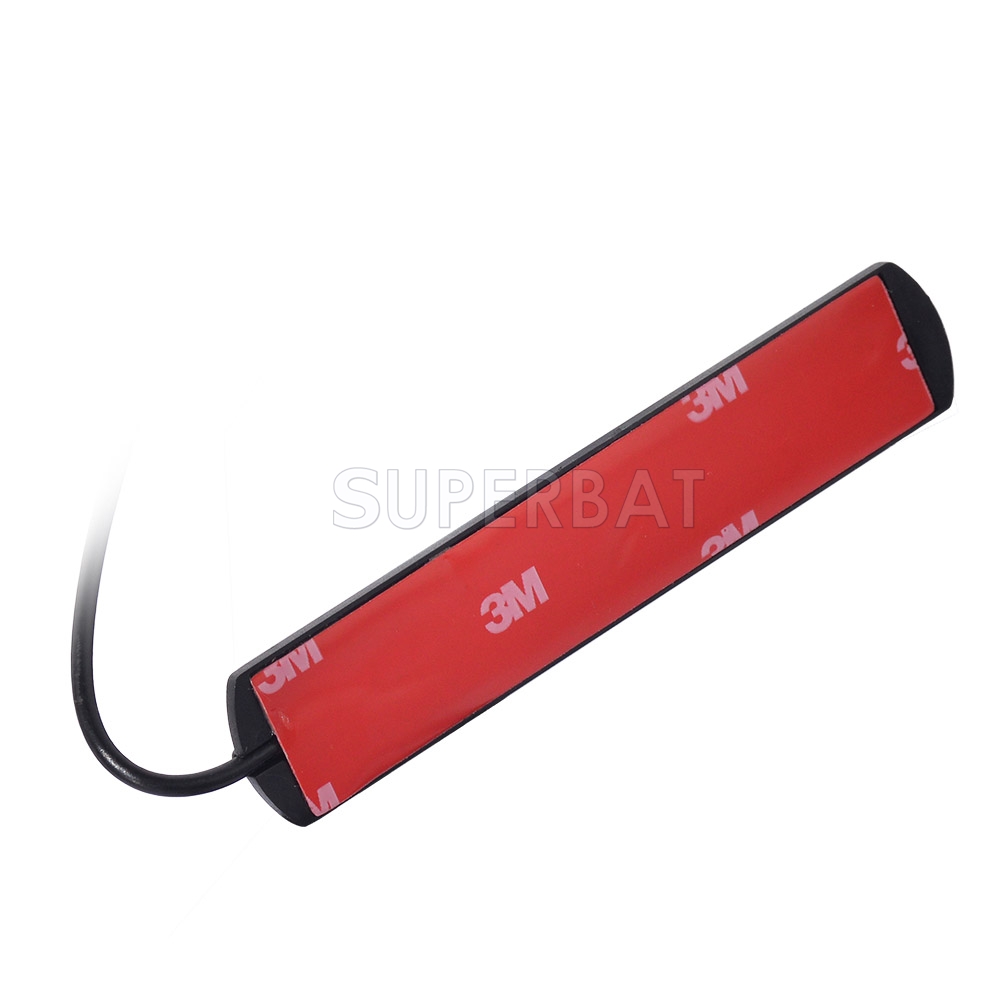

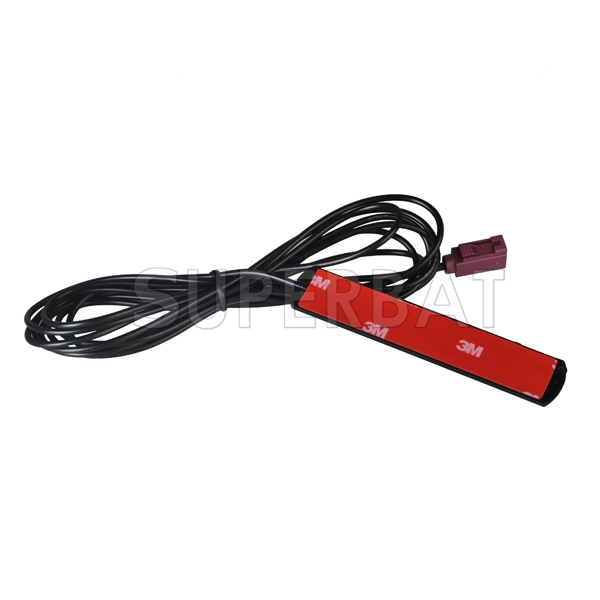

Mounting Adhesive
Cable Connector: FAKRA D female straight connector (default)
please contact us if you need other connector(SMB/SMC/BNC/FME/TNC/MCX /MMCX / Fakra )

Weight: 45g
