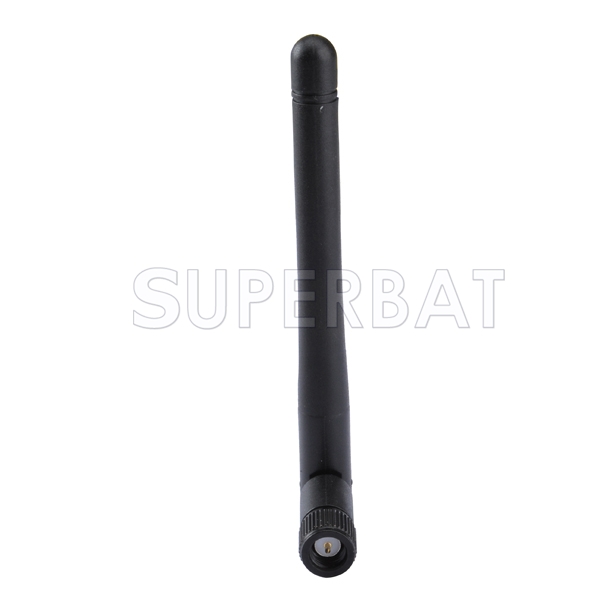

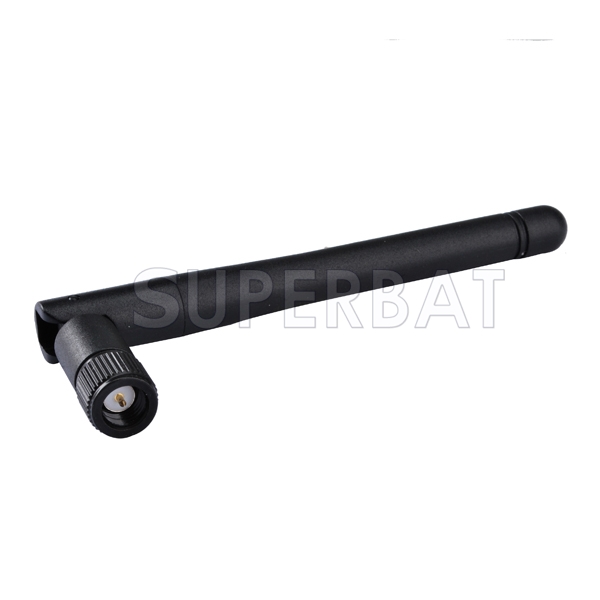

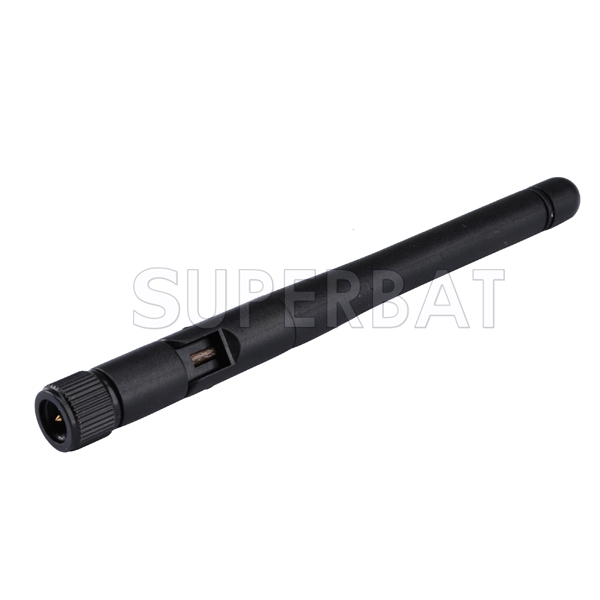

1910-2170MHz 3G directional Antenna 3dBi SMA male for 3G HuaWei Wireless router
1910-2170MHz 3G directional Antenna 3dBi SMA male for 3G HuaWei Wireless router
Unit Price: $4.32
sku:3A2-2483-S01SP4-030
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.32 $4.10 $3.67 $3.41 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Rubber Duck Network: 3G/UMTS/CDMA2000 Antenna Frequency: 1910-2170 MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 3dBi Radiation: Omnidirectional V.S.W.R: ≤2 Weight: 11g

Frequency range : 1910-2170 MHz
VSWR< 2 : 1 max
Gain: 3dbi
Impedance 50 Ohm
Polarization Linear Vertical
Omnidirectional Antenna
Polarization Vertical
Diameter: 9.3mm
With SMA plug (male pin)
Colour: black
Working Temperature : -20~+55 deg C
Length :108mm

Power:   50 W

Operating Temperature:     -20 to +55℃
Storage Temperature:     -20 to +55℃
