Frequency Range-MHz: 2400~2483MHz
VSWR : ≤1.5
Input Impedance-Ω: 50
Gain-dBi : 16dbi
Polarization : Vertical
F/B ratio-dB
Horizontal Beamwidth -°: 36
Vertical Beamwidth -°: 23
Maximum Power -W : 50
Bandwidth-MHz : 50MHZ

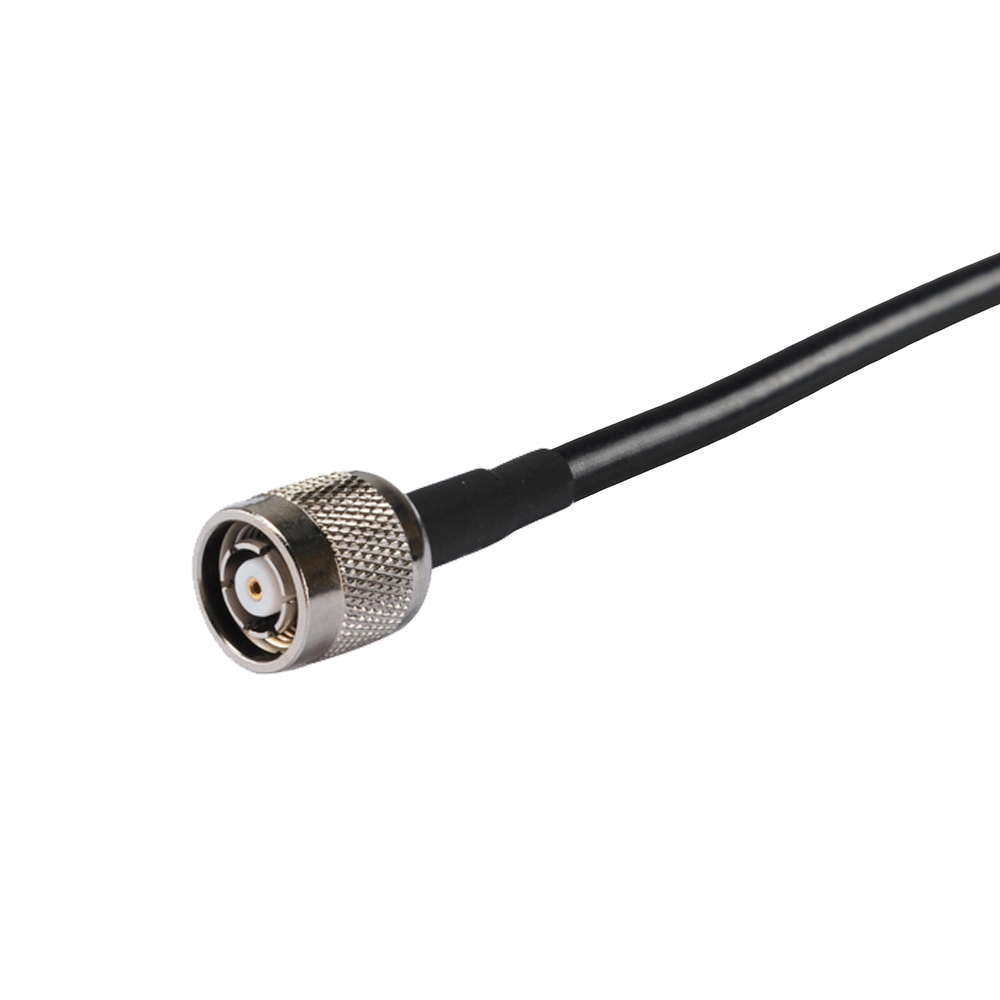

Connector: RP TNC male connector
Mechanical Specifications
Dimensions-mm
Weight-kg: 1
Length-cm :
Mounting Mast Diameter-mm: Φ50-100
Cable length- cm : 500cm
