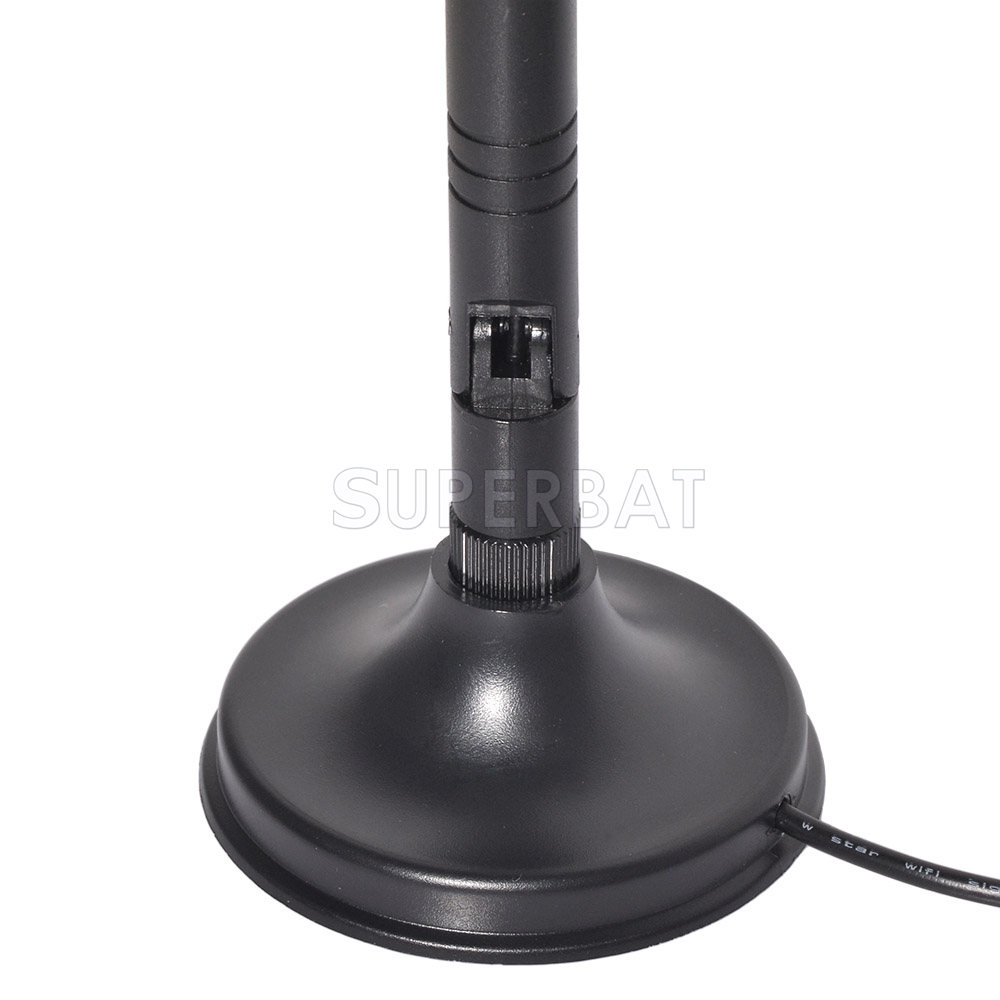

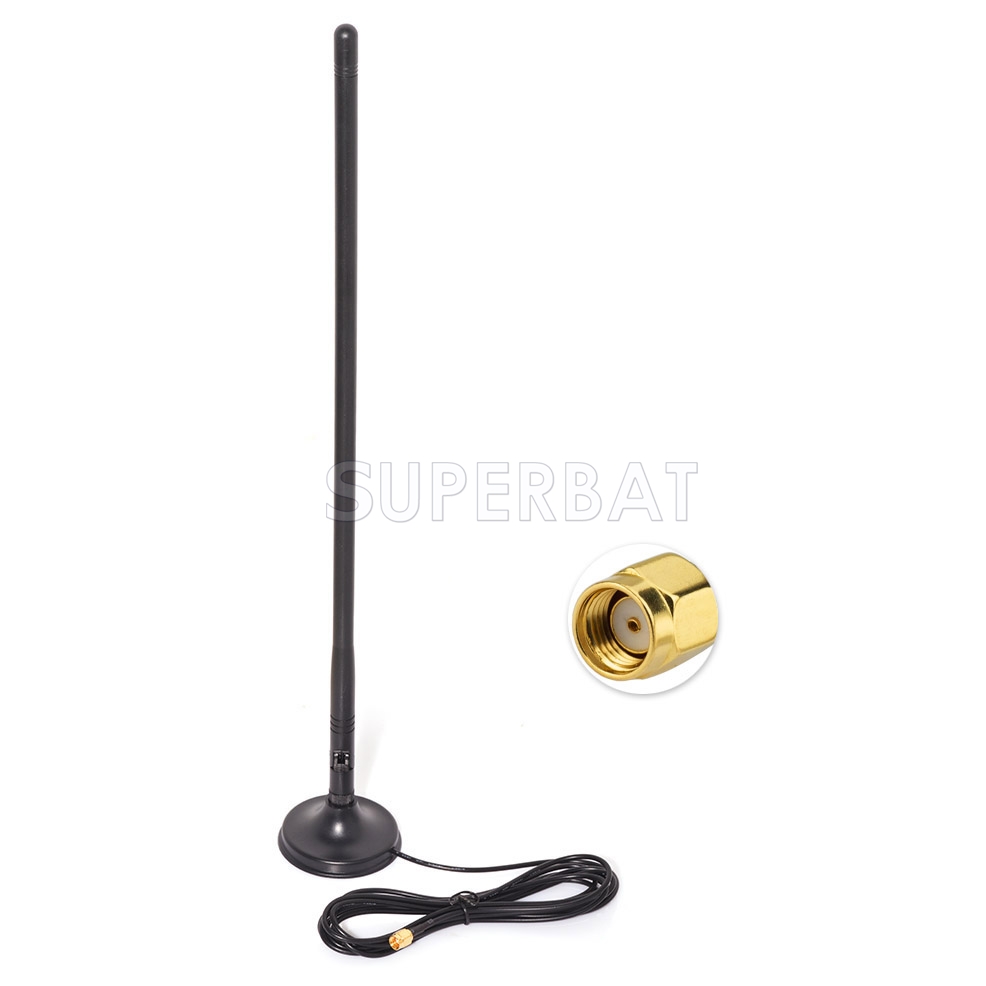

15dbi 3G/GSM/UMTS/HSUPA/HSDPA antenna RP SMA male plug 3G for Wireless& Devices
Unit Price: $18.50
sku:3A1-1493-S02SP-150-250
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $18.50 $16.65 $14.99 $13.50 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170Mhz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Gain: 15dBi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 2.5M Weight: 119

Frequency Range(MHz) 850-960/1710-2170MHz
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 15dbi
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization Type: Vertical
Antenna Length(mm): 430
Cable Length(m): 2.5M
Cable Type: RG174 default
Connector Type: RP SMA male straight as default or customized

Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Mounting: Magnetic
Housing: Black
Weight:119g
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
