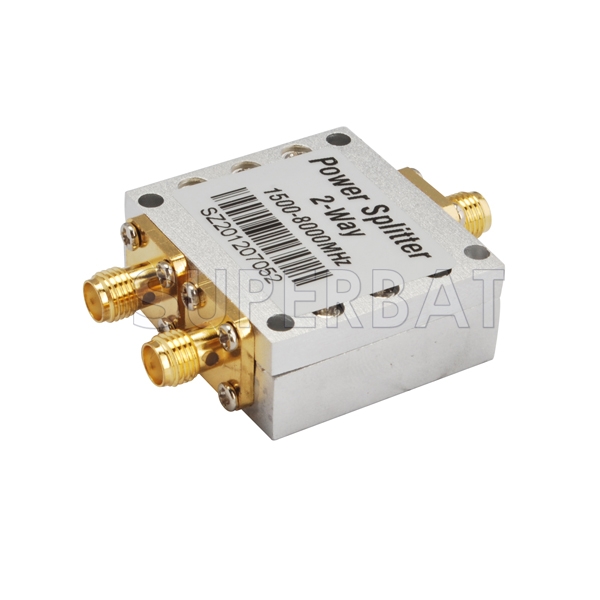

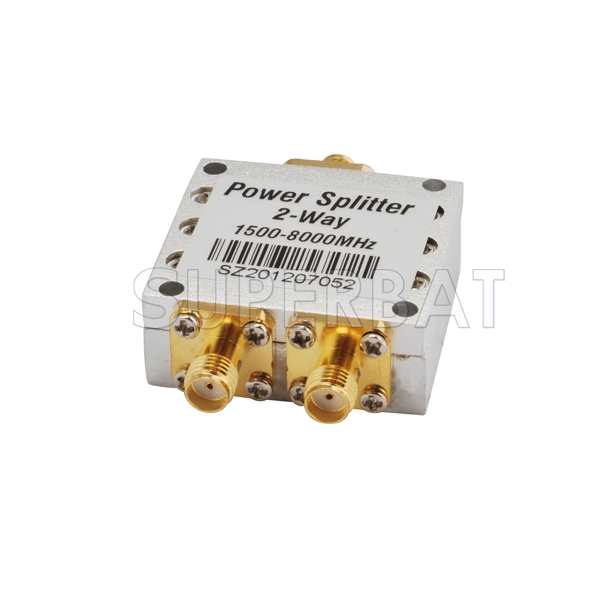

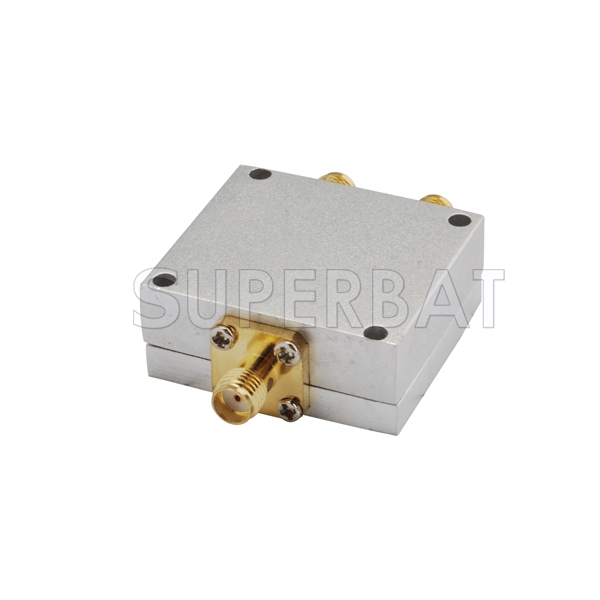

1500-8000MHz 2-way Power Divider SMA female connector
Unit Price: $38.00
sku:PD-2626
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $38.00 $32.68 $29.64 $26.60 ASK
saving% 0% 14% 22% 30% -
Real Time Availability
Stock: 9999
Quantity: Units

1500-8000MHz 2-way Power Divider SMA female connector

Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.



ELECTRICAL SPECIFICATIONS:
type: 2-way Power Divider
Frequency: 1500 ~ 8000MHz
Insertion loss(distribution ratio)-db:<=0.5DB
Isolation(dB): ≤18
Nominal Impedance(Ω): 50

Amplitude Balance :± 0.2dB
VSWR :1:1.3
Max. Power(MAX)(W) :50
connector :SMA female



Mechanical Characteristics:
Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Weight:40g
PS. Power splitter box body surface polishing
