Belden original cables and connectors

Supports 12Gbit/s and 4K 60 fps transmission

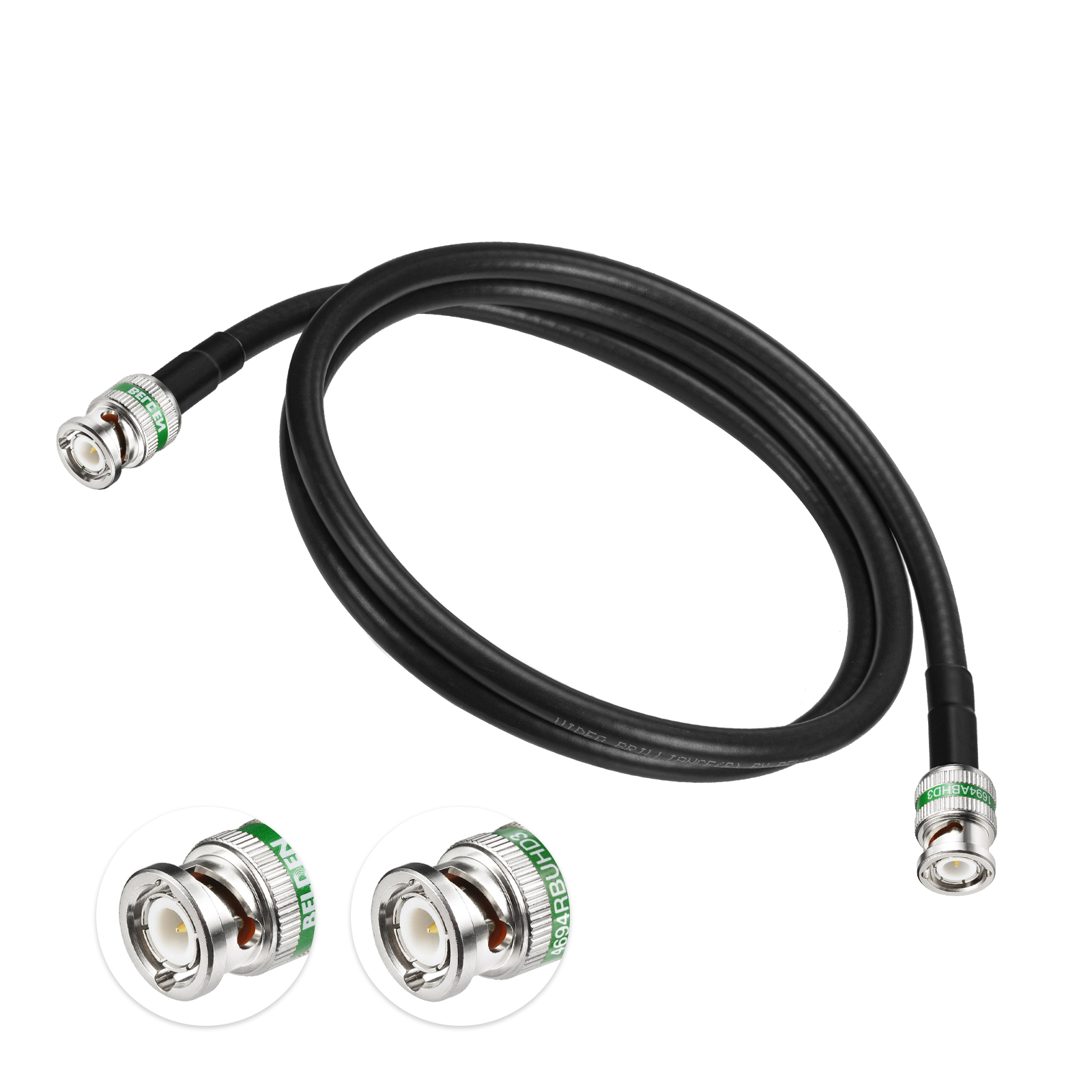

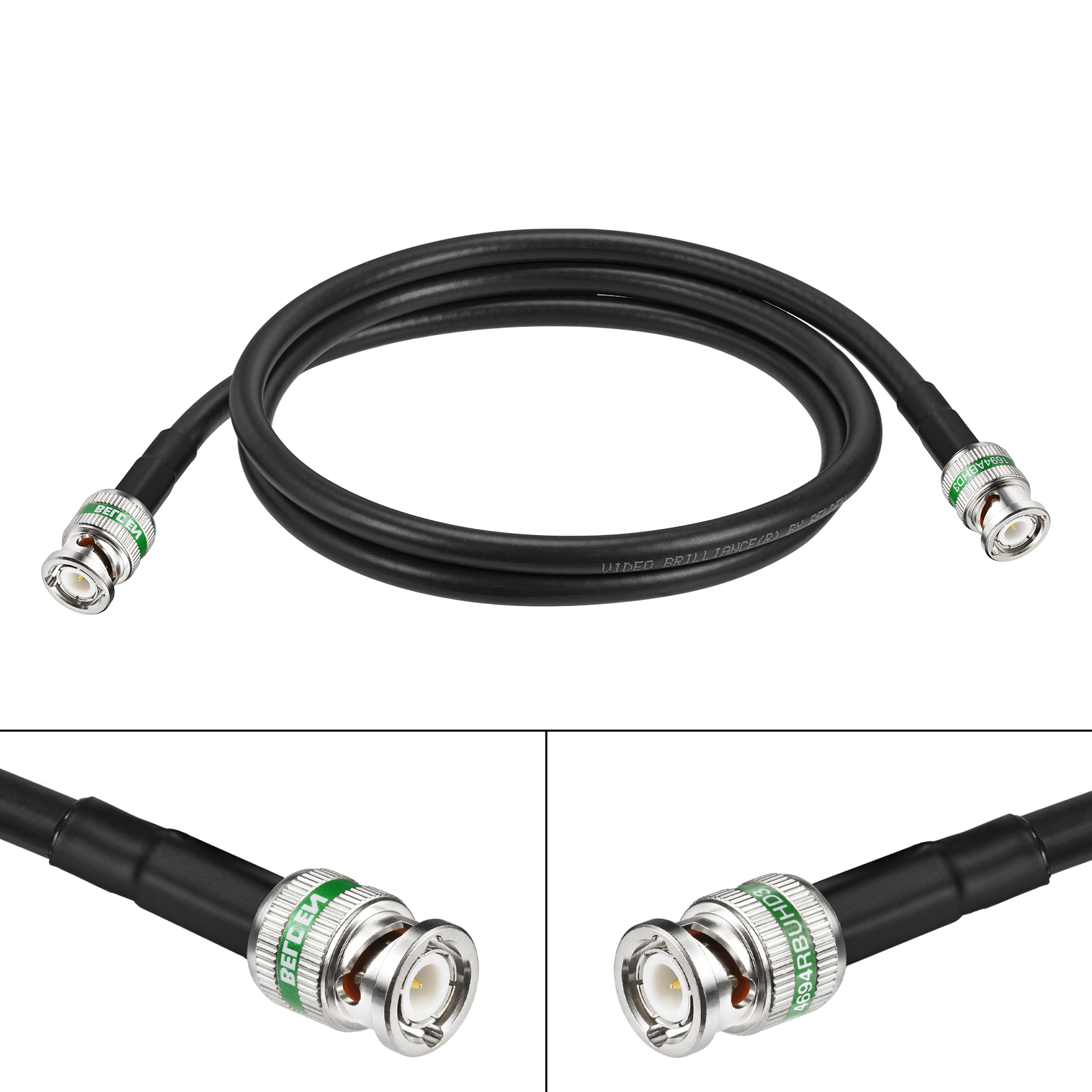

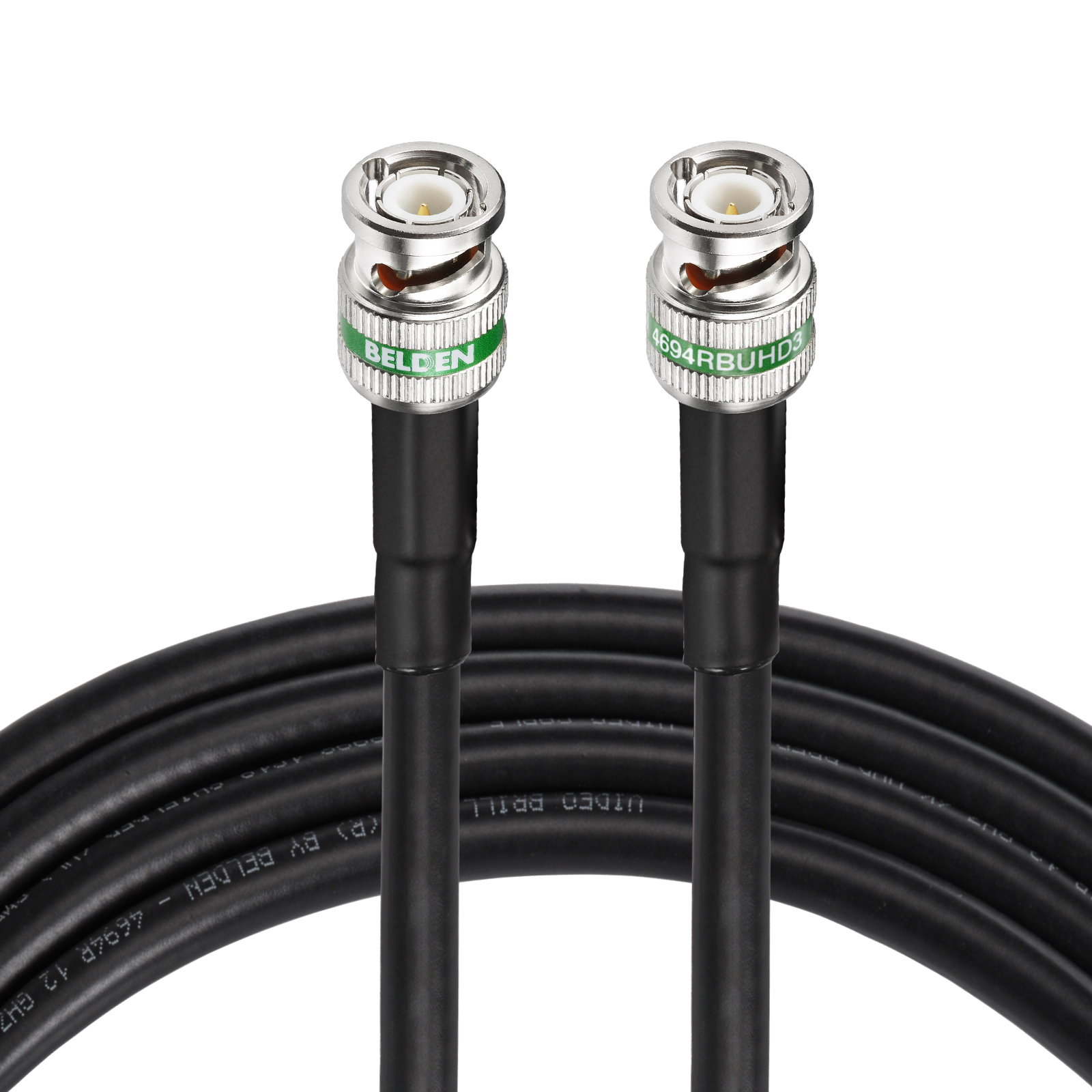

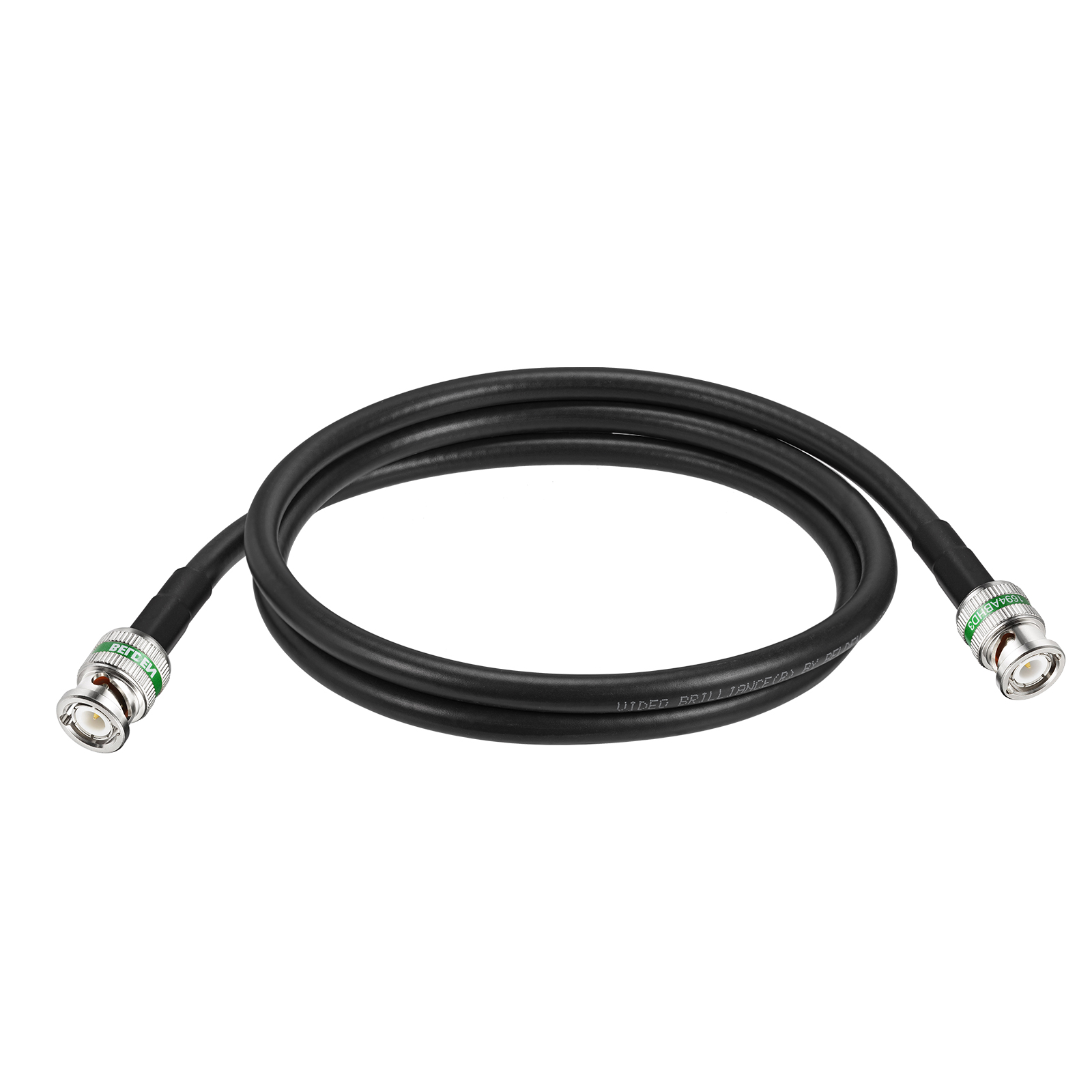

3G/6G/12G SDI Cable BNC Male to BNC Male  Digital Video Cable(Belden 4694R)

Features and Specifications:

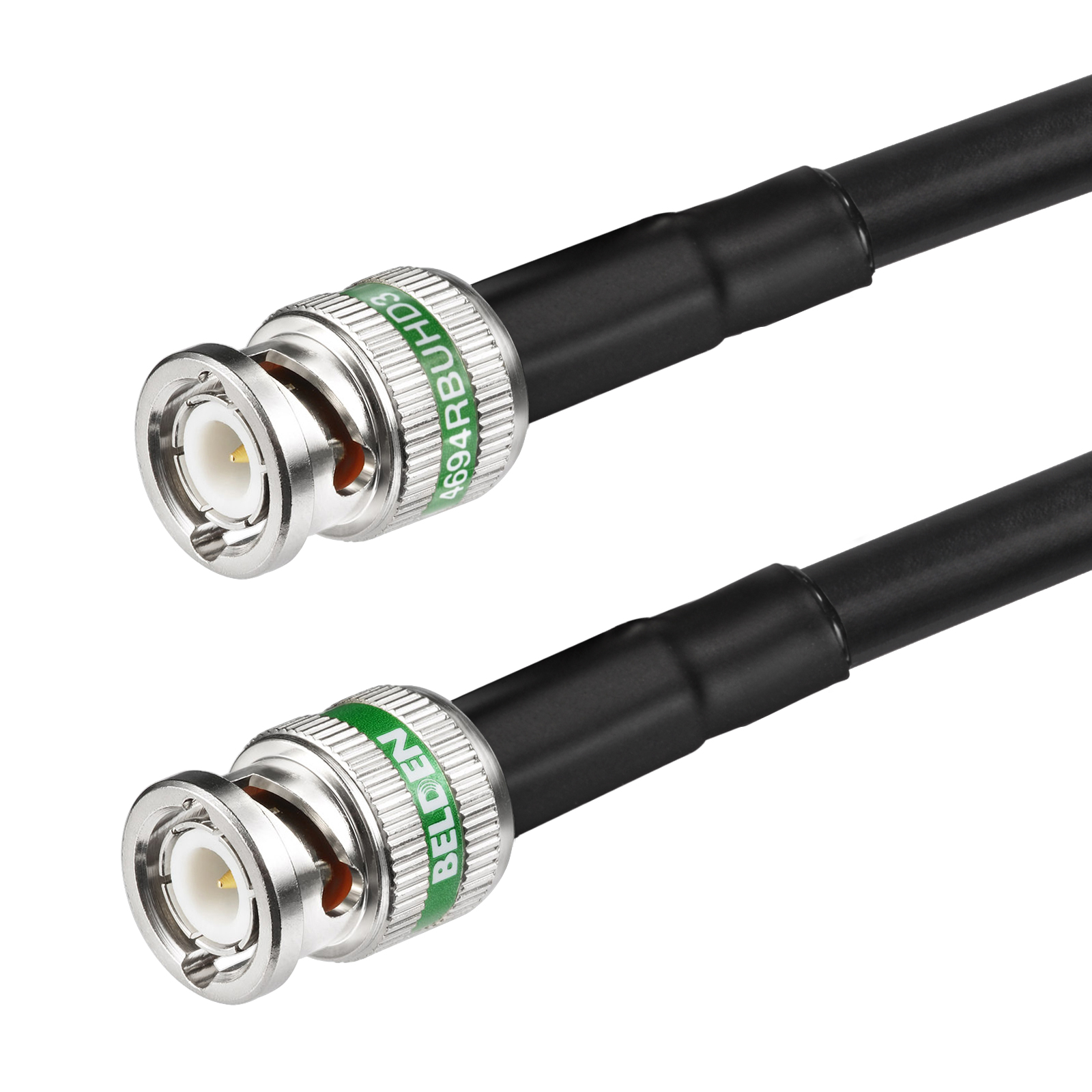

Belden BNC male to male connector

Impedance: 75 Ohm

Cable Type: Belden 4694R

Cable Length: 10 Feet （3.048 Meter）

Nominal impedance: 75 ohms-ideal - for audio and video

Velocity of propagation: 84.5%

Capacitance: 52.168 pF/ft.

Nominal attenuation: 0.755dB/100m. @ 1 MHz

Overall diameter: 0.274".

Serial Digital Data Rates

Standard Definition SD-SDI (270 Mbps, ST 259)

HD standard HD-SDI (1.483 Gbps, ST 292)

3G-SDI (2.97 Gbps, ST 424)

6G-SDI (5.94 Gbps, ST 2081)

12G-SDI (11.88 Gbps, ST 2082)
