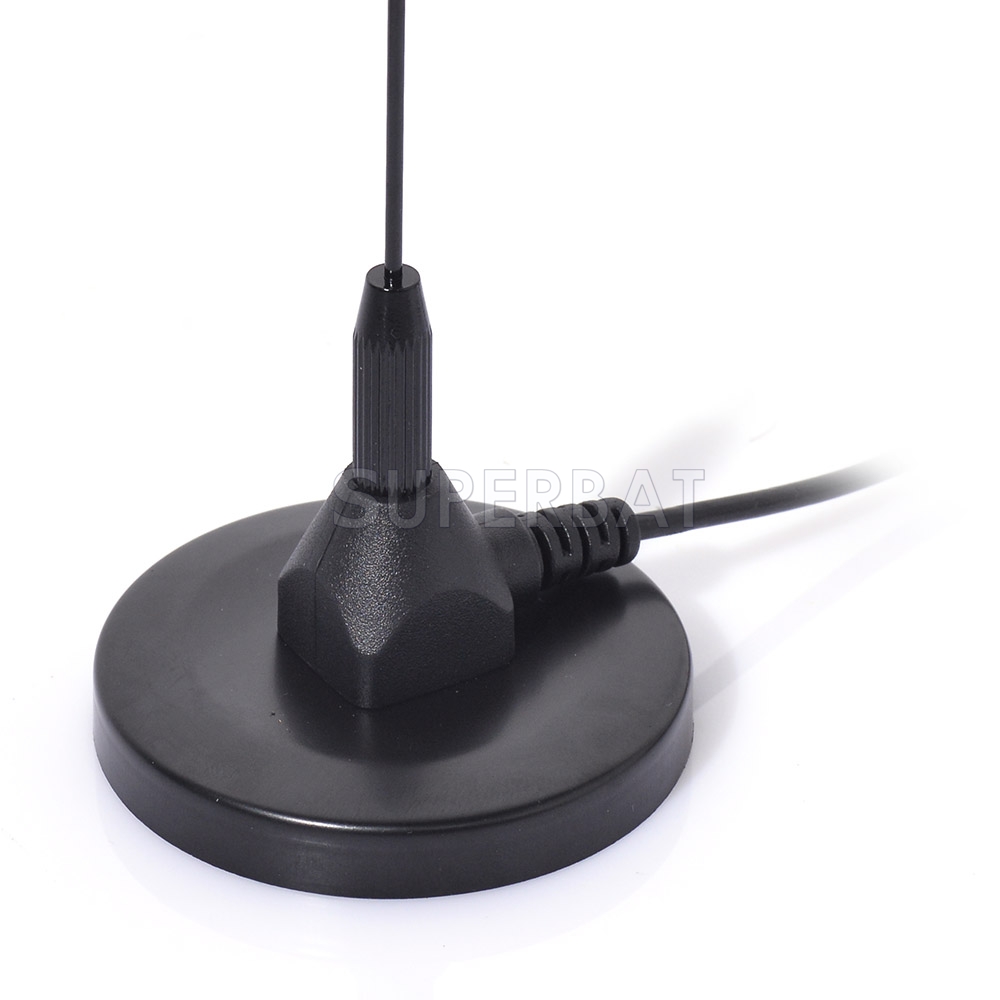

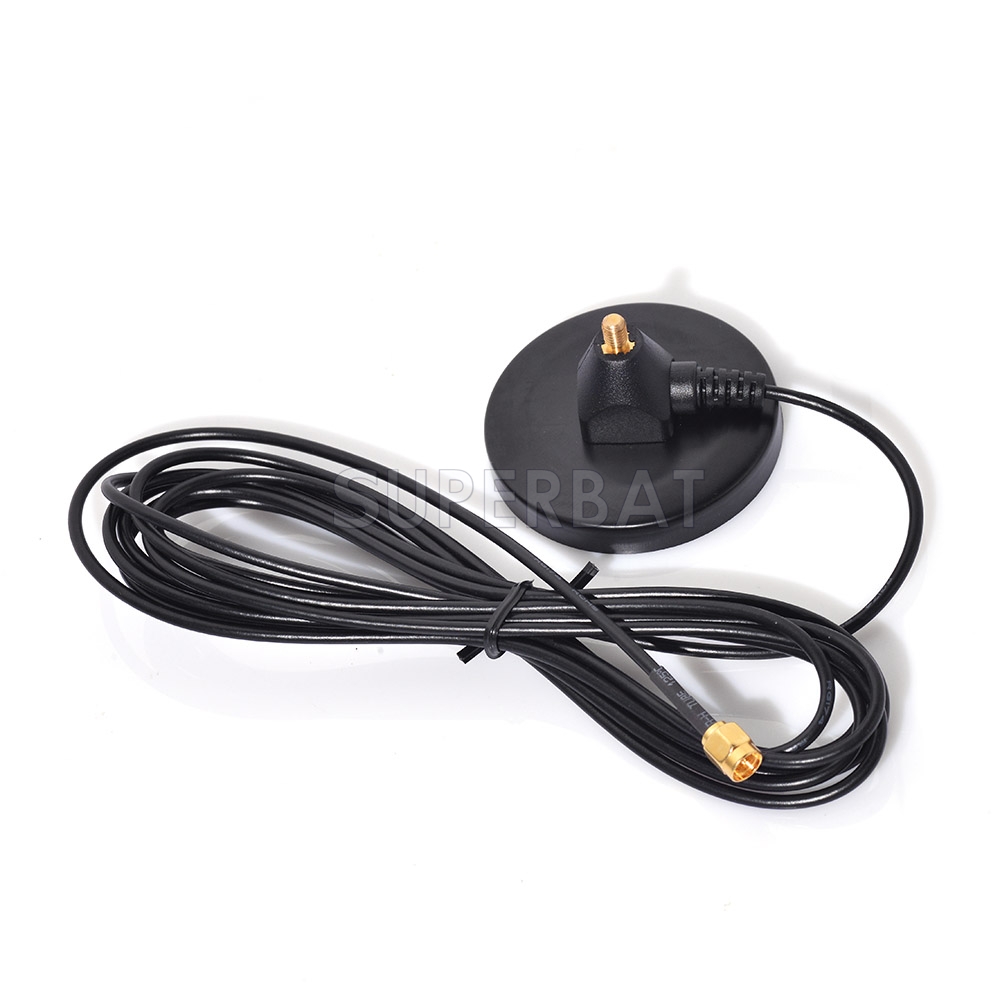

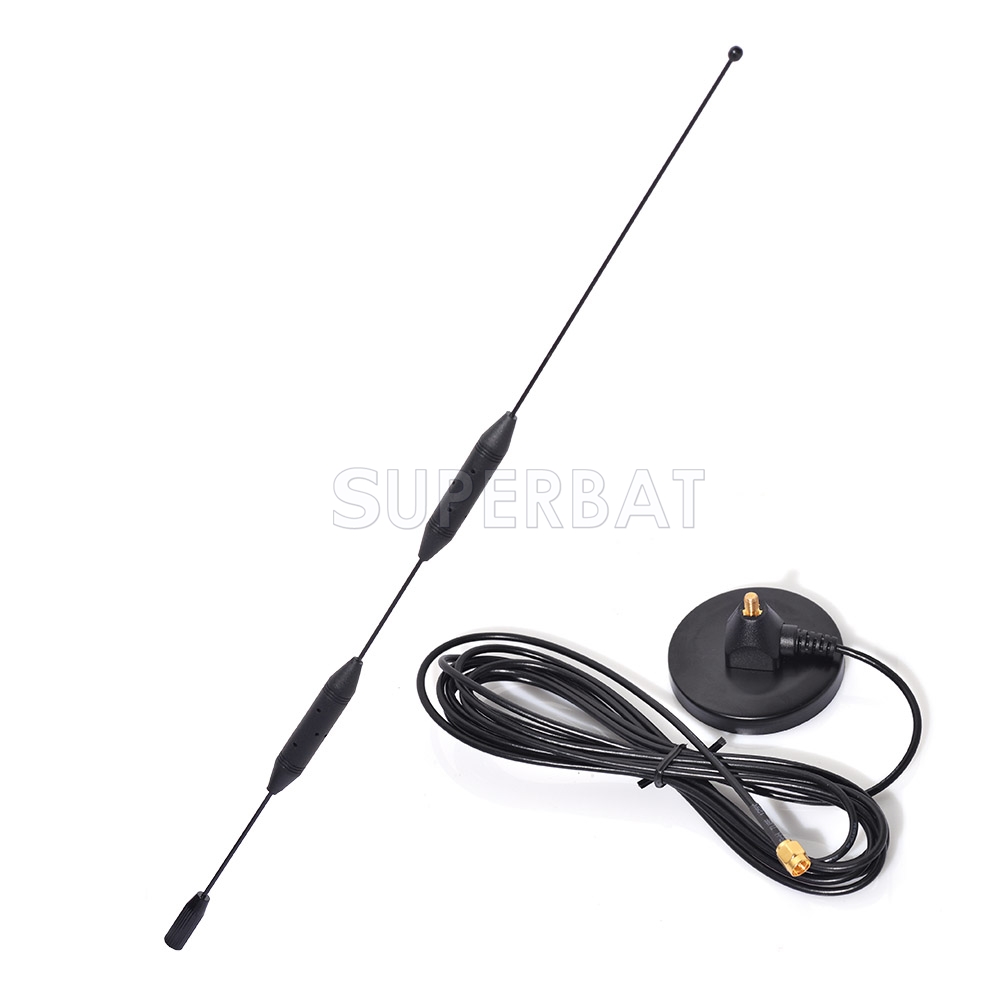

11dBi 3G Antenna with Magnetic base for 3G USB Modem
Unit Price: $18.24
sku:3A1-2158-S01SP-110-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $18.24 $17.33 $16.42 $15.50 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 11dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3M Weight: 184g

Specification:


GSM/GPRS/EDGE 850/900/1800/1900/2100
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz


Gain: 11 dBi


VSWR: ≤2


Horizontal Beamwidth: 360°


Vertical Beamwidth: 42°


Max power: 50 W


Nominal Impedance: 50 Ω

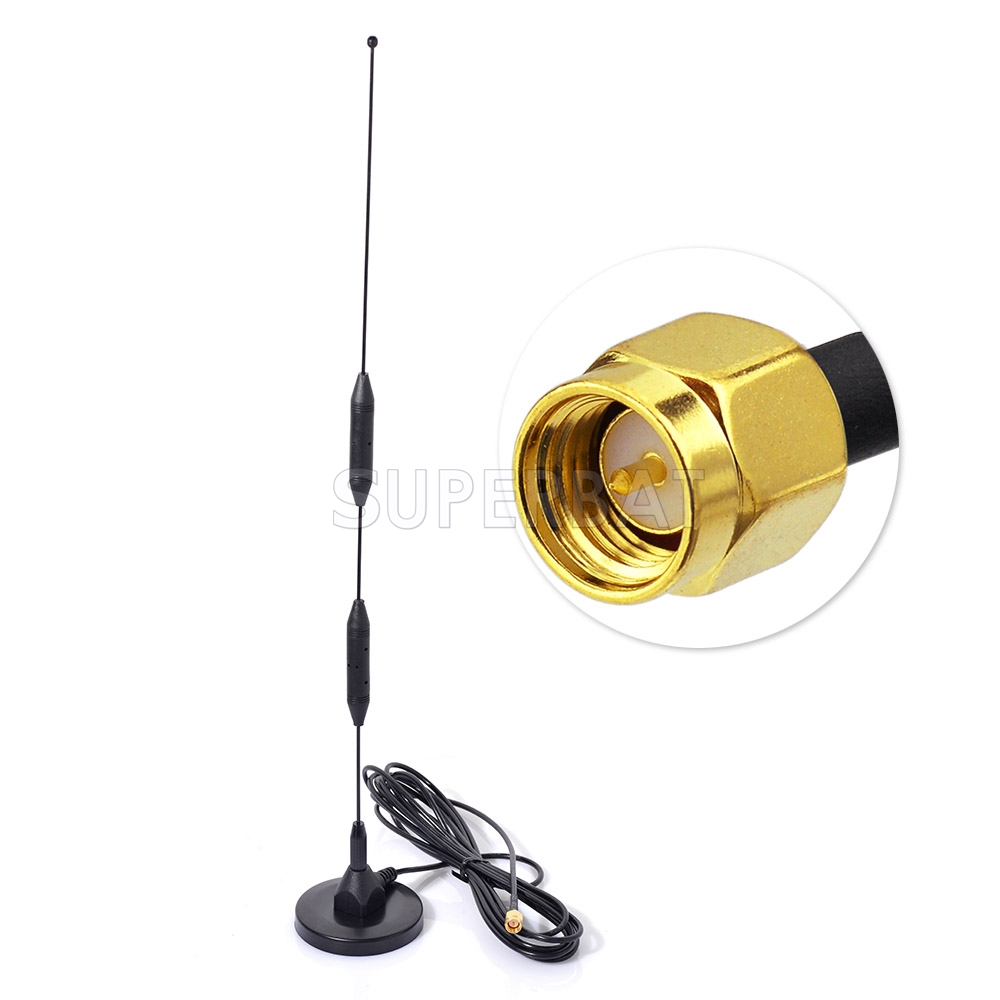

Connector : SMA male straight as default,

Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!


Extended Cable :RG174 Cable



Cable length: 3M


Weight:0.184 KG


Polarization :Vertical


Radiation :Omni -directional


Size:60*400mm


Mount Magnetic antenna base


This antenna can be used indoor and outdoor,and can be put on the Metal place.
