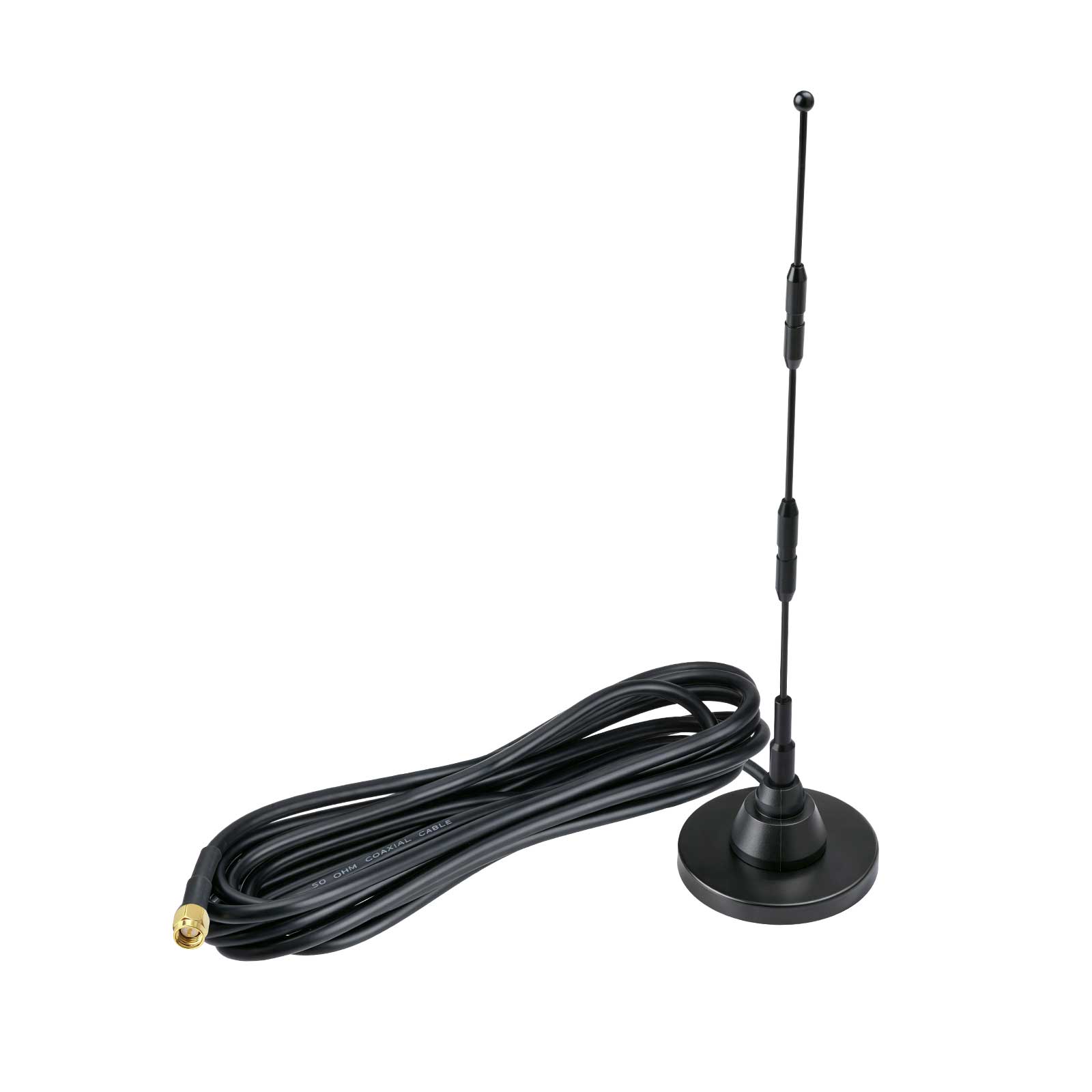

Product Type: 4G LTE Magnetic Base Omnidirectional Antenna

Frequency Range: 700–2700 MHz

Gain: 6 dBi

Polarization: Vertical

Impedance: 50Ω

VSWR: ≤ 1.5

Power Capacity: 50W

Radiation Pattern: 360° Omnidirectional

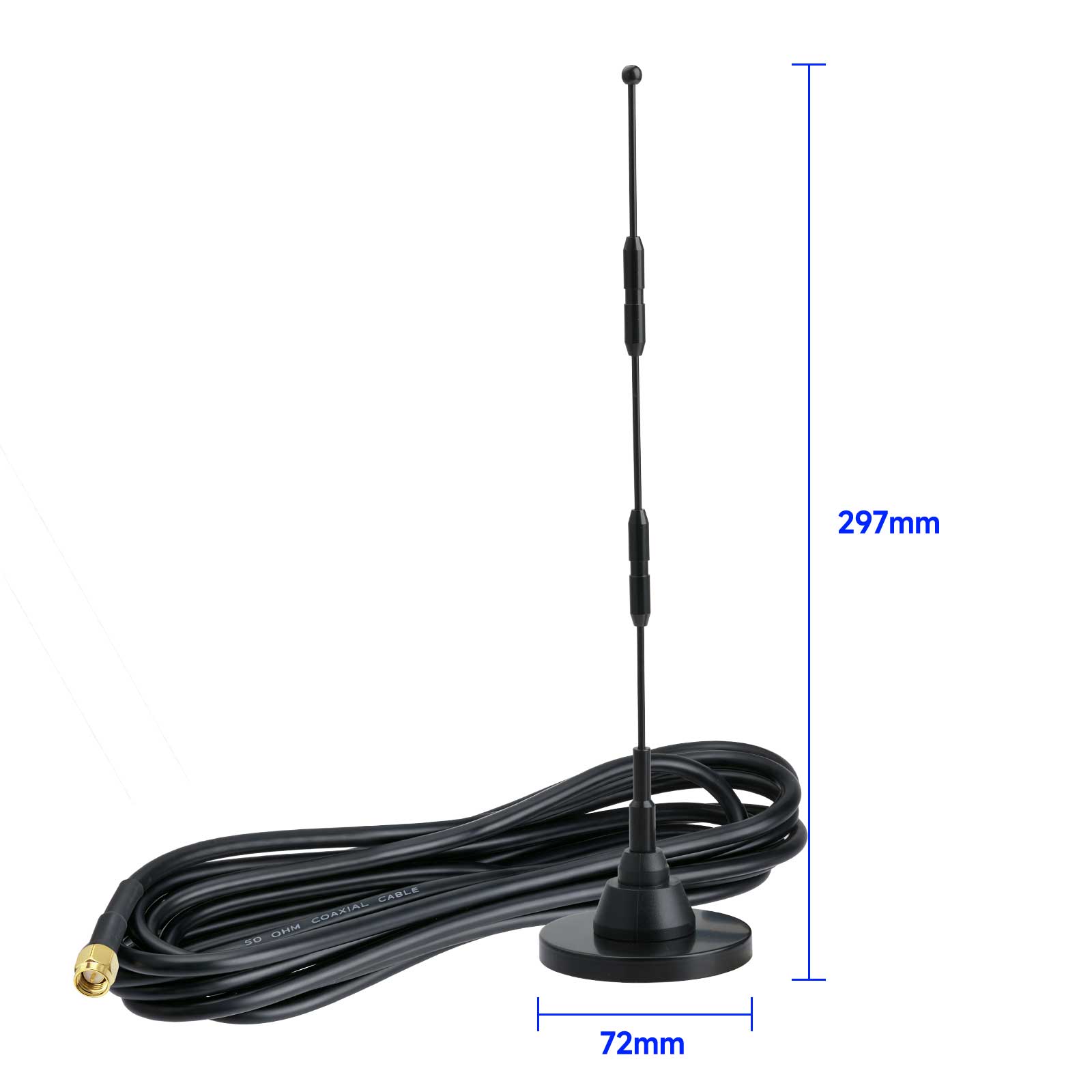

Antenna Height: 297mm

Base Diameter: Ø72mm

Housing Material: ABS

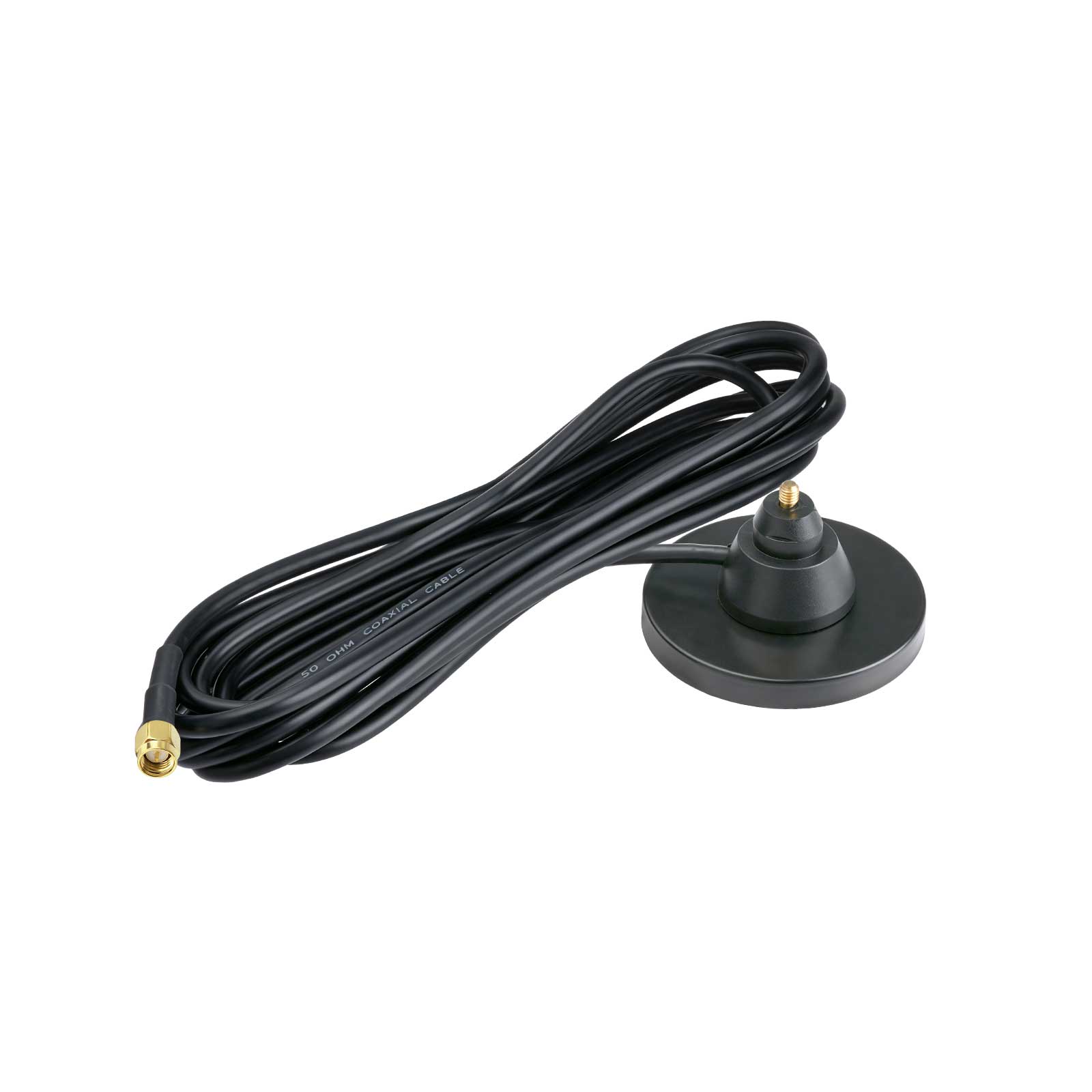

Base Type: Magnetic

Cable Type: RG58

Cable Length: 3m

Connector: SMA Male (Center Pin)

Antenna Color: Black

Operating Temperature: -40°C ~ +85°C

Storage Temperature: -40°C ~ +85°C

Application: Receive and transmit universal

Product Features

700–2700MHz broadband 4G LTE coverage

6dBi gain with 360° omnidirectional pattern

VSWR ≤ 1.5, 50Ω impedance for efficient transmission

Ø72mm strong magnetic base, tool-free installation

3m RG58 coaxial cable with SMA male connector

High-impact ABS housing, lightweight design

50W power capacity, receive/transmit universal

Wide temperature tolerance: -40°C to +85°C

Simple installation — mount and connect, no aiming required

Applications

4G LTE cellular router and modem antenna upgrade

Mobile hotspot and MIFI signal enhancement

Vehicle connectivity (car, truck, RV, van, boat)

M2M and IoT gateway antenna

Fleet management and vehicle tracking

Office, home and rural 4G signal improvement

Industrial 4G data terminal and remote monitoring

Package Contents

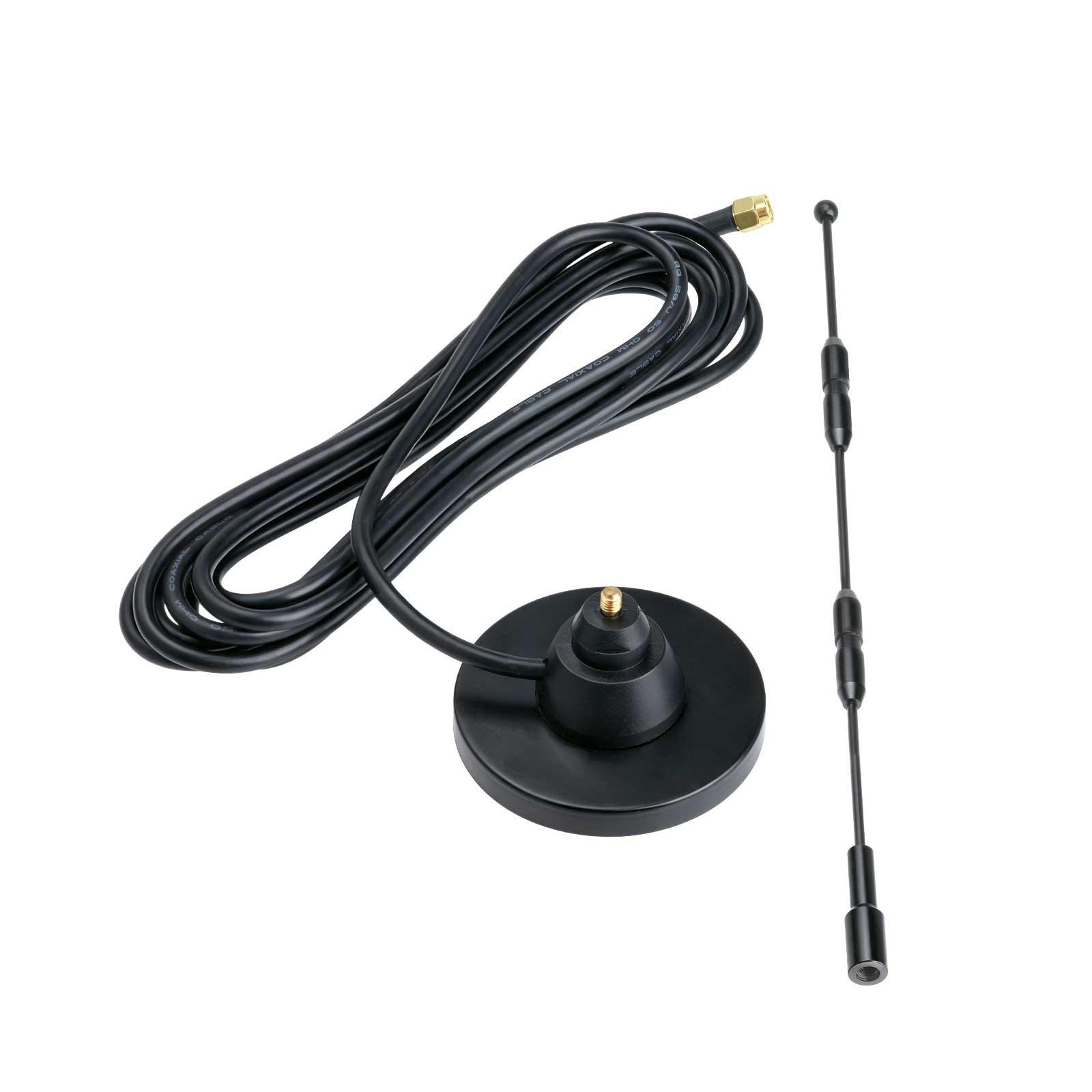

1 × 4G LTE Magnetic Base Antenna (6dBi, SMA Male, 3m RG58 Cable)
